-40℃~ 85℃

dv-pc系列

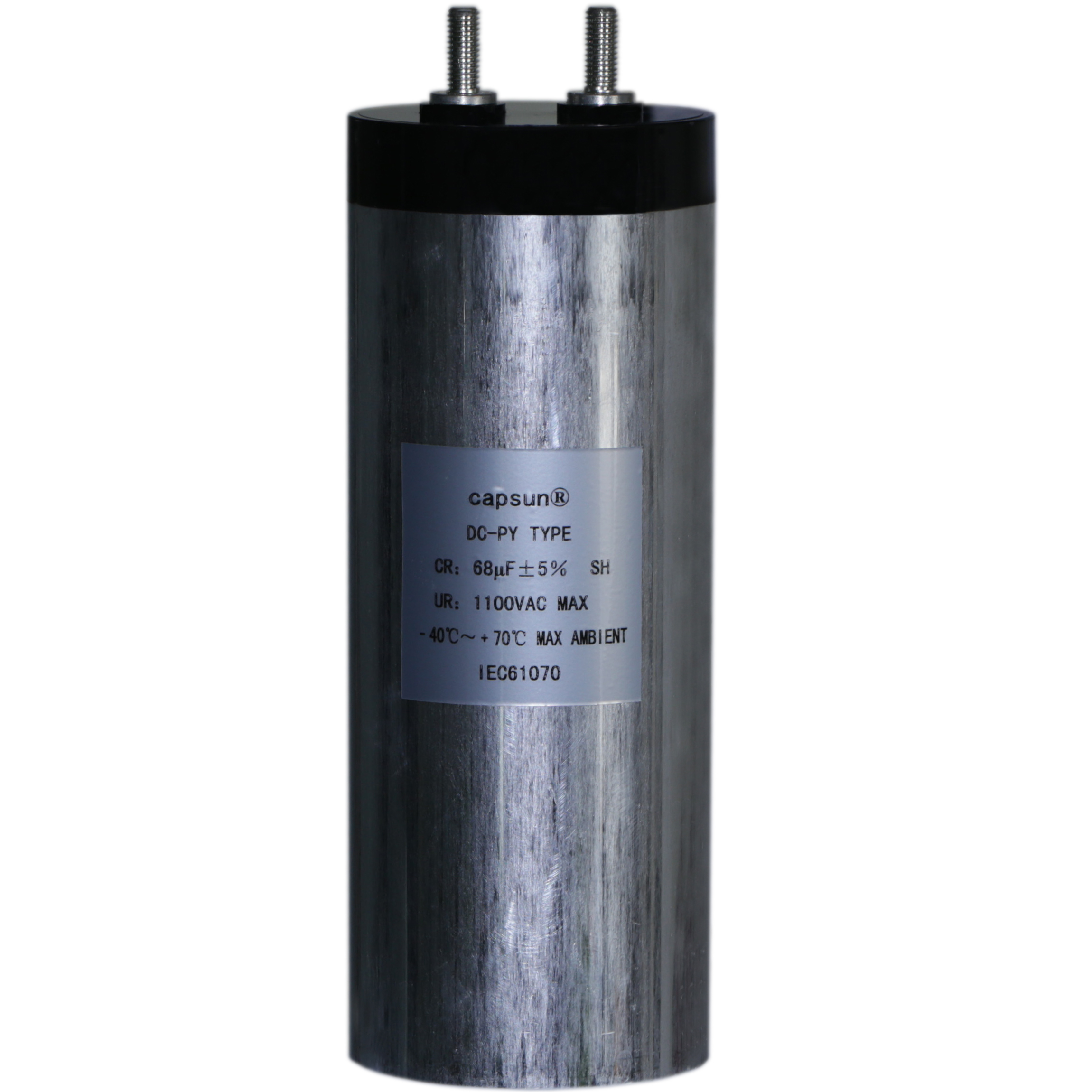

金属化薄膜光伏直流滤波电容器
◆产品特点:
     ●铝圆外壳封装，干式环氧树脂灌注；
     ●铜螺母/螺杆引出，塑料定位盖绝缘，安装简单方便；
     ●容量大，体积小。
     ●耐高压，具有自愈性；
     ●高纹波电流，高dv/dt承受能力。

◆应用:
   ●广泛应用于dc-link电路中,作滤波储能用。
   ●能代替，性能更优，寿命更长。
   ●风能发电变流器，光伏发电用逆变器；各种变频器；电动汽车及混合动力车；
     电焊机，开关电源，感应加热设备等直流母线滤波场合。


◆典型线路图：




过电压	1.1un(30% of on-load-dur.)	系统调整
	1.15un(30min/day)
	1.2un(5min/day)
	1.3un(1min/day)	系统切换
	1.5un(100ms every time,1000times during the lifetime)


◆性能参数

项目	特性
工作温度范围	-40℃~ 85℃
容量范围	100 ~30000uf
定电压范围	450v.dc~2000v.dc
静电容量容许差	± 5%（j）； ± 10%（k）；                                      20℃/120hz
耐电压	vt-t	1.5un dc/60s
	vt-c	1000 2*un/√2(min2000)v.ac)60s
损耗角正切	（tanδ）≤0.003    f=100hz
	介质损耗（tanδ）≤0.002
绝缘电阻	rs*c≥5000s  (at20℃ 100v.dc 60s)
耐脉冲电流冲击	dv/dt≥20v/μs (max)
有效电流	30a~120a
阻燃性	ul94v-0
引用标准	iec61071;iec61881;gb/t17702;cre企业标准
高海拔使用高度	2000m
预期寿命	100000hours (un,θmax(hotspot≤70℃)


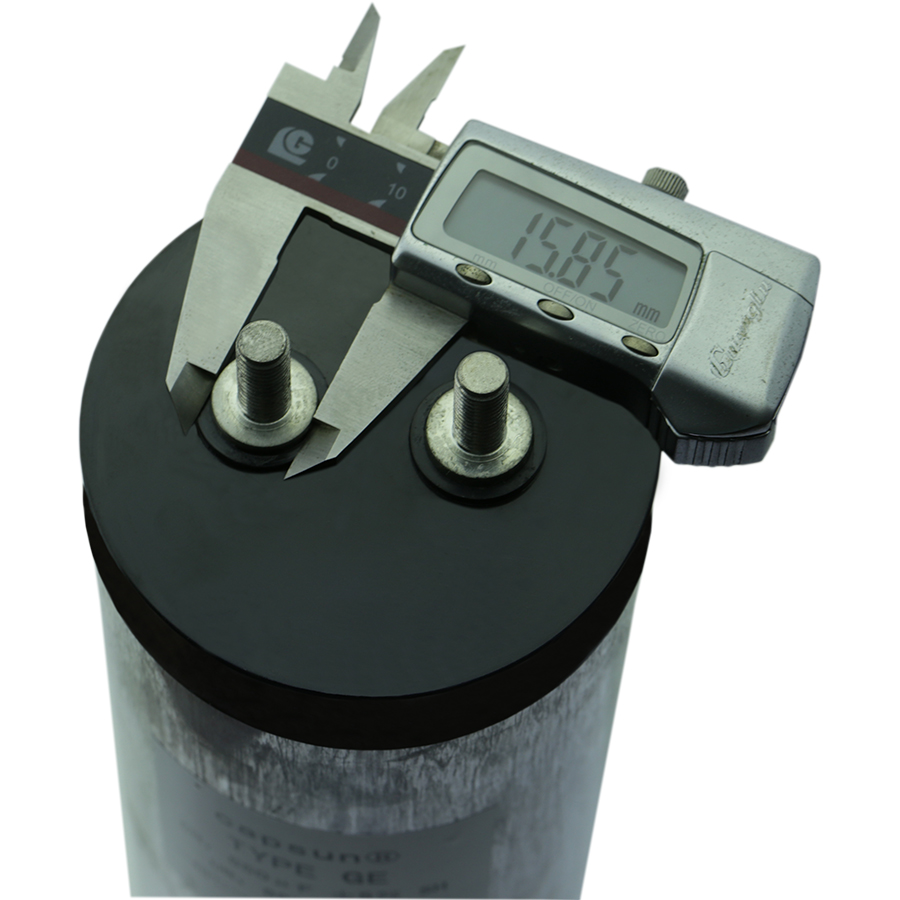

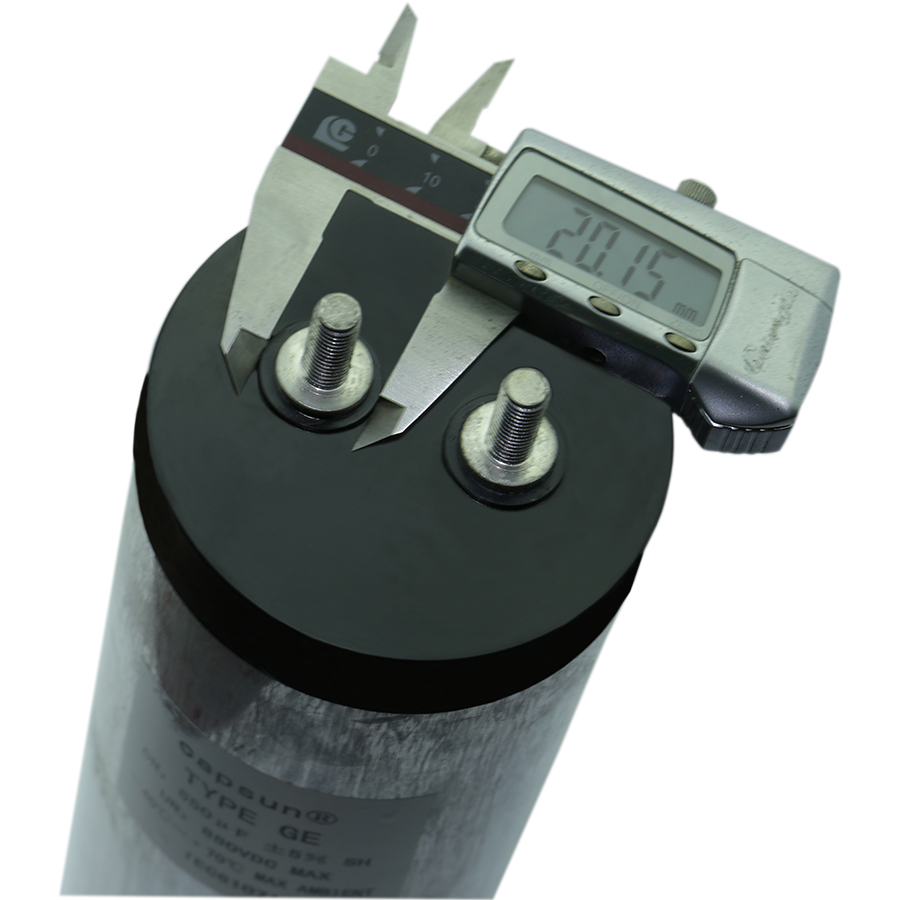

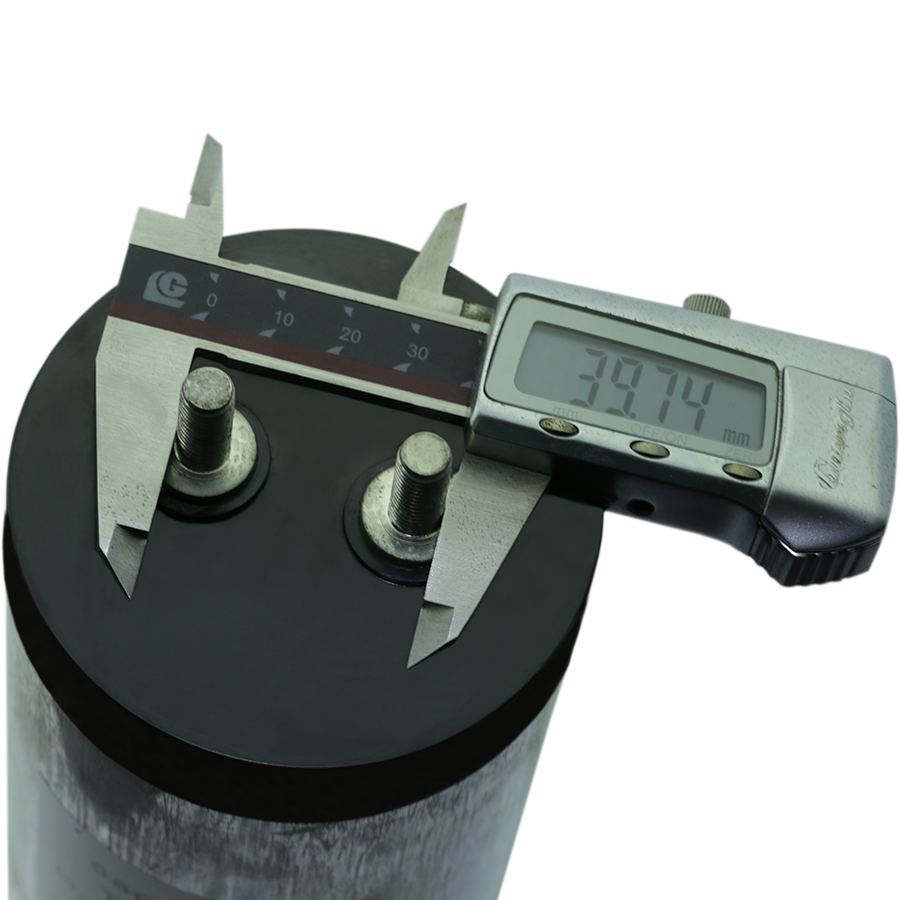

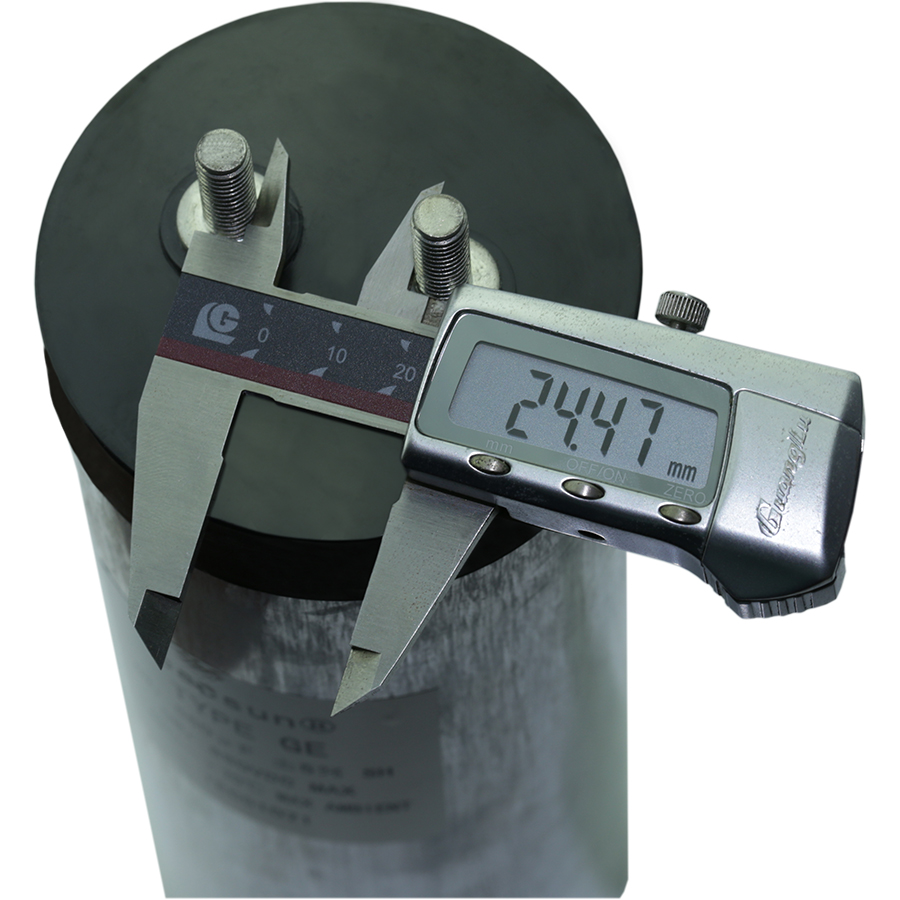

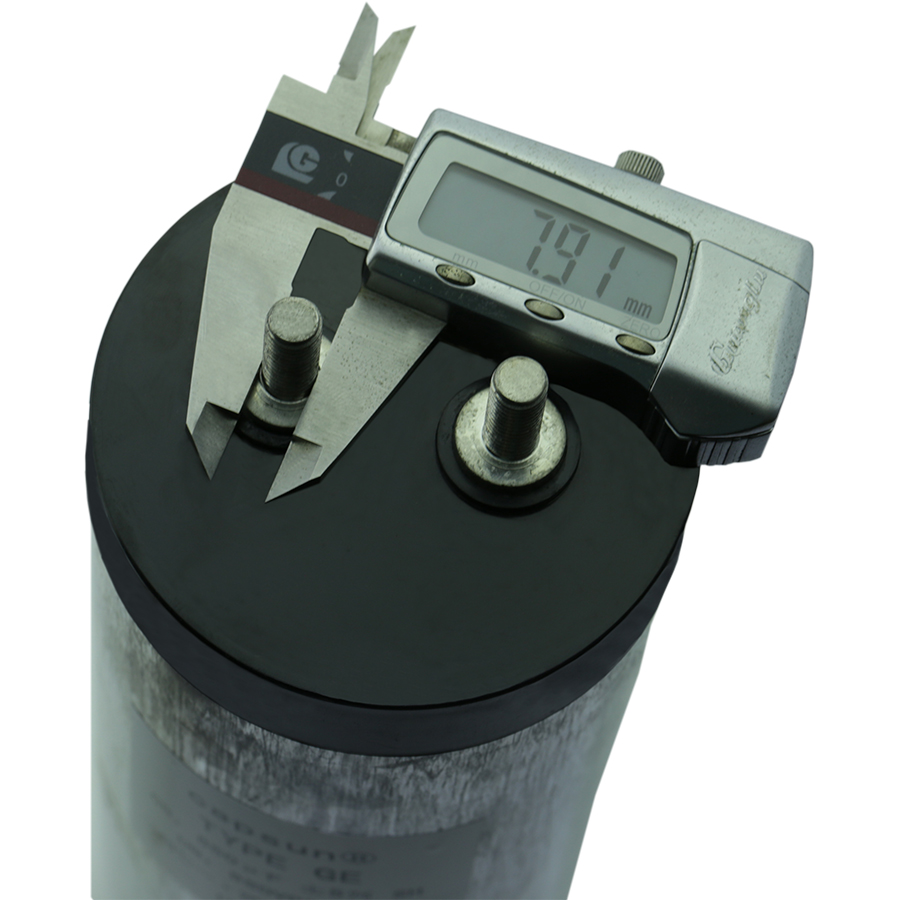

   ◆外形图:


   specification un  450v. dc


dc-pv
un 450v.dc
cn (µf)	part number	φd (mm)	h (mm)	esl (nh)	dv/dt (v/µs)	lp (ka)	ls (ka)	lrms (a)	esr (mω)	rth (k/w)	p (mm)	weight (kg)
200	dc-pv451m6201me80	76	80	40	15	3.0	9.0	50	4	1.5	32	0.5
400	dc-pv451m6401med0	76	130	45	15	6.0	18.0	65	2.5	1.4	32	0.75
520	dc-pv451m6521mfd0	86	130	45	15	7.8	23.4	65	2.4	1.5	32	1.1
600	dc-pv451m6601mei0	76	180	60	12	7.2	21.6	60	1.9	2.2	32	0.95
660	dc-pv451m6661mgd0	96	130	45	15	9.9	29.7	70	1.7	1.8	45	1.2
670	dc-pv451m6671mfe5	86	145	50	15	10.1	30.2	50	1.8	3.3	32	1.2
800	dc-pv451m6801mfi0	86	180	60	10	8.0	24.0	70	2.9	1.1	32	1.45
840	dc-pv451m6840mge5	96	145	50	10	8.4	25.2	60	2.8	1.5	45	1.25
1000	dc-pv451m6102mgi0	96	180	60	10	10.0	30.0	85	1.8	1.2	45	1.5



specification un  700v. dc


un 700v.dc
cn (µf)	part number	φd (mm)	h (mm)	esl (nh)	dv/dt (v/µs)	lp (ka)	ls (ka)	lrms (a)	esr (mω)	rth (k/w)	p (mm)	weight (kg)
400	dc-pv701m6n401med0	76	130	45	12	4.8	14.4	60	2.8	1.5	32	0.75
420	dc-pv701m6n421mec5	76	125	50	10	4.2	12.6	35	3.2	3.8	32	0.7
510	dc-pv701m6n511mee5	76	145	50	10	5.1	15.3	35	3.5	3.5	32	0.82
520	dc-pv701m6n521mfd0	86	130	45	12	6.2	18.7	65	2.7	1.3	32	1.1
550	dc-pv701m6n551mfc5	86	125	50	10	5.5	16.5	40	3	3.1	32	1.05
600	dc-pv701m6n601mei0	76	180	60	10	6.0	18.0	60	2.2	1.9	32	0.95
640	dc-pv701m6n641mff0	86	150	45	10	6.4	19.2	60	2.5	1.7	32	1.2
660	dc-pv701m6n661mgd0	96	130	45	12	7.9	23.8	70	2.1	1.5	45	1.2
670	dc-pv701m6n671mfe5	86	145	50	12	8.0	24.1	40	2	4.7	32	1.2
700	dc-pv701m6n701mgc5	96	125	50	8	5.6	16.8	55	1.8	2.8	45	1.1
800	dc-pv701m6n801mfi0	86	180	60	8	6.4	19.2	70	3.2	1.0	32	1.45
840	dc-pv701m6n841mge5	96	145	50	8	6.7	20.2	50	3.1	1.9	45	1.25
1000	dc-pv701m6n102mgi0	96	180	60	8	8.0	24.0	75	2..2	1.2	45	1.5
1000	dc-pv701m6n102mhd0	116	130	45	8	8.0	24.0	50	1.8	3.3	50	1.6
1300	dc-pv701m6n132mgo0	96	230	70	5	6.5	19.5	75	1.5	1.8	45	1.9
1450	dc-pv701m6n142mhi0	116	180	60	5	7.3	21.8	80	1	2.3	50	2.4
2000	dc-pv701m6n202mho0	116	230	80	5	10.0	30.0	80	0.9	2.6	50	3
2000	dc-pv701m6n202mii0	136	180	60	3	6.0	18.0	100	0.75	2.0	50	3.1
2750	dc-pv701m6n272mio0	136	230	70	3	8.3	24.8	100	0.8	1.9	50	3.9



specification un  900v. dc


un 900v.dc
cn (µf)	part number	φd (mm)	h (mm)	esl (nh)	dv/dt (v/µs)	lp (ka)	ls (ka)	lrms (a)	esr (mω)	rth (k/w)	p (mm)	weight (kg)
350	dc-pv901m6n351mec5	76	125	50	15	5.3	15.8	35	3.2	3.8	32	0.7
480	dc-pv901m6n481mfd0	86	130	45	12	5.8	17.3	55	2.7	1.8	32	1.1
550	dc-pv901m6n551mgd0	96	130	45	12	6.6	19.8	65	2.1	1.7	45	1.2
600	dc-pv901m6n601mff0	86	150	45	10	6.0	18.0	55	2.5	2.0	32	1.2
680	dc-pv901m6n681mfi0	86	180	60	8	5.4	16.3	70	3.2	1.0	32	1.45
840	dc-pv901m6n841mgi0	96	180	60	8	6.7	20.2	75	2.2	1.2	45	1.5
850	dc-pv901m6n851mhd0	116	130	45	8	6.8	20.4	65	1.8	2.0	50	1.6
1100	dc-pv901m6n112mgo0	96	230	70	5	5.5	16.5	75	1.5	1.8	45	1.9
1300	dc-pv901m6n132mhi0	116	180	60	5	6.5	19.5	80	1	2.3	50	2.4
1650	dc-pv901m6n162mii0	136	180	60	5	8.3	24.8	100	0.75	2.0	50	3.1
2250	dc-pv01m6n222mio0	136	230	70	5	11.3	33.8	100	0.8	1.9	50	3.9


specification un  1100v. dc


un 1100v.dc
cn (µf)	part number	φd (mm)	h (mm)	esl (nh)	dv/dt (v/µs)	lp (ka)	ls (ka)	lrms (a)	esr (mω)	rth (k/w)	p (mm)	weight (kg)
125	dc-pv112m6n121me80	76	80	40	15	1.9	5.6	35	4.5	2.7	32	0.5
250	dc-pv112m6n251med0	76	130	45	15	3.8	11.3	60	2.8	1.5	32	0.75
275	dc-pv112m6n271mec5	76	125	50	12	3.3	9.9	35	3.2	3.8	32	0.7
300	dc-pv112m6n301mef0	76	150	45	15	4.5	13.5	60	3.8	1.1	32	0.85
320	dc-pv112m6n321mee5	76	145	50	12	3.8	11.5	35	3.6	3.4	32	0.82
330	dc-pv112m6n331mfd0	86	130	45	15	5.0	14.9	65	2.8	1.3	32	1.1
350	dc-pv112m6n351mfc5	86	125	50	12	4.2	12.6	40	3.1	3.0	32	1.05
380	dc-pv112m6n381mei0	76	180	60	12	4.6	13.7	60	2.4	1.7	32	0.95
410	dc-pv112m6n411mff0	86	150	45	12	4.9	14.8	60	2.7	1.5	32	1.2
420	dc-pv112m6n421mgd0	96	130	45	15	6.3	18.9	70	2.2	1.4	45	1.2
430	dc-pv112m6n431mfe5	86	145	50	15	6.5	19.4	40	2.1	4.5	32	1.2
450	dc-pv112m6n451mgc5	96	125	50	10	4.5	13.5	55	1.9	2.6	45	1.1
500	dc-pv112m6n501meo0	76	230	80	10	5.0	15.0	60	3.3	1.3	32	1.2
500	dc-pv112m6n501mfi0	89	180	60	10	5.0	15.0	70	3.3	0.9	32	1.45
520	dc-pv112m6n521mgf0	96	150	45	10	5.2	15.6	70	3.3	0.9	45	1.3
540	dc-pv112m6n541mge5	96	145	50	10	5.4	16.2	50	3.2	1.9	45	1.25
650	dc-pv112m6n651mfo0	86	230	80	10	6.5	19.5	65	2.5	1.4	32	1.8
650	dc-pv112m6n651mgi0	96	180	60	10	6.5	19.5	75	2.3	1.2	45	1.5
650	dc-pv112m6n651mhd0	116	130	45	10	6.5	19.5	50	1.8	3.3	50	1.6
750	dc-pv112m6n751mhf0	116	150	45	8	6.0	18.0	55	1.4	3.5	50	1.8
850	dc-pv112m6n851mgo0	96	230	70	8	6.8	20.4	75	1.6	1.7	45	1.9
950	dc-pv112m6n951mhi0	116	180	60	8	7.6	22.8	80	1.1	2.1	50	2.4
1200	dc-pv112m6n122mho0	116	230	80	8	9.6	28.8	80	1	2.3	50	3
1200	dc-pv112m6n122mii0	136	180	60	5	6.0	18.0	100	0.8	1.9	50	3.1
1500	dc-pv112m6n152mio0	136	230	70	5	7.5	22.5	100	0.9	1.7	50	3.9



specification un  2000v. dc



un 2000v.dc
cn (µf)	part number	φd (mm)	h (mm)	esl (nh)	dv/dt (v/µs)	lp (ka)	ls (ka)	lrms (a)	esr (mω)	rth (k/w)	p (mm)	weight (kg)
40	dc-pv202m6n40me80	76	80	40	20	0.8	2.4	30	4.5	3.7	32	0.5
80	dc-pv202m6n80med0	76	130	45	20	1.6	4.8	55	2.8	1.8	32	0.75
85	dc-pv202m6n85mec5	76	125	50	18	1.5	4.6	30	3.2	5.2	32	0.7
95	dc-pv202m6n95mef0	76	150	45	18	1.7	5.1	55	3.8	1.3	32	0.85
100	dc-pv202m6n101mee5	76	145	50	15	1.5	4.5	30	3.6	4.6	32	0.82
105	dc-pv202m6n101mfd0	86	130	45	18	1.9	5.7	60	2.8	1.5	32	1.1
110	dc-pv202m6n111mfc5	86	125	50	15	1.7	5.0	35	3.1	3.9	32	1.05
120	dc-pv202m6n121mei0	76	180	60	15	1.8	5.4	55	2.4	2.1	32	0.95
125	dc-pv202m6n121mff0	86	150	45	15	1.9	5.6	55	2.7	1.8	32	1.2
130	dc-pv202m6n131mgdo	96	130	45	18	2.3	7.0	65	2.2	1.6	45	1.2
135	dc-pv202m6n131mfe5	86	145	50	18	2.4	7.3	35	2.1	5.8	32	1.2
140	dc-pv202m6n141mgc5	96	125	50	12	1.7	5.0	50	1.9	3.2	45	1.1
160	dc-pv202m6n161meo0	76	230	80	12	1.9	5.8	60	3.3	1.3	32	1.2
160	dc-pv202m6n161mfi0	86	180	60	15	2.4	7.2	65	3.5	1.0	32	1.45
160	dc-pv202m6n161mgf0	96	150	45	12	1.9	5.8	65	3.3	1.1	45	1.3
170	dc-pv202m6n171mge5	96	145	50	12	2.0	6.1	45	3.3	2.2	45	1.25
200	dc-pv202m6n201mfo0	86	230	80	12	2.4	7.2	65	2.5	1.4	32	1.8
205	dc-pv202m6n201mgi0	96	180	60	12	2.5	7.4	75	2.4	1.1	45	1.5
205	dc-pv202m6n201mhd0	116	130	45	12	2.5	7.4	50	1.8	3.3	50	1.6
230	dc-pv202m6n231mhf0	116	150	45	10	2.3	6.9	55	1.5	3.3	50	1.8
260	dc-pv202m6n261mgo0	96	230	70	10	2.6	7.8	75	1.6	1.7	45	1.9
300	dc-pv202m6n301mhi0	116	180	60	10	3.0	9.0	80	1.2	2.0	50	2.4
400	dc-pv202m6n401mho0	116	230	80	10	4.0	12.0	80	1	2.3	50	3
375	dc-pv202m6n371mii0	136	180	60	7	2.6	7.9	100	0.9	1.7	50	3.1
500	dc-pv202m6n501mio0	136	230	70	7	3.5	10.5	100	0.95	1.6	50	3.9
620	dc-pv202m6n621miu0	136	295	80	7	4.3	13.0	100	0.9	1.7	50	5
