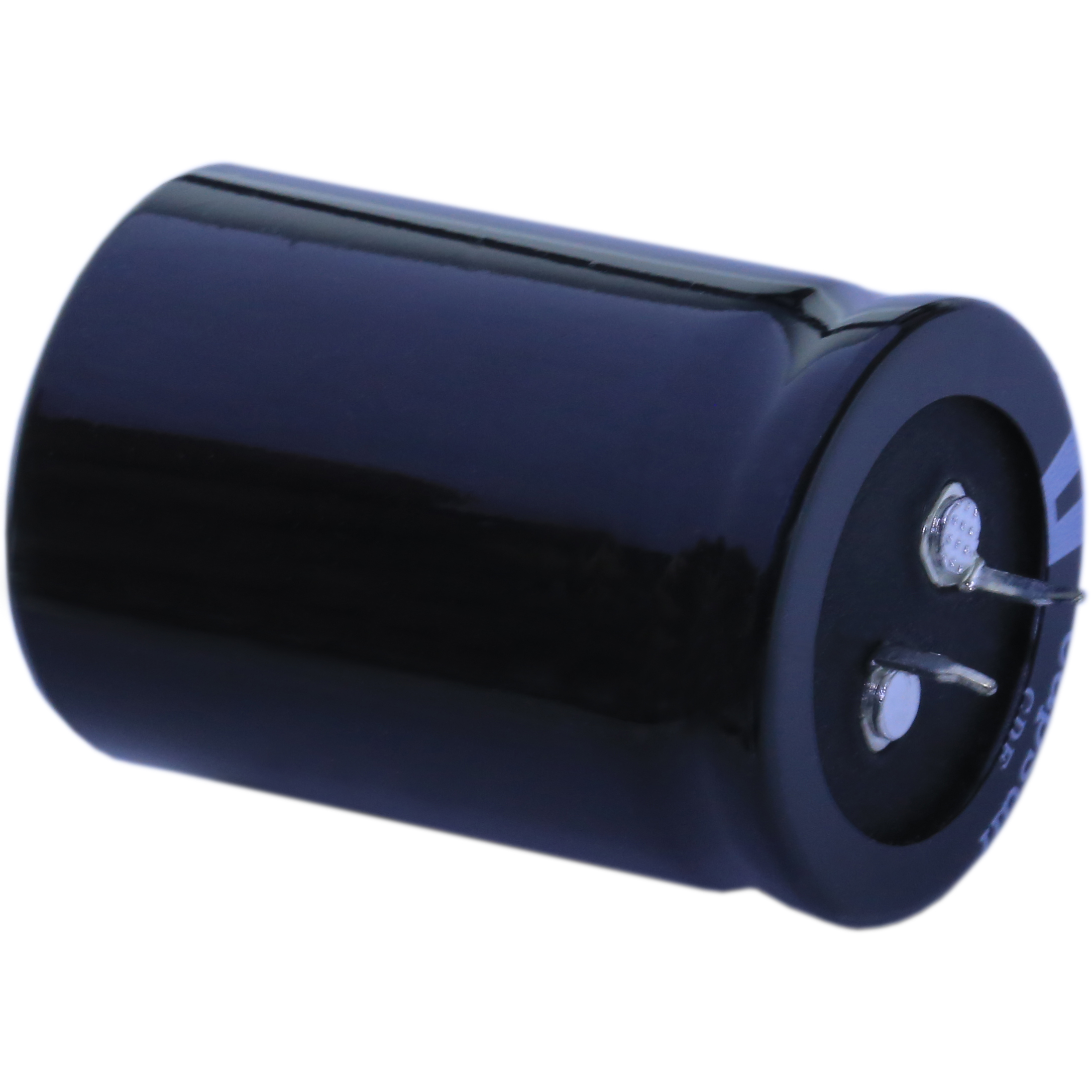

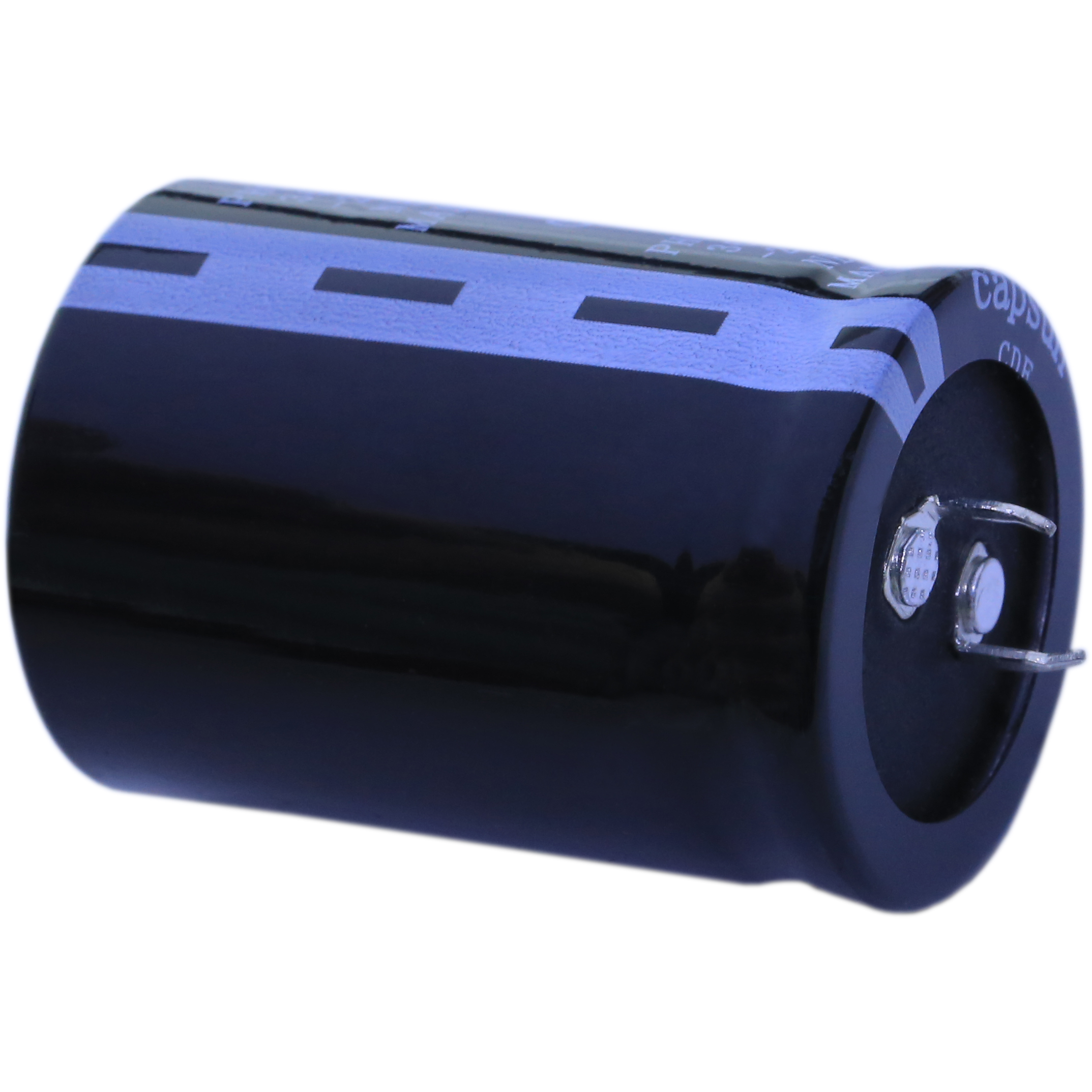

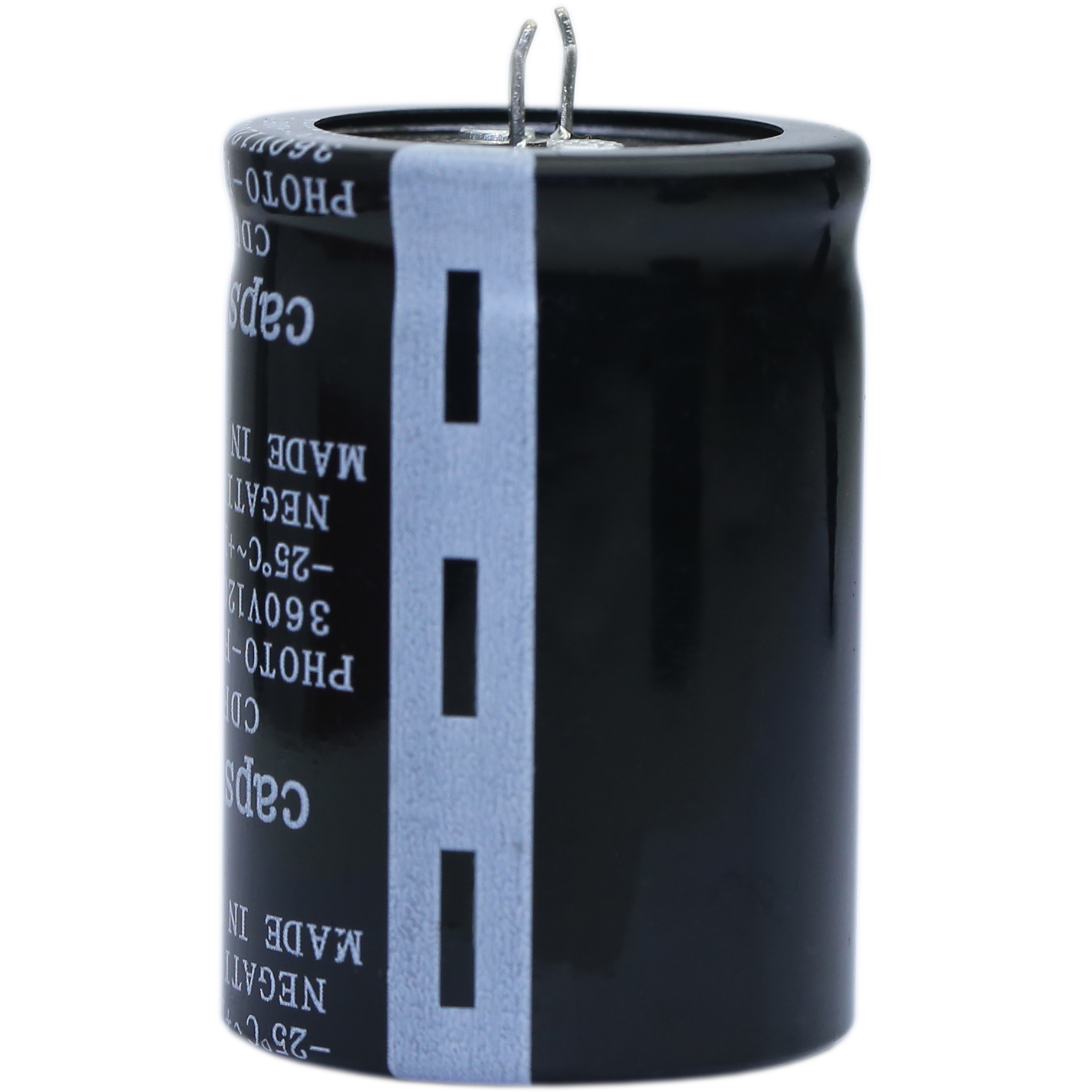

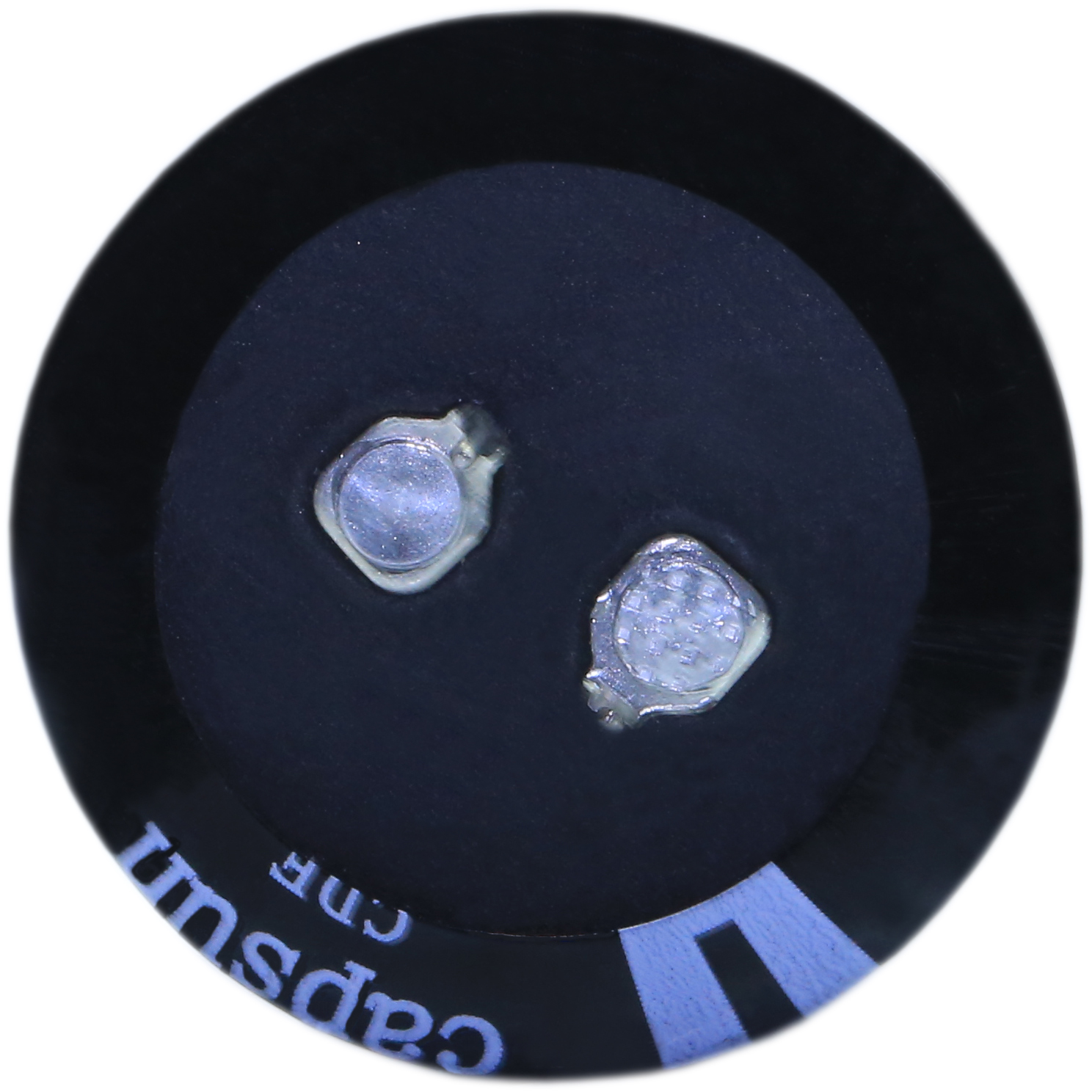

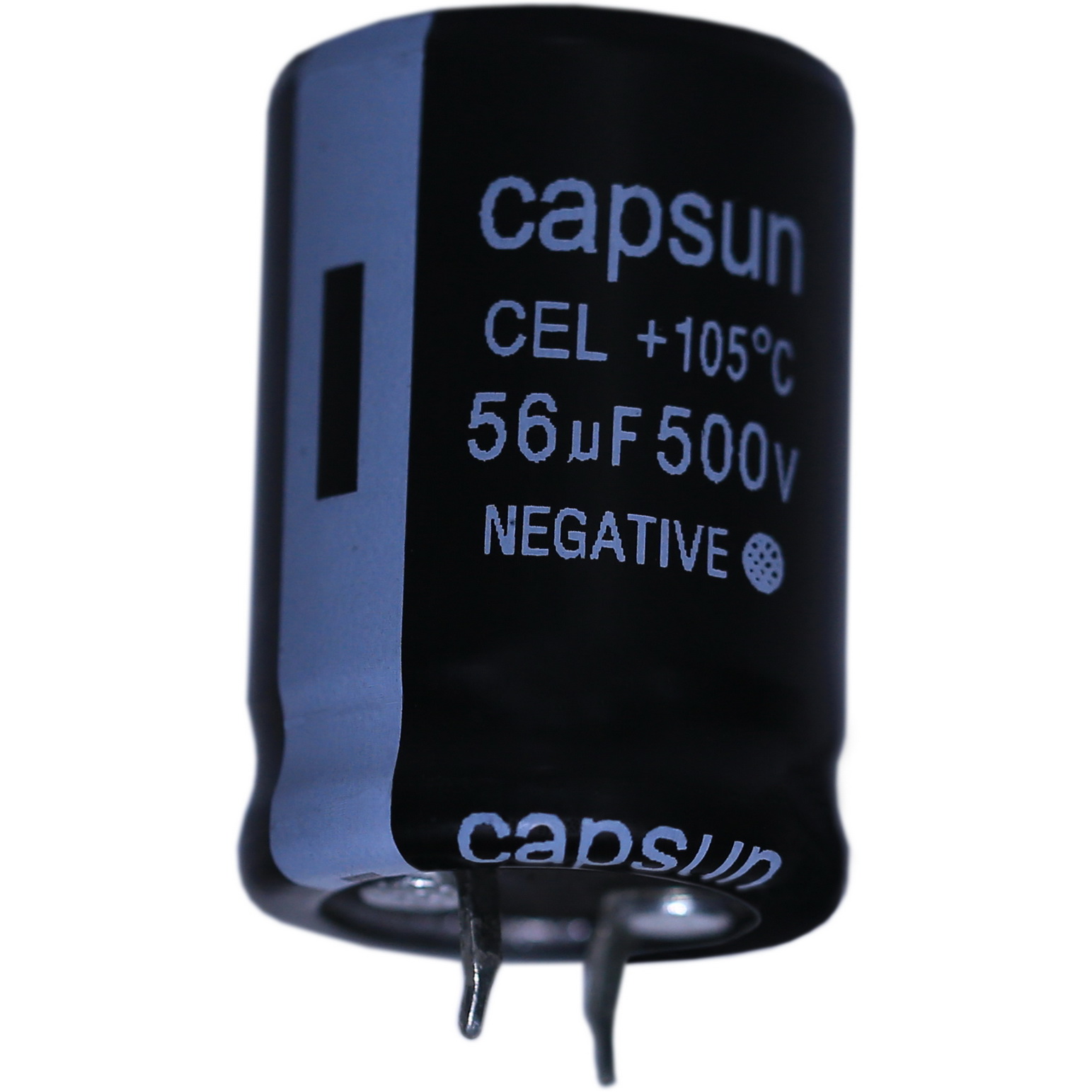

super downsized aluminum electrolytic capacitor-足球看盘软件
series：
sort：
category：
rated voltage range（vdc）：

download

working cap temperature. standard life(hours)

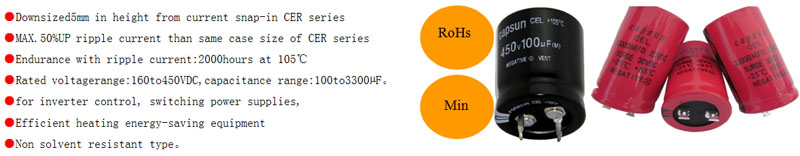

detailed
specification

105℃ 2000hours

specific ations

items

characteristics

category temperature range

-25～ 105℃

rated voltage range

10～450_vdc

capacitance tolerance

± 20%（m） 20℃、120hz

leakage current

i=0.02cv or 5ma,whichever is smaller
i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)

dissipation factor（max）

rated voltage（vdc）	160～250v	315～400v	420～450v
tanδ	0.15	0.16	0.20

low temperature characteristics

rated voltage（vdc）	200v	250v	400v	450v
z(-25℃)/z( 20℃)	≤4

equivalent series inductance

≤50nh

shelf life

the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 500 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

shelf life

the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 105℃

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

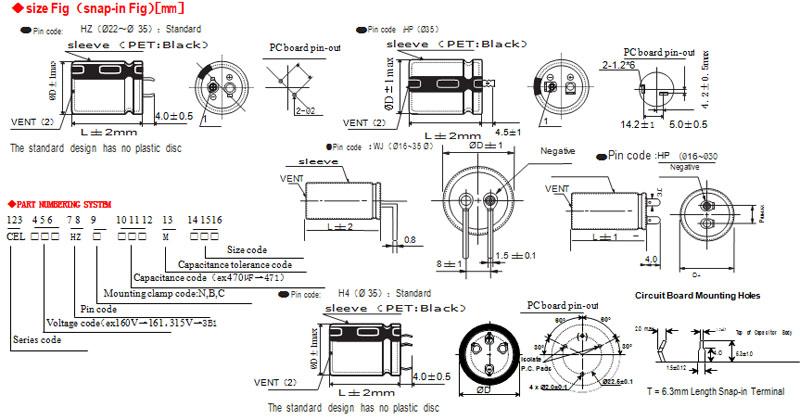

srandrad ratings

wv [vdc]	cap [μf]	case size d x l [mm]	ripple currentams 105℃120hz	ripple current ir~100 hz,85℃[a]	par t no.
10v 13sv	12000	22*25	0.061	2.41	cel010nj123ke25
	15000	22*30	0.049	2.88	cel010nj153ke30
	15000	25*25	0.049	2.88	cel010nj153kf25
	18000	22*35	0.041	3.22	cel010nj183ke35
	18000	25*30	0.041	3.08	cel010nj183kf30
	22000	22*40	0.033	3.79	cel010nj223ke40
	22000	25*30	0.033	3.66	cel010nj223kg25
	22000	30*25	0.033	3.53	cel010nj223kg25
	27000	22*45	0.027	4.04	cel010nj273ke45
	27000	25*35	0.027	4.04	cel010nj273kf35
	27000	30*30	0.027	3.99	cel010nj273kg30
	33000	22*50	0.022	4.58	cel010nj333ke50
	33000	25*40	0.022	4.56	cel010nj333kf40
	33000	30*30	0.022	4.58	cel010nj333kg30
	39000	25*45	0.019	5.29	cel010nj393kf45
	39000	30*35	0.019	5.21	cel010nj393kg35
	39000	35*30	0.019	5.50	cel010nj393ka30
	47000	25*50	0.016	5.78	cel010nj473kf50
	47000	30*40	0.016	5.78	cel010nj473kg40
	47000	35*35	0.016	5.55	cel010nj473ka35
	56000	30*45	0.013	6.59	cel010nj563kg45
	56000	35*35	0.013	6.40	cel010nj563ka35
	68000	30*50	0.011	7.50	cel010nj683kg50
	68000	35*40	0.011	7.48	cel010nj683ka40
	82000	35*50	0.009	8.50	cel010nj823ka50
16v 20sv	8200	22*25	0.081	2.56	cel016nj822ke25
	10000	22*30	0.066	2.89	cel016nj103ke30
	12000	22*30	0.055	3.13	cel016nj123ke30
	12000	25*25	0.055	3.01	cel016nj123kf25
	15000	22*35	0.044	3.69	cel016nj153ke35
	15000	25*30	0.044	3.64	cel016nj153kf30
	15000	30*25	0.044	3.73	cel016nj153kg25
	18000	22*40	0.037	3.98	cel016nj183ke40
	18000	25*35	0.037	3.98	cel016nj183kf35
	18000	30*30	0.037	3.88	cel016nj183kg30
	22000	22*50	0.030	4.52	cel016nj223ke50
	22000	25*40	0.030	4.44	cel016nj223kf40
	22000	30*30	0.030	4.38	cel016nj223kg30
	27000	25*45	0.025	4.98	cel016nj273kf45
	27000	30*35	0.025	4.95	cel016nj273kg35
	27000	35*30	0.025	4.82	cel016nj273ka30
	33000	25*50	0.020	5.49	cel016nj333kf50
	33000	30*40	0.020	5.60	cel016nj333kg40
	33000	35*30	0.020	5.46	cel016nj333ka30
	39000	30*45	0.017	6.21	cel016nj393kg45
	39000	30*50	0.014	6.12	cel016nj393ka35
	47000	30*50	0.014	6.93	cel016nj473kg50
	47000	35*40	0.014	6.89	cel016nj473ka40
	56000	35*45	0.12	7.69	cel016nj563ka45
25v 30sv	5600	22*25	0.107	2.31	cel025nj562ke25
	6800	22*30	0.088	2.86	cel025nj682ke30
	8200	22*35	0.073	2.86	cel025nj822ke35
	8200	25*25	0.073	2.78	cel025nj822kf25
	10000	22*35	0.060	3.31	cel025nj103ke35
	10000	25*30	0.060	3.16	cel025nj103kf30
	10000	30*25	0.060	3.28	cel025nj103kg25
	12000	22*40	0.050	3.77	cel025nj123ke40
	12000	25*35	0.050	3.63	cel025nj123kf35
	12000	30*25	0.050	3.80	cel025nj123kg25
	15000	22*50	0.040	4.21	cel025nj153ke50
	15000	25*40	0.040	4.10	cel025nj153kf40
	15000	30*30	0.140	4.00	cel025nj153kg30
	18000	35*30	0.033	5.29	cel025nj223kf50
	22000	30*40	0.027	5.33	cel025nj223kg40
	22000	35*35	0.027	5.26	cel025nj223ka35
	27000	30*45	0.022	6.02	cel025nj273kg45
	27000	35*40	0.022	6.02	cel025nj273ka40
	33000	30*50	0.18	5.29	cel025nj333kg50
	33000	35*45	0.018	6.75	cel025nj333ka45
	39000	35*50	0.15	7.56	cel025nj393ka50
35v 44sv	3900	22*25	0.136	2.22	cel035nj392ke25
	4700	22*30	0.113	2.46	cel035nj472ke30
	4700	25*25	0.113	2.43	cel035nj472kf25
	5600	22*30	0.095	2.61	cel035nj562ke30
	5600	22*35	.0095	2.79	cel035nj562ke35
	5600	25*30	0.095	2.75	cel035nj562kf30
	6800	22*40	0.078	2.89	cel035nj682ke40
	6800	25*30	0.078	2.89	cel035nj682kf30
	6800	30*25	0.078	3.09	cel035nj682kg25
	8200	22*45	0.065	3.47	cel035nj822ke45
	8200	25*35	0.065	3.33	cel035nj822kf35
	8200	30*30	0.065	3.29	cel035nj822kg30
	10000	22*50	0.053	3.75	cel035nj103ke50
	10000	25*40	0.053	3.65	cel035nj103kf40
	10000	30*30	0.053	3.61	cel035nj103kg30
	12000	25*45	0.044	4.15	cel035nj123kf45
	12000	30*35	0.044	4.14	cel035nj123kg35
	12000	35*30	0.044	4.27	cel035nj123ka30
	15000	25*50	0.035	4.77	cel035nj153kf50
	15000	30*40	0.035	4.80	cel035nj153kg40
	15000	35*35	0.035	4.95	cel035nj153ka35
	18000	30*45	0.029	5.30	cel035nj183kg45
	18000	35*40	0.029	5.71	cel035nj183ka40
	22000	35*45	0.024	6.38	cel035nj223ka45
	27000	35*50	0.020	6.90	cel035nj273ka50
50v 63sv	2200	22*25	0.211	1.93	cel050nj222ke25
	2700	22*30	0.172	2.21	cel050nj272ke30
	3300	22*30	0.141	2.41	cel050nj332ke30
	3300	25*25	0.141	2.38	cel050nj332kf25
	3900	22*35	0.119	2.72	cel050nj392ke35
	3900	25*30	0.119	2.68	cel050nj392kf30
	4700	22*40	0.099	3.02	cel050nj472ke40
	4700	25*30	0.099	3.07	cel050nj472kf30
	4700	30*25	0.099	3.01	cel050nj472kg25
	5600	22*40	0.083	3.26	cel050nj562ke40
	5600	22*45	0.083	3.43	cel050nj562kf35
	5600	25*35	0.083	3.47	cel050nj562kf35
	5600	30*30	0.083	3.43	cel050nj562kg30
	6800	22*50	0.068	3.94	cel050nj682ke50
	6800	25*40	0.068	3.87	cel050nj682kf40
	6800	30*35	0.068	3.93	cel050nj682kg35
	8200	25*45	0.057	4.44	cel050nj822kf45
	8200	30*35	0.057	4.47	cel050nj822kg35
	8200	35*30	0.057	4.41	cel050nj822ka30
	10000	30*40	0.046	5.08	cel050nj103kg40
	10000	35*35	0.046	4.92	cel050nj103ka35
	12000	30*50	0.039	5.72	cel050nj123kg50
	12000	35*40	0.039	5.69	cel050nj123ka40
	15000	35*45	0.031	6.56	cel050nj153ka45
	18000	35*50	0.026	7.14	cel050nj183ka50
	22000	35*50	0.021	7.89	cel050nj223ka50
63v 79sv	1800	22*25	0.221	1.90	cel063nj182ke25
	2200	22*30	0.181	2.35	cel063nj222ke30
	2200	25*25	0.181	2.30	cel063nj222kf25
	2700	22*35	0.147	2.50	cel063nj272ke35
	2700	25*30	0.147	2.52	cel063nj272kf30
	3300	22*40	0.121	2.72	cel063nj332ke40
	3300	25*30	0.121	2.72	cel063nj332kf30
	3300	30*25	0.121	2.74	cel063nj332kg25
	3900	22*45	0.102	3.09	cel063nj392ke45
	3900	25*35	0.102	3.13	cel063nj392kf35
	3900	30*30	0.102	3.09	cel063nj392kg30
	4700	22*50	0.085	3.69	cel063nj472ke50
	4700	25*40	0.085	3.59	cel063nj472kf40
	4700	30*30	0.085	3.54	cel063nj472kg30
	5600	25*45	0.071	4.01	cel063nj562kf45
	5600	30*35	0.071	4.00	cel063nj562kg35
	5600	35*30	0.071	3.75	cel063nj562ka30
	6800	25*50	0.059	4.52	cel063nj682kf50
	6800	30*40	0.059	4.55	cel063nj682kg40
	6800	35*30	0.059	4.44	cel063nj682ka30
	8200	30*45	0.049	5.12	cel063nj822kg45
	8200	35*35	0.049	5.05	cel063nj822ka35
	10000	30*50	0.040	5.78	cel063nj103kg50
	10000	35*40	0.040	5.75	cel063nj103ka40
	12000	30*50	0.033	6.20	cel063nj123kg50
	12000	35*45	0.033	6.47	cel063nj123ka45
	12000	35*50	0.033	6.76	cel063nj123ka50
80v 100sv	1200	22.25	0.276	1.77	cel080nj122ke25
	1500	22*30	0.221	2.01	cel080nj152ke30
	1800	22*30	0.184	2.11	cel080nj182ke30
	1800	25*25	0.184	2.26	cel080nj182kf25
	2200	22*40	0.151	2.53	cel080nj222ke40
	2200	25*30	0.151	2.53	cel080nj222kf30
	2200	30*25	0.151	2.56	cel080nj222kg25
	2700	22*45	0.123	2.93	cel080nj272ke45
	2700	25*35	0.123	2.93	cel080nj272kf35
	2700	25*35	0.123	2.93	cel080nj272kg30
	3300	22*50	0.101	3.23	cel080nj332ke50
	3300	25*45	0.101	3.29	cel080nj332kf40
	3300	30*30	0.101	3.25	cel080nj332kg30
	3900	25*45	0.085	3.62	cel080nj392kf45
	3900	30*35	0.085	3.70	cel080nj392kg35
	4700	25*50	0.071	4.28	cel080nj472kf50
	4700	30*40	0.071	4.23	cel080nj472kg40
	4700	35*30	0.071	4.12	cel080nj472ka30
	5600	30*45	0.059	4.70	cel080nj562kg45
	5600	35*35	0.059	4.64	cel080nj560ka35
	6800	30*50	0.049	5.27	cel080nj682kg50
	6800	35*40	0.049	5.24	cel080nj682ka40
	8200	35*45	0.040	5.89	cel080nj822ka45
	10000	35*50	0.033	6.63	cel080nj103ka50
100v 125sv	820	22*25	0.324	1.86	cel100nj821ke25
	1000	22*30	0.265	2.02	cel100nj102ke30
	1200	22*30	0.221	2.12	cel100nj122ke30
	1200	25*25	0.221	2.11	cel100nj122kf25
	1500	22*35	0.177	2.45	cel100nj152ke35
	1500	25*35	0.177	2.47	cel100nj152kf30
	1800	22*40	0.147	2.77	cel100nj182ke40
	1800	25*35	0.147	2.81	cel100nj182kf35
	1800	30*25	0.147	2.65	cel100nj182kg25
	2200	22*45	0.121	3.15	cel100nj222ke45
	2200	22*40	0.121	2.14	cel100nj222kf40
	2200	30*30	0.121	3.17	cel100nj222kg30
	2700	25*45	0.098	3.66	cel100nj272kf45
	2700	30*35	0.098	3.65	cel100nj272kg35
	2700	35*30	0.098	3.77	cel100nj272ka30
	3300	25*50	0.080	4.15	cel100nj332ka50
	3300	30*40	0.080	4.18	cel100nj332kg40
	3300	35*35	0.080	4.07	cel100nj332ka35
	3900	30*45	0.068	4.67	cel100nj392kg45
	3900	35*35	0.068	4.61	cel100nj392ka35
	4700	35*40	0.056	5.23	cel100nj472ka40
	4700	30*50	0.056	5.26	cel100nj472kg50
	5600	35*45	0.047	5.88	cel100nj562ka45
	5600	35*50	0.039	6.01	cel100nj562ka50
160v 200sv	390	22*25	0.510	1.63	cel160nj391ke25
	470	22*30	0.423	1.86	cel160nj471ke30
	470	25*25	0.423	1.86	cel160nj471kf25
	560	22*30	0.355	2.15	cel160nj561ke30
	560	25*30	0.355	2.15	cel160nj561kf30
	680	22*40	0.293	2.35	cel160nj681ke40
	680	25*30	0.293	2.33	cel160nj681kf30
	680	30*25	0.293	2.33	cel160nj681kg25
	820	22*45	0.243	2.68	cel160nj821ke45
	820	25*35	0.243	2.65	cel160nj821kf35
	820	30*30	0.243	2.64	cel160nj821kg30
	1000	22*50	0.199	3.02	cel160nj102ke50
	1000	25*40	0.199	3.00	cel160nj102kf40
	1000	30*30	0.199	2.96	cel160nj102kg30
	1200	25*45	0.166	3.43	cel160nj122kf45
	1200	30*35	0.166	3.41	cel160nj122kg35
	1200	35*30	0.166	3.40	cel160nj122ka30
	1500	30*40	0.133	3.96	cel160nj152kg40
	1500	35*35	0.133	3.94	cel160nj152ka35
	1800	30*45	0.111	4.31	cel160nj182kg45
	1800	35*35	0.111	4.28	cel160nj182ka35
	2200	35*40	0.090	4.96	cel160nj222ka40
	2700	35*50	0.074	5.57	cel160nj272ka50
180v 225sv	330	22*25	0.603	1.49	cel180nj331ke25
	390	22*25	0.510	1.84	cel180nj391ke25
	470	22*30	0.423	1.91	cel180nj471ke30
	470	25*25	0.423	2.08	cel180nj471kf25
	560	22*35	0.355	2.25	cel180nj561ke35
	560	25*25	0.355	2.25	cel180nj561kf25
	680	22*35	0.293	2.48	cel180nj681ke35
	680	25*30	0.293	2.50	cel180nj681kf30
	680	30*25	0.293	2.46	cel180nj681kg25
	820	22*40	0.243	2.86	cel180nj821ke40
	820	25*35	0.243	2.75	cel180nj821kf35
	820	30*25	0.243	2.69	cel180nj821kg25
	1000	25*40	0.199	3.06	cel180nj102kf40
	1000	30*30	0.199	3.10	cel180nj102kg30
	1200	25*45	0.166	3.63	cel180nj122kf45
	1200	30*35	0.166	3.55	cel180nj122kg35
	1200	35*30	0.166	3.49	cel180nj122ka30
	1500	30*40	0.133	4.10	cel180nj152kg40
	1500	35*35	0.133	4.02	cel180nj152ka35
	1800	30*45	0.111	4.55	cel180nj182kg45
	1800	35*35	0.111	4.54	cel180nj182ka35
	2200	35*40	0.090	4.83	cel180nj222ka40
	2700	35*50	0.074	5.30	cel180nj272ka50
200v 250sv	270	22*25	0.737	1.37	cel200nj271ke25
	330	22*30	0.603	1.63	cel200nj331ke30
	330	22*25	0.603	1.51	cel200nj331ke25
	390	22*30	0.510	1.73	cel200nj391ke30
	390	25*25	0.510	1.71	cel200nj391kf25
	470	22*30	0.423	1.97	cel200nj471ke30
	470	25*30	0.423	1.95	cel200nj471kf30
	560	22*40	0.355	2.18	cel200nj561ke40
	560	25*30	0.355	2.15	cel200nj561kf30
	560	30*25	0.355	2.15	cel200nj561kg25
	680	22*45	0.293	2.48	cel200nj681ke45
	680	25*35	0.293	2.48	cel200nj681kf35
	680	30*30	0.293	2.48	cel200nj681kg30
	820	22*50	0.243	2.84	cel200nj821ke50
	820	25*45	0.243	2.79	cel200nj821kf40
	820	30*30	0.243	2.75	cel200nj821kg30
	1000	25*45	0.199	3.28	cel200nj102kf45
	1000	30*35	0.199	3.15	cel200nj102kg35
	1000	35*30	0.199	3.25	cel200nj102ka30
	1200	25*50	0.166	3.61	cel200nj122kf50
	1200	30*42	0.166	3.61	cel200nj122kg40
	1200	30*45	0.166	3.80	cel200nj122kg45
	1200	35*35	0.166	3.57	cel200nj122ka35
	1500	30*45	0.133	4.13	cel200nj152kg45
	1500	35*35	0.133	3.85	cel200nj152ka35
	1500	35*40	0.133	4.06	cel200nj152ka40
	1500	35*45	0.133	4.26	cel200nj152ka45
	1800	35*45	0.111	4.59	cel200nj182ka45
	2200	35*50	0.090	5.25	cel200nj222ka50
220v 270sv	220	25*25	0.905	1.30	cel220nj221ke25
	270	22*25	0.737	1.42	cel220nj271ke25
	330	22*25	0.603	1.59	cel220nj331ke30
	330	22*30	0.603	1.59	cel220nj331kf25
	390	25*25	0.510	1.80	cel220nj391ke35
	390	22*35	0.510	1.75	cel220nj391kf25
	470	25*25	0.423	2.06	cel220nj471ke35
	470	25*30	0.423	2.08	cel220nj471kf30
	470	30*25	0.423	2.16	cel220nj471kg25
	560	22*40	0.355	2.22	cel220nj561ke40
	560	25*35	0.355	2.38	cel220nj561kf35
	560	30*25	0.355	2.18	cel220nj561kg25
	680	22*45	0.293	2.62	cel220nj681ke45
	680	25*45	0.293	2.56	cel220nj681kf40
	680	30*30	0.293	2.52	cel220nj681kg30
	820	25*45	0.243	2.91	cel220nj821kf45
	820	30*35	0.243	2.84	cel220nj821kg35
	820	35*35	0.243	2.79	cel220nj821ka35
	1000	25*50	0.199	3.53	cel220nj102kf50
	1000	30*40	0.199	3.36	cel220nj102kg40
	1000	35*30	0.199	3.29	cel220nj102ka30
	1200	30*40	0.166	3.54	cel220nj122kg40
	1200	30*45	0.166	3.72	cel220nj122kg45
	1200	35*35	0.166	3.68	cel220nj122ka35
	1500	35*40	0.133	4.10	cel220nj152ka40
	1800	35*45	0.111	4.52	cel220nj182ka45
250v 300sv	220	22*25	0.905	1.24	cel250nj221ke25
	270	22*30	0.737	1.50	cel250nj271ke30
	330	22*30	0.603	1.66	cel250nj331ke30
	330	25*25	0.603	1.61	cel250nj331kf25
	390	22*35	0.510	1.88	cel250nj391ke35
	390	30*30	0.510	1.88	cel250nj391kf30
	470	22*40	0.423	2.15	cel250nj471ke40
	470	25*35	0.423	2.15	cel250nj471kf35
	470	30*25	0.423	2.04	cel250nj471kg25
	560	22*45	0.355	2.48	cel250nj561ke45
	560	25*35	0.355	2.35	cel250nj561kf35
	560	30*30	0.355	2.35	cel250nj561kg30
	680	25*40	0.293	2.67	cel250nj681kf40
	680	30*35	0.293	2.71	cel250nj681kg35
	820	25*50	0.243	3.01	cel250nj821kf50
	820	30*35	0.243	2.98	cel250nj821kg35
	820	35*30	0.243	2.96	cel250nj821ka30
	1000	30*35	0.199	3.20	cel250nj102kg35
	1000	30*45	0.199	3.56	cel250nj102kg45
	1000	30*50	0.199	3.73	cel250nj102kg50
	1000	35*35	0.199	3.48	cel250nj102ka35
	1200	30*50	0.166	3.99	cel250nj122kg50
	1200	35*40	0.166	3.84	cel250nj122ka40
	1500	35*45	0.133	4.33	cel250nj152ka45
	1800	35*50	0.111	4.54	cel250nj182ka50
315v 365sv	180	22*30	1.106	1.29	cel315nj181ke30
	180	25*25	1.106	1.38	cel315nj181kf25
	220	22*35	0.905	1.41	cel315nj221ke35
	220	25*30	0.905	1.47	cel315nj221kf30
	270	22*40	0.737	1.70	cel315nj271ke40
	270	25*30	0.737	1.70	cel315nj271kf30
	330	22*45	0.603	1.91	cel315nj331ke45
	330	25*35	0.603	1.94	cel315nj331kf35
	330	30*30	0.603	1.98	cel315nj331kg30
	390	22*50	0.510	2.07	cel315nj391ke50
	390	25*40	0.510	2.11	cel315nj391kf40
	390	30*30	0.510	2.15	cel315nj391kg30
	470	25*45	0.423	2.39	cel315nj471kf45
	470	30*35	0.423	2.38	cel315nj471kg35
	470	35*30	0.423	2.36	cel315nj471ka30
	560	30*40	0.355	2.63	cel315nj561kg40
	560	35*35	0.355	2.69	cel315nj561ka35
	680	30*45	0.293	2.80	cel315nj681kg45
	680	35*40	0.293	4.48	cel315nj681ka40
	820	30*50	0.243	4.82	cel315nj821kg50
	820	35*45	0.243	3.45	cel315nj821ka45
	1000	35*50	0.199	3.57	cel315nj102ka50
350v 400sv	120	22*25	1.659	1.04	cel350nj121ke25
	150	22*30	1.327	1.20	cel350nj151ke30
	150	25*25	1.327	1.22	cel350nj151kf25
	180	22*30	1.106	1.34	cel350nj181ke30
	180	25*25	1.106	1.37	cel350nj181kf25
	220	22*35	0.905	1.47	cel350nj221ke35
	220	25*30	0.905	1.53	cel350nj221kf30
	220	30*25	0.905	1.54	cel350nj221kg25
	270	22*40	0.737	1.70	cel350nj271ke40
	270	25*35	0.737	1.73	cel350nj271kf35
	270	30*25	0.737	1.80	cel350nj271kg25
	330	22*45	0.603	1.87	cel350nj331ke45
	330	25*40	0.603	1.97	cel350nj331kf40
	330	30*30	0.603	2.03	cel350nj331kg30
	390	25*40	0.510	2.14	cel350nj391kf40
	390	30*35	0.510	2.23	cel350nj391kg35
	390	35*30	0.510	2.30	cel350nj391ka30
	470	30*35	0.423	2.53	cel350nj471kg35
	470	35*30	0.423	2.55	cel350nj471ka30
	560	30*40	0.355	2.73	cel350nj561kg40
	560	35*35	0.355	2.75	cel350nj561ka35
	680	35*40	0.293	3.15	cel350nj681ka40
	820	35*45	0.243	3.47	cel350nj821ka45
	1000	35*50	0.199	3.60	cel350nj102ka50
385v 435sv	82	22*25	2.427	0.76	cel385nj820ke25
	100	22*30	1.990	0.89	cel385nj101ke30
	120	22*30	1.659	0.98	cel385nj121ke30
	120	25*25	1.659	1.02	cel385nj121kf25
	150	22*35	1.659	1.02	cel385nj151ke35
	150	25*30	1.327	1.14	cel385nj151kf30
	180	22*40	1.106	1.30	cel385nj181ke40
	180	25*35	1.106	1.30	cel385nj181kf35
	180	30*25	1.106	1.37	cel385nj181kg25
	220	22*45	0.905	1.42	cel385nj221ke45
	220	25*35	0.905	1.48	cel385nj221kf35
	220	30*30	0.905	1.49	cel385nj221kg30
	270	25*40	0.737	1.61	cel385nj271kf40
	270	30*35	0.737	1.64	cel385nj271kg35
	330	25*50	0.603	1.80	cel385nj331kf50
	330	30*40	0.603	1.85	cel385nj331kg40
	330	35*30	0.603	1.87	cel385nj331ka30
	390	30*40	0.510	2.07	cel385nj391kg40
	390	35*35	0.510	2.07	cel385nj391ka35
	470	35*40	0.423	2.26	cel385nj471kg50
	470	35*40	0.423	2.26	cel385nj471ka40
	560	35*45	0.355	2.59	cel385nj561ka45
	680	35*50	0.293	2.80	cel385nj681ka50
400v 450sv	82	22*25	2.427	0.84	cel400nj820ke25
	100	22*30	1.990	0.99	cel400nj101ke30
	120	25*25	10659	1.13	cel400nj121kf25
	120	22*30	1.659	1.09	cel400nj121ke30
	150	22*35	1.327	1.24	cel400nj151ke35
	150	25*30	1.327	1.27	cel400nj151kf30
	180	22*40	1.106	1.14	cel400nj181ke40
	180	25*30	1.106	1.44	cel400nj181kf30
	180	30*25	1.106	1.52	cel400nj181kg25
	220	22*45	0.905	.58	cel400nj221ke45
	220	25*30	0.900	1.54	cel400nj221kf30
	220	25*35	0.905	1.64	cel400nj221kf35
	220	30*30	0.905	1.66	cel400nj221kg30
	270	25*40	0.737	1.79	cel400nj271kf40
	270	30*30	0.737	1.82	cel400nj271kg30
	330	30*30	0.737	1.82	cel400nj331kg30
	330	30*30	0.603	2.05	cel400nj331kg30
	330	35*30	0.603	2.05	cel400nj331ka30
	330	25*45	0.603	2.00	cel400nj331kf45
	390	30*40	0.510	2.26	cel400nj391kg40
	390	35*35	0.510	2.28	cel400nj391ka35
	470	30*45	0.423	2.51	cel400nj471kg45
	470	35*40	0.423	2.54	cel400nj471ka40
	560	35*50	0.355	3.13	cel400nj561ka50
	560	35*40	0.355	2.85	cel400nj561ka40
	680	35*50	0.293	3.10	cel400nj681ka50
	820	35*50	0.240	3.40	cel400nj821ka50
420v 470sv	82	22*25	2.427	0.85	cel420nj820ke25
	100	22*30	1.990	0.97	cel420nj101ke30
	100	25*25	1.990	0.98	cel420nj101kf25
	120	22*30	1.659	1.07	cel420nj121ke30
	120	25*25	1.659	1.08	cel420nj121kf25
	150	22*35	1.327	1.21	cel420nj151ke35
	150	25*30	1.327	1.26	cel420nj151kf30
	150	30*25	1.327	1.30	cel420nj151kg25
	180	22*40	1.106	1.33	cel420nj181ke40
	180	25*35	1.106	1.42	cel420nj181kf35
	180	30*25	1.106	1.48	cel420nj181kg25
	220	22*45	0.905	1.55	cel420nj221ke45
	220	25*35	0.905	1.58	cel420nj221kf35
	220	30*30	0.905	1.65	cel420nj221kg30
	270	25*40	0.737	1.74	cel420nj271ka40
	270	30*35	0.737	1.90	cel420nj271kg35
	270	35*30	0.737	1.94	cel420nj271ka30
	330	25*50	0.603	2.20	cel420nj331kf50
	330	30*35	0.603	1.98	cel420nj331kg35
	330	35*35	0.603	2.17	cel420nj331ka35
	390	30*40	0.510	2.22	cel420nj391kg40
	390	35*35	0.510	2.27	cel420nj391ka35
	470	30*45	0.423	2.50	cel420nj471kg45
	470	35*40	0.423	2.61	cel420nj471ka40
	560	35*45	0.355	2.95	cel420nj561ka45
450v 500sv	68	22*25	3.903	0.71	cel450nj680ke25
	82	22*25	3.236	0.86	cel450nj820ke25
	100	25*25	2.654	0.97	cel450nj101kf25
	120	22*30	2.212	1.00	cel450nj121ke30
	120	25*30	2.212	1.09	cel450nj121kf30
	120	22*30	2.212	1.00	cel450nj121ke30
	120	30*25	2.212	1.12	cel450nj121kg25
	150	22*40	1.769	1.18	cel450nj151ke40
	150	25*30	1.769	1.25	cel450nj151kf30
	150	30*25	1.769	1.29	cel450nj151kg25
	180	30*25	1.470	1.35	cel450nj181kg25
	180	22*45	1.474	1.32	cel450nj181ke45
	180	25*35	1.474	1.40	cel450nj181kf35
	180	30*25	1.474	1.45	cel450nj181kg25
	220	25*40	1.206	1.59	cel450nj221kf40
	220	30*30	1.206	1.64	cel450nj221kg30
	220	35*30	1.206	1.66	cel450nj221ka30
	270	25*45	0.983	1.73	cel450nj271kf45
	270	30*30	0.983	1.78	cel450nj271kg30
	270	30*25	0.983	1.89	cel450nj271kg35
	270	35*30	0.983	1.90	cel450nj271ka30
	330	35*35	0.804	2.15	cel450nj331ka35
	330	30*40	0.804	2.12	cel450nj331kg40
	390	30*45	0.680	2.35	cel450nj391kg45
	390	35*45	0.680	2.38	cel450nj391ka40
	470	35*50	0.565	2.80	cel450nj471ka50
	470	35*45	0.565	2.68	cel450nj471ka45

rated ripple current multipliers
50	120	300
0.81	1.00	1.17
0.77	1.00	1.16
the endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃rise.when long life performance is required in actual use,the rms ripple current has to be reduced

prev 没有了

没有了 next
