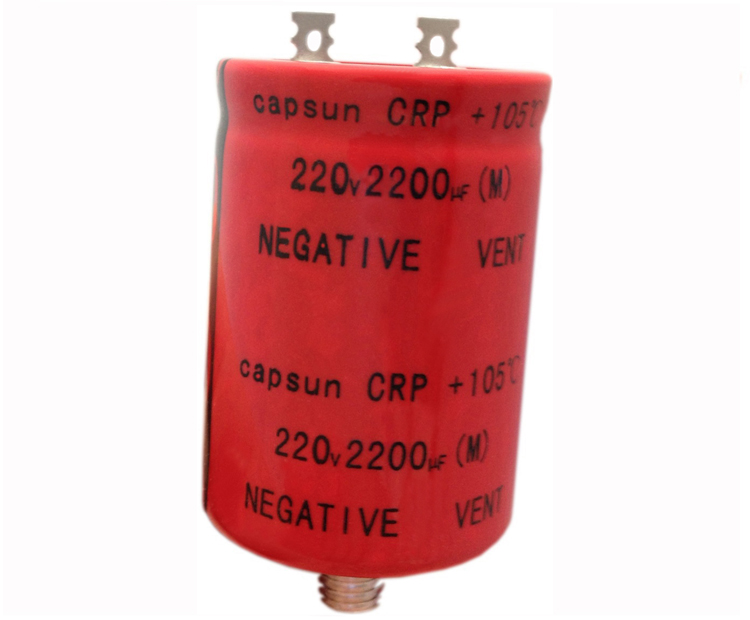

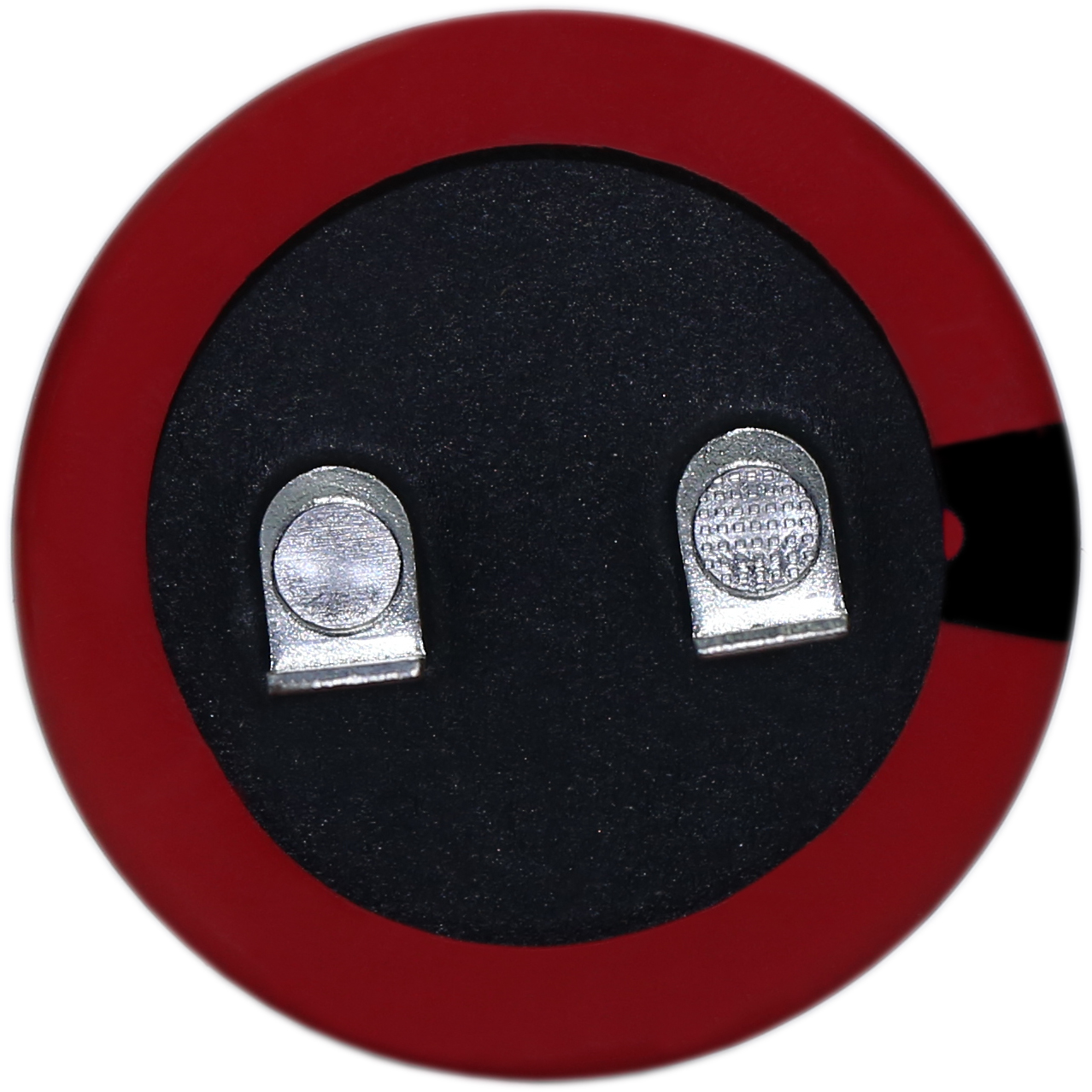

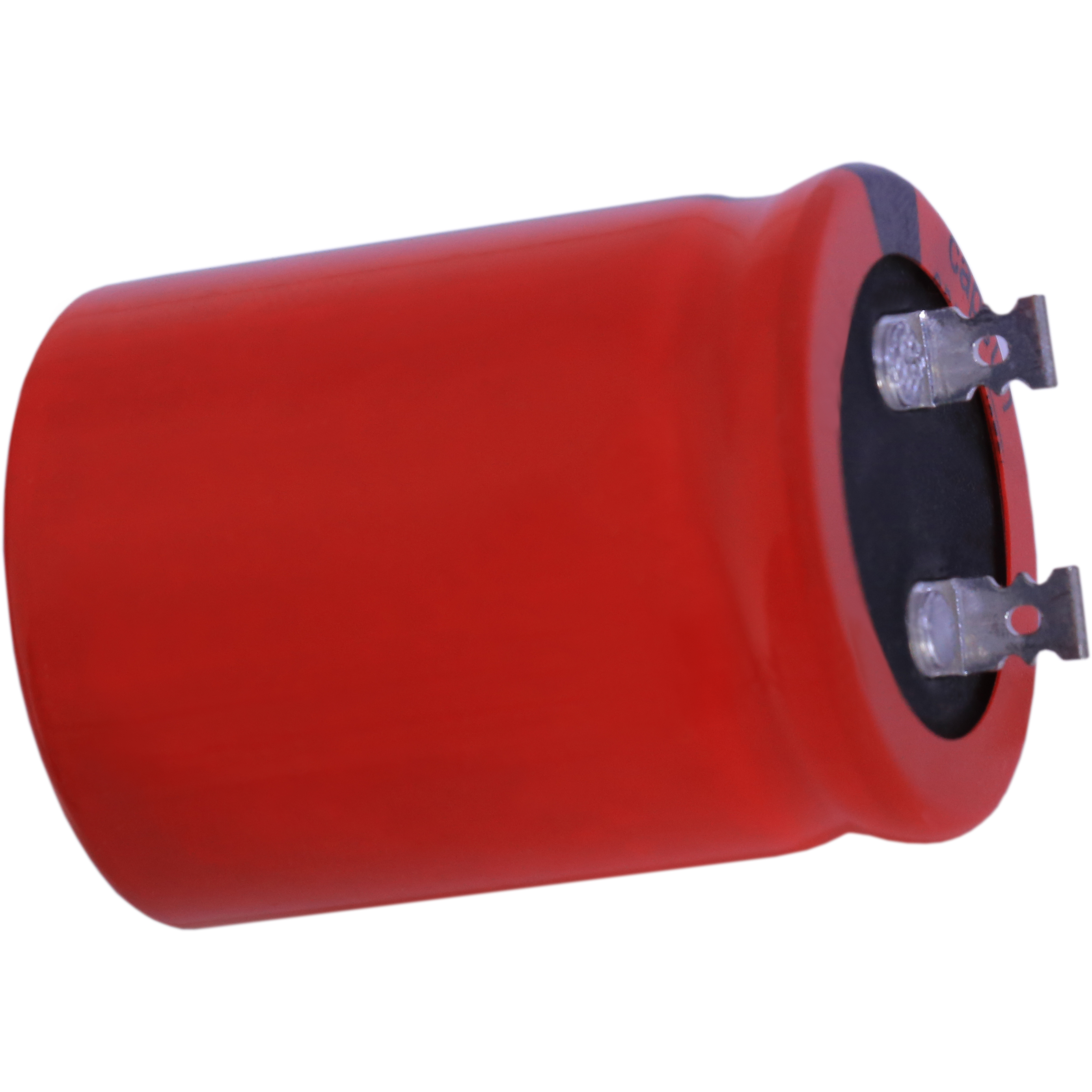

high ripple aluminum electrolytic capacitor-足球看盘软件

85℃ 3000hours

items		characteristics
category temperature range		-25~ 105℃
rated voltage range		16~500vuc
capacitance tolerance		± 20%（m）                                                                                20℃、120hz
leakage current		i=3√cv or 5ma,whichever is smaller） i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)
dissipation factor（max）		rated voltage（vdc） 16v～400v 420v～450v tanδmax 0.15 0.20
low temperature characteristics		rated voltage（vdc） 16v～400v 420v～500v z(-25℃)/z( 20℃) 4 8
endurance	the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 10,000 hours at 105℃
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value
shelf life	the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value



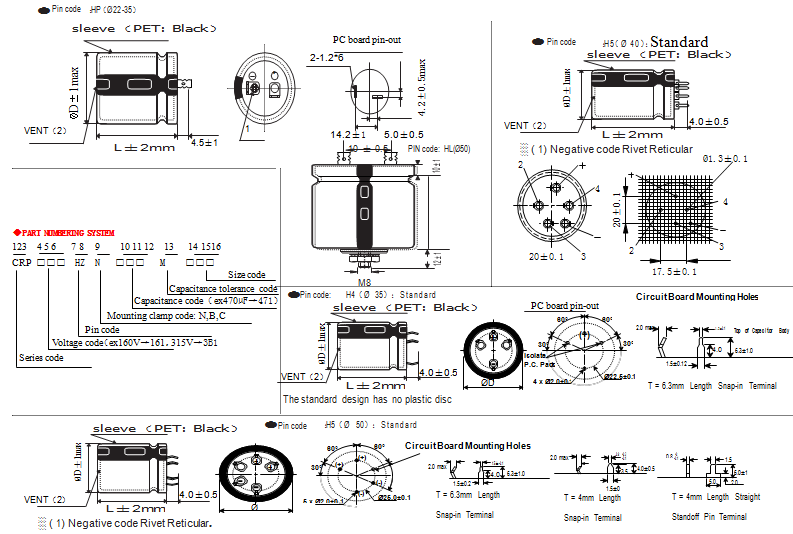

srandrad ratings

wv [vdc] cap [μf] case size d x l [mm] esr 120 hz 20℃[mω] ripple current （ams/105℃,120hz） par t no. 16v 22000 25×30 22 3.6 crp160hpn223mq30 27000 25×35 18 4.2 crp160hpn273mq35 39000 25×40 12 5.3 crp160hpn393mq40 33000 30×30 14 4.8 crp160hpn333mr30 39000 25×45 12 5.6 crp160hpn393mq45 47000 25×50 10 6.4 crp160hpn473mq50 39000 30×35 12 5.5 crp160hpn393mr35 47000 35×30 10 6.4 crp160hpn473ma30 56000 30×40 9 7.0 crp160hpn563mr40 56000 35×35 9 7.4 crp160hpn563ma35 68000 30×50 7 8.4 crp160hpn683mr50 68000 35×40 7 8.5 crp160hpn683ma40 82000 35×45 6 9.7 crp160hpn823ma45 100000 30×70 5 11.6 crp160hpn104mr70 82000 35×50 6 10.1 crp160hpn823ma50 120000 40×50 4 12.9 crp160hpn124mu50 150000 40×60 3 15.4 crp160hpn154mu60 180000 35×100 3 19.7 crp160hpn184maa0 220000 40×80 2 20.8 crp160hpn224mu80 180000 50×60 3 16.9 crp160hpn184mc60 270000 50×80 2 23.1 crp160hpn274mv80 270000 40×100 2 25.3 crp160hpn274mua0 330000 50×100 1 27.9 crp160hpn334mca0 25v 10000 25×30 45 2.5 crp250hpn103mq30 12000 25×35 37 2.9 crp250hpn123mq35 15000 25×40 30 3.4 crp250hpn153mq40 15000 30×30 30 3.4 crp250hpn153mr30 18000 25×45 25 3.9 crp250hpn183mq45 18000 30×35 25 3.9 crp250hpn183mr35 18000 25×50 25 4.1 crp250hpn183mq50 22000 30×40 20 4.5 crp250hpn223mr40 18000 35×30 25 4.1 crp250hpn183ma30 27000 30×45 17 5.1 crp250hpn273mr45 27000 30×50 17 5.4 crp250hpn273mr50 22000 35×35 21 4.7 crp250hpn223ma35 27000 35×40 17 5.4 crp250hpn273ma40 33000 35×45 14 6.3 crp250hpn333ma45 39000 30×70 12 7.4 crp250hpn393mr70 39000 35×50 12 7.1 crp250hpn393ma50 47000 35×60 10 8.3 crp250hpn473ma60 56000 40×50 8 8.9 crp250hpn563mu50 56000 35×80 8 10.2 crp250hpn563ma80 58000 40×60 7 10.5 crp250hpn583mu60 82000 35×100 6 13.5 crp250hpn823maa0 82000 50×60 6 11.6 crp250hpn823mc60 120000 40×80 4 15.6 crp250hpn124mu80 120000 40×100 4 17.1 crp250hpn124mua0 120000 50×80 4 15.6 crp250hpn124mv80 150000 50×100 3 19.1 crp250hpn154mca0 40v 5600 25×30 68 2.0 crp400hpn562mq30 6800 25×35 56 2.4 crp400hpn682mq35 8200 25×40 47 2.7 crp400hpn822mq40 8200 30×30 47 2.7 crp400hpn822mr30 10000 25×45 38 3.2 crp400hpn103mq45 10000 30×35 38 3.1 crp400hpn103mr35 10000 25×50 38 3.1 crp400hpn103mq50 10000 30×40 38 3.3 crp400hpn103ma40 12000 35×30 32 3.6 crp400hpn123mr40 15000 30×45 25 4.2 crp400hpn153mr45 15000 30×50 25 4.4 crp400hpn153mr50 15000 35×40 25 4.5 crp400hpn153ma40 18000 35x45 21 5.1 crp400hpn183ma45 22000 35x50 17 5.8 crp400hpn223ma50 22000 30x70 17 6.1 crp400hpn223mr70 27000 35x60 14 6.9 crp400hpn273ma60 27000 40×50 14 6.8 crp400hpn273mu50 33000 35×80 12 8.6 crp400hpn333ma80 33000 40×60 12 8.1 crp400hpn333mu60 47000 35×100 8 11.3 crp400hpn473maa0 47000 40×80 8 10.8 crp400hpn473mu80 39000 50x60 10 8.8 crp400hpn393mc60 56000 40x100 7 12.9 crp400hpn563mua0 56000 50x80 7 11.7 crp400hpn563mc80 82000 50x100 5 15.5 crp400hpn823mca0 63v 2700 25×30 106 1.6 crp630hpn272mq30 3300 25×35 87 1.9 crp630hpn332mq35 3900 25×40 73 2.2 crp630hpn392mq40 3900 30×30 73 2.1 crp630hpn392mr30 4700 25×45 61 2.5 crp630hpn472mq45 4700 30×35 61 2.5 crp630hpn472mr35 5600 25×50 51 5.2 crp630hpn562mq50 5600 30×40 51 2.8 crp630hpn562mr40 5600 35×30 51 2.9 crp630hpn562ma30 6800 30×45 42 3.3 crp630hpn682mr45 6800 35×35 42 3.3 crp630hpn682ma35 8200 30×50 35 3.7 crp630hpn822mr50 8200 35×45 35 4.0 crp630hpn822ma45 12000 30×70 24 5.2 crp630hpn123mr70 12000 35×60 24 5.3 crp630hpn123ma60 15000 40×50 19 5.9 crp630hpn153mu50 18000 35×80 16 7.3 crp630hpn183ma80 18000 40×60 16 6.9 crp630hpn183mu60 22000 50×60 13 7.6 crp630hpn223mv60 22000 35×100 13 8.9 crp630hpn223maa0 22000 40×80 13 8.5 crp630hpn223mu80 27000 40×100 11 10.3 crp630hpn273mua0 27000 50×80 11 9.4 crp630hpn273mc80 39000 50×100 7 12.4 crp630hpn393mca0 80v 1800 25x30 177 1.3 crp800hpn182mq30 1800 25x35 177 1.3 crp800hpn182mq35 2700 25x40 118 1.7 crp800hpn272mq40 2700 30x30 118 1.7 crp800hpn272mr30 3300 25x45 97 2.0 crp800hpn332mq45 3900 25x50 82 2.3 crp800hpn392mq50 3300 30×25 97 2.0 crp800hpn332mr35 3900 35×30 82 2.3 crp800hpn392ma30 3900 30×40 82 2.3 crp800hpn392mr40 4700 30×45 68 2.6 crp800hpn472mr45 4700 35×35 68 2.6 crp800hpn472ma35 5600 30×50 57 2.9 crp800hpn562mr50 5600 35×40 57 3.0 crp800hpn562ma40 6800 35×45 47 3.4 crp800hpn682ma45 6800 35×50 47 3.6 crp800hpn682ma50 8200 30×70 39 4.1 crp800hpn822mr70 10000 35×60 47 3.6 crp800hpn103ma60 10000 40×50 32 4.6 crp800hpn103mu50 12000 35×80 27 5.7 crp800hpn123ma80 12000 40×60 27 5.3 crp800hpn123mu60 15000 50×60 21 6.0 crp800hpn153mv60 18000 35×100 18 7.6 crp800hpn183maa0 18000 40×80 18 7.3 crp800hpn183mu80 22000 50×80 14 8.1 crp800hpn223mc80 22000 40×100 14 8.8 crp800hpn223mua0 27000 50×100 12 9.8 crp800hpn273mca0 100v 1200 25×30 133 1.5 crp101hpn122mq30 1500 25×35 106 1.7 crp101hpn152mq35 1800 25×40 88 2.0 crp101hpn182mq40 1800 30×30 88 2.0 crp101hpn182mr30 2200 25×45 72 2.3 crp101hpn222mq45 2200 25×50 72 2.4 crp101hpn222mq50 2200 35×30 72 2.4 crp101hpn222ma30 2700 30×40 59 2.7 crp101hpn272mr40 2700 30×45 59 2.8 crp101hpn272mr45 2700 35×35 59 2.8 crp101hpn272ma35 3300 30×50 48 3.2 crp101hpn332mr50 3300 35×40 48 3.2 crp101hpn332ma40 3900 35×45 41 3.7 crp101hpn392ma45 5600 30×70 28 4.7 crp101hpn562mr70 4700 35×50 34 4.2 crp101hpn472ma50 5600 35×60 28 4.9 crp101hpn562ma60 5600 40×50 28 4.8 crp101hpn562mu50 6800 35×80 23 4.8 crp101hpn682ma80 6800 40×60 23 5.7 crp101hpn682mu60 10000 35×100 16 8.1 crp101hpn103maa0 12000 40×80 13 8.4 crp101hpn123mu80 10000 50×60 16 6.9 crp101hpn103mc60 12000 50×80 13 8.4 crp101hpn123mc80 15000 40×100 11 10.3 crp101hpn153mua0 18000 50×100 9 11.3 crp101hpn183mca0 160v 470 25×30 237 1.1 crp161hpn471mq30 560 25×35 199 1.3 crp161hpn561mq35 680 25×40 164 1.5 crp161hpn681mq40 680 30×30 164 1.4 crp161hpn681mr30 820 25×45 136 1.7 crp161hpn821mq45 820 30×35 136 1.7 crp161hpn821mr35 1000 25×50 111 1.9 crp161hpn102mq50 1000 30×40 111 1.9 crp161hpn102mr40 1000 35×30 111 1.9 crp161hpn102ma30 1200 30×45 93 2.2 crp161hpn122mr45 1200 35×35 93 2.2 crp161hpn122ma35 1500 30×50 74 2.6 crp161hpn152mr50 1500 35×40 74 2.6 crp161hpn152ma40 1800 35×45 62 3.0 crp161hpn182ma45 1800 35×50 62 3.1 crp161hpn182ma50 2200 30×70 51 3.6 crp161hpn222mr70 2200 35×60 51 3.7 crp161hpn222ma60 2700 40×50 41 4.0 crp161hpn272mu50 3300 35×80 34 5.0 crp161hpn332ma80 3300 40×60 34 4.7 crp161hpn332mu60 3900 35×100 29 6.0 crp161hpn392maa0 3900 50×60 29 5.2 crp161hpn392mc60 4700 40×80 24 6.3 crp161hpn472mu80 5600 40×100 20 7.5 crp161hpn562mua0 5600 50×80 20 6.9 crp161hpn562mc80 6800 50×100 16 8.3 crp161hpn682mca0 200v 470 25×30 203 1.2 crp201hpn471mq30 560 25×35 171 1.4 crp201hpn561mq35 680 25×40 141 1.6 crp201hpn681mq40 680 30×30 141 1.6 crp201hpn681mr30 820 25×45 117 1.8 crp201hpn821mq45 820 30×35 117 1.8 crp201hpn821mr35 1000 35×30 96 2.1 crp201hpn102ma30 1000 25×50 96 2.1 crp201hpn102mq50 1000 30×40 96 2.1 crp201hpn102mr40 1200 30×45 80 2.4 crp201hpn122mr45 1500 30×50 64 2.8 crp201hpn152mr50 1200 35×35 80 2.4 crp201hpn122ma35 1500 35×40 64 2.8 crp201hpn152ma40 1800 35×45 53 3.2 crp201hpn182ma45 1800 35×50 53 3.3 crp201hpn182ma50 2200 30×70 43 3.8 crp201hpn222mr70 2200 35×60 43 4.0 crp201hpn222ma60 2700 40×50 35 4.3 crp201hpn272mu50 3300 35×80 29 5.4 crp201hpn332ma80 3300 40×60 29 5.1 crp201hpn332mu60 3900 .5×100 24 6.5 crp201hpn392maa0 4700 40×80 20 6.8 crp201hpn472mu80 3900 50×60 24 5.6 crp201hpn392mv60 5600 40×100 17 8.1 crp201hpn562mua0 5600 50×80 17 7.4 crp201hpn562mc80 6800 50×100 14 9.0 crp201hpn682mca0 350v 180 25×30 531 0.7 crp351hpn181mq30 220 25×35 434 0.9 crp351hpn221mq35 270 25×40 354 1.0 crp351hpn271mq40 270 30×30 354 1.0 crp351hpn271mr30 330 25×45 290 1.2 crp351hpn331mq45 330 30×35 290 1.1 crp351hpn331mr35 390 35×30 245 1.3 crp351hpn391ma30 390 25×50 245 1.3 crp351hpn391mq50 390 30×40 245 1.3 crp351hpn391mr40 470 30×45 203 1.5 crp351hpn471mr45 470 35×35 203 1.5 crp351hpn471ma35 560 30×50 171 1.7 crp351hpn561mr50 560 35×40 171 1.7 crp351hpn561ma40 560 35×45 171 1.8 crp351hpn561ma45 680 35×50 141 2.1 crp351hpn681ma50 820 30×70 117 2.3 crp351hpn821mr70 820 35×60 117 2.4 crp351hpn821ma60 1000 40×50 96 2.6 crp351hpn102mu50 1200 35×80 80 3.1 crp351hpn122ma80 1200 40×60 80 3.1 crp351hpn122mu60 1500 35×100 64 4.0 crp351hpn152maa0 1500 50×60 64 3.4 crp351hpn152mc60 1800 40×80 53 4.2 crp351hpn182mu80 1800 40×100 53 4.6 crp351hpn182mua0 2200 50×80 43 4.7 crp351hpn222mc80 2700 50×100 35 5.6 crp351hpn272mca0 400v 180 25×30 708 0.6 crp401hpn181mq30 180 22×40 708 0.7 crp401hpn181me40 220 25×35 579 0.7 crp401hpn221mq35 270 25×40 472 0.9 crp401hpn271mq40 270 30×30 472 0.8 crp401hpn271mr30 330 25×45 386 1.0 crp401hpn331mq45 330 25×50 386 1.0 crp401hpn331mq50 330 30×35 386 1.0 crp401hpn331mr35 390 35×30 327 1.1 crp401hpn391ma30 390 30×40 327 1.1 crp401hpn391mr40 470 35×35 271 1.3 crp401hpn471ma35 470 30×45 271 1.3 crp401hpn471mr45 560 30×50 227 1.5 crp401hpn561mr50 560 35×40 227 1.6 crp401hpn561ma40 680 30×70 187 1.8 crp401hpn681mr70 680 35×60 187 1.8 crp401hpn681ma60 820 35×50 155 2.0 crp401hpn821ma50 820 35×60 155 2.1 crp401hpn821ma60 820 40×50 155 2.1 crp401hpn821mu50 1200 35×80 106 2.8 crp401hpn122ma80 1200 40×60 85 3.5 crp401hpn122mu60 1500 35×100 85 3.3 crp401hpn152maa0 1500 40×80 85 3.3 crp401hpn152mu80 1800 50×60 71 3.3 crp401hpn182mv60 1800 40×100 71 4.0 crp401hpn182mua0 1800 50×80 71 3.6 crp401hpn182mc80 2700 50×100 47 4.9 crp401hpn272mca0 450v 120 25×30 929 0.6 crp451hpn121mq30 150 25×35 743 0.7 crp451hpn151mq35 180 25×40 619 0.8 crp451hpn181mq40 220 25×45 507 0.9 crp451hpn221mq45 220 30×35 507 0.9 crp451hpn221mr35 220 25×50 507 0.9 crp451hpn221mq50 270 30×40 413 1.0 crp451hpn271mr40 220 35×30 507 0.9 crp451hpn221ma30 270 30×45 413 1.0 crp451hpn271mr45 270 35×35 413 1.1 crp451hpn271ma35 330 30×50 338 1.2 crp451hpn331mr50 390 35×40 286 1.3 crp451hpn391ma40 390 35×45 286 1.4 crp451hpn391ma45 560 30×70 199 1.8 crp451hpn561mr70 470 35×50 237 1.6 crp451hpn471ma50 560 35×60 199 1.9 crp451hpn561ma60 560 40×50 199 1.8 crp451hpn561mu50 820 35×80 136 2.5 crp451hpn821ma80 1200 40×60 93 2.8 crp451hpn122mu60 1000 35×100 111 3.0 crp451hpn102maa0 1000 50×60 111 2.6 crp451hpn102mc60 1200 40×80 93 3.3 crp451hpn122mu80 1500 40×100 74 4.0 crp451hpn152mua0 1200 50×80 93 3.2 crp451hpn122mc80 1800 50×100 62 4.3 crp451hpn182mca0 500v 120 25×30 796 0.6 crp501hpn121mq30 120 25×35 796 0.6 crp501hpn121mq35 150 25×40 637 0.7 crp501hpn151mq40 180 25×45 531 0.9 crp501hpn181mq45 150 30×30 637 0.7 crp501hpn151mr30 180 30×35 531 0.8 crp501hpn181mr35 220 25×50 434 1.0 crp501hpn221mq50 220 30×40 434 1.0 crp501hpn221mr40 180 35×30 531 0.9 crp501hpn181ma30 270 30×45 354 1.1 crp501hpn271mr45 270 35×35 354 1.1 crp501hpn271ma35 270 30×50 354 1.2 crp501hpn271mr50 270 35×40 354 1.2 crp501hpn271ma40 390 35×45 245 1.5 crp501hpn391ma45 470 30×70 203 1.8 crp501hpn471mr70 390 35×50 245 1.6 crp501hpn391ma50 560 35×60 171 2.0 crp501hpn561ma60 680 35×80 141 2.5 crp501hpn681ma80 680 40×60 141 2.3 crp501hpn681mu60 820 35×100 117 3.0 crp501hpn821maa0 820 50×60 117 2.6 crp501hpn821mc60 820 40×100 117 3.1 crp501hpn821mua0 1200 40×80 80 3.4 crp501hpn122mu80 1200 50×80 80 3.4 crp501hpn122mc80 1500 50×100 64 4.2 crp501hpn152mca0

◆rated ripple current multipliers
●frequency multiplier

frequency （hz）	50	60	120	500	1m	10m
16～100vc	0.93	0.95	1.00	1.05	1.08	1.15
160～500vc	0.75	0.80	1.00	1.20	1.25	1.40


×the endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise
  when long life performance is required in actual use,the rms ripple current has to be reduced。
