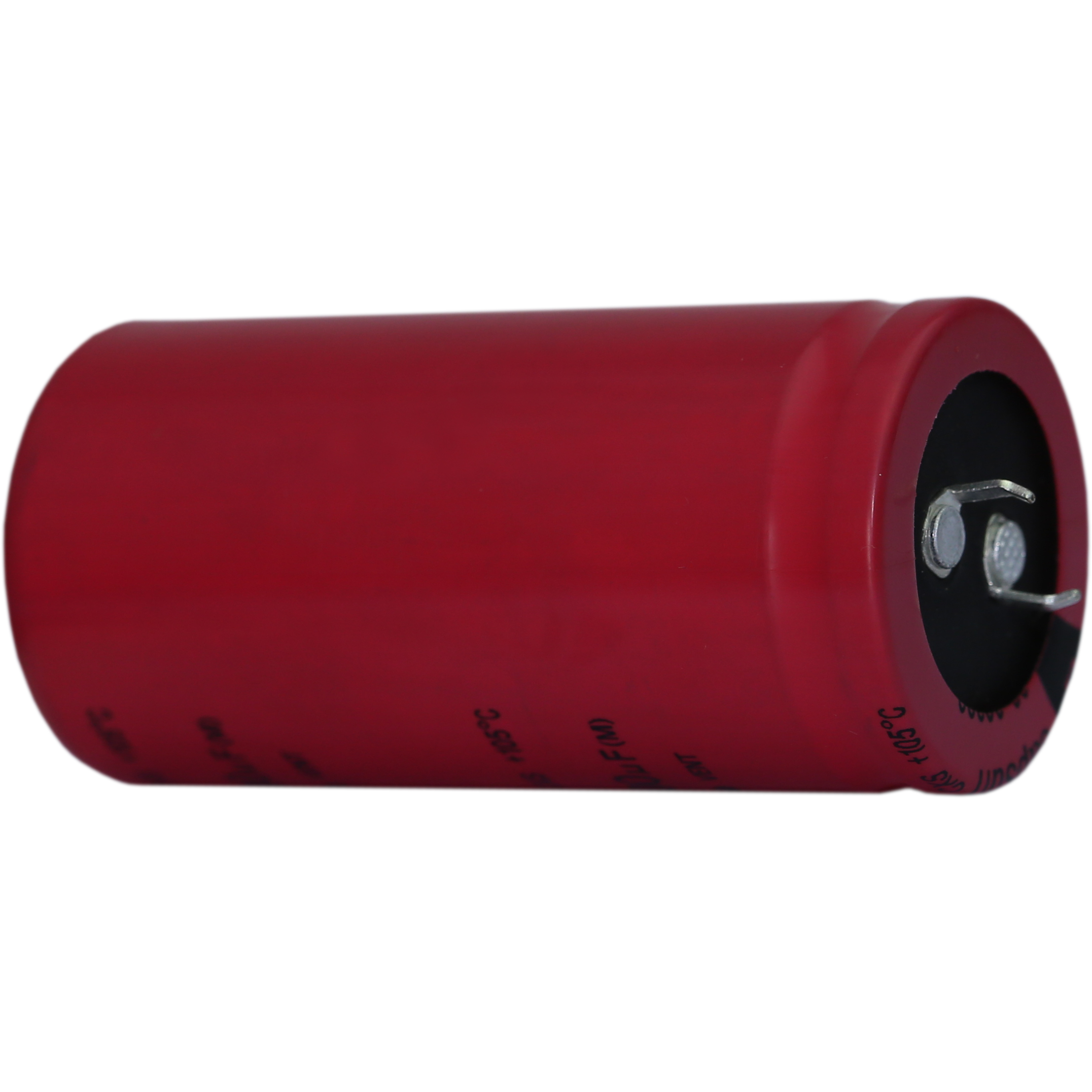

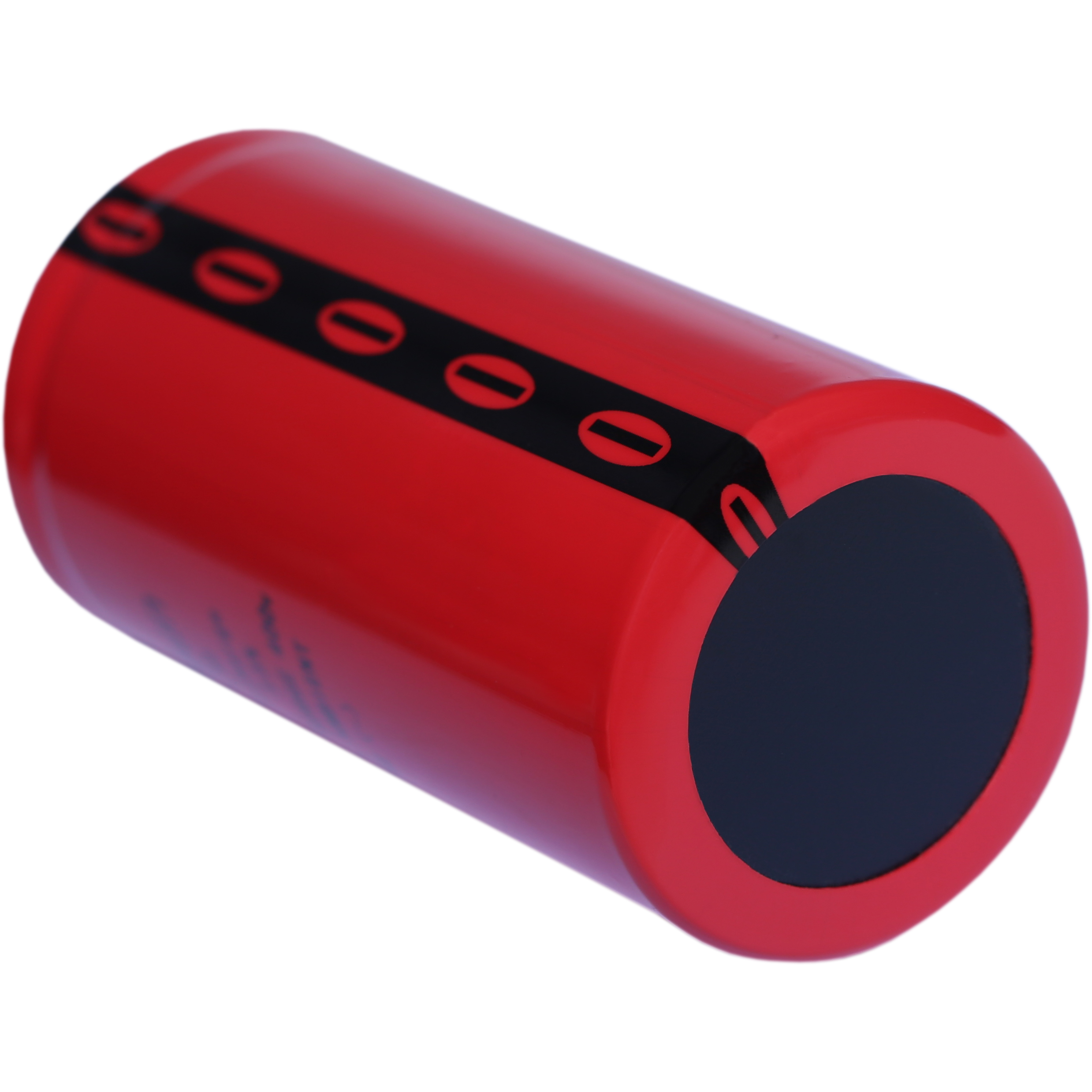

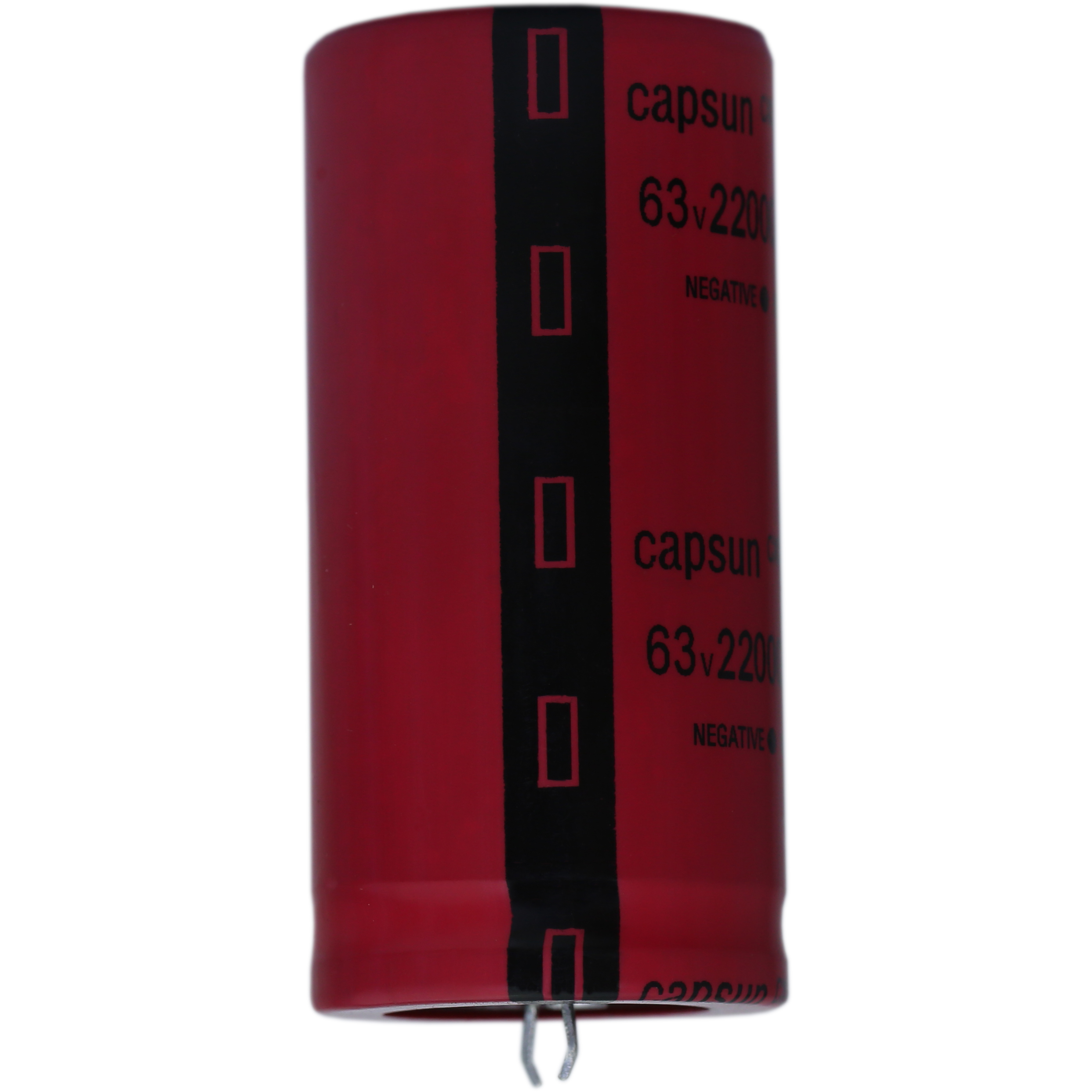

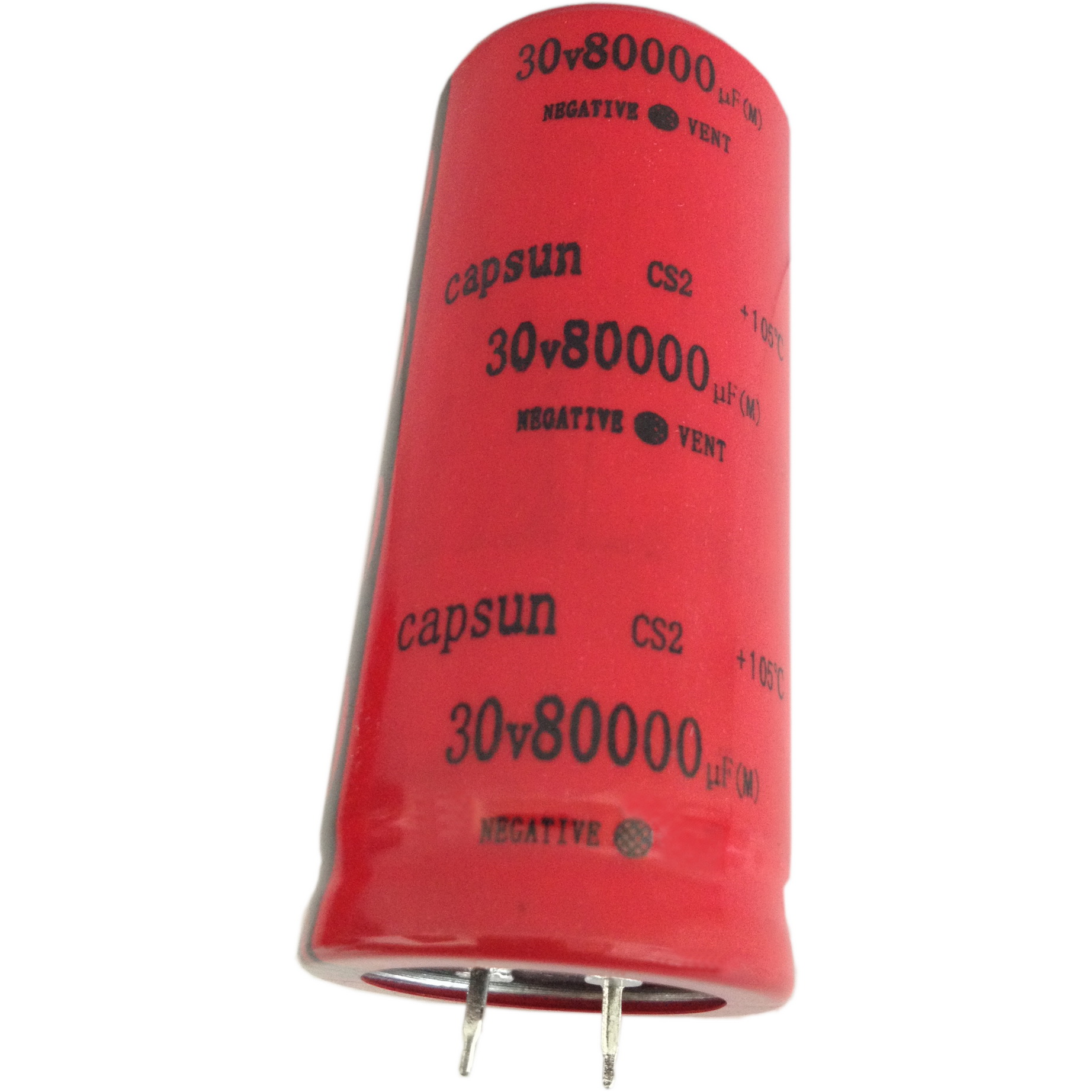

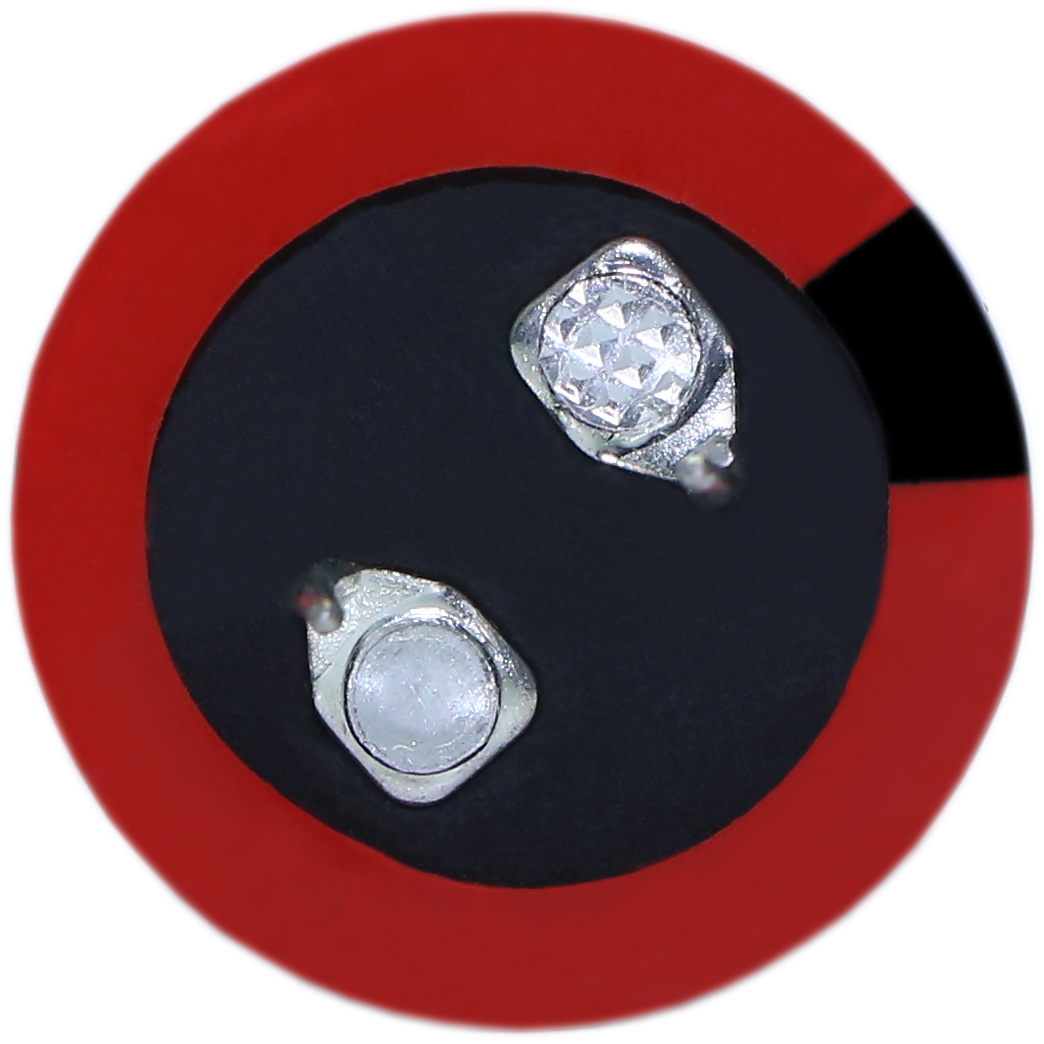

for charge and discharge application aluminum electrolytic capacitor-足球看盘软件

105℃ 8000hours

◆specific ations

items		characteristics
category temperature range		-25~ 85℃(500vdc~600vdc)            -25~ 105℃(16vdc~450vdc)
rated voltage range		16~600vdc
capacitance tolerance		± 20%（m）                                                           20℃、120hz
leakage current		i=3√cv or 5ma,whichever is smaller） i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)
dissipation factor（max）		≦specifications
low temperature characteristics		rated voltage（vdc） 16v～400v 420v～600v z(-25℃)/z( 20℃) 4 8
endurance	the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 8,000 hours at 105℃
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤of the initial specified value 200%(≧500vdc:250%≦)
	leakage current		≤the initial specified value
shelf life	the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤200% of the initial specified value
	leakage current		≤the initial specified value

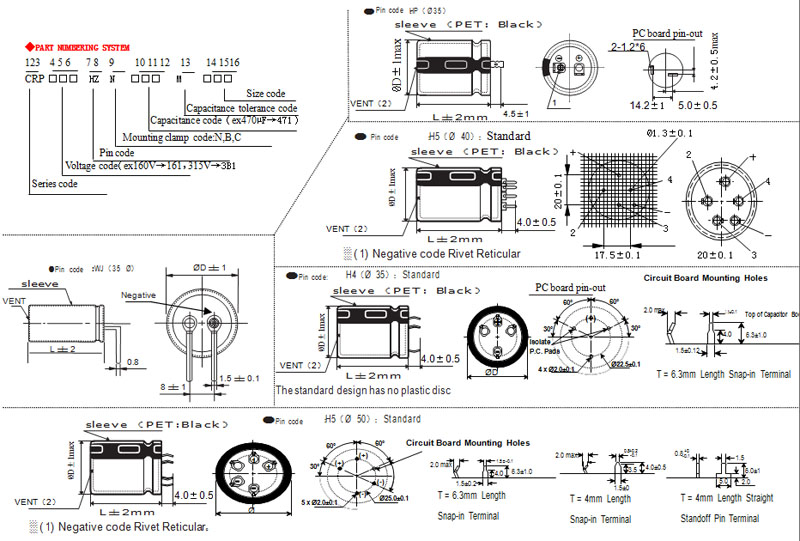

srandrad ratings

wv [vdc] cap [μf] case size d x l [mm] tanδ 120hz 20℃ ripple current ams/105℃, 120hz par t no. 16v 39000 35×40 0.5 5.10 cs2161hzd393ma40 47000 40×40 0.5 5.50 cs2161hzt473mu40 56000 35×50 0.5 6.00 cs2161hzd563ma50 68000 35×63 0.5 6.62 cs2161hzd393ma63 68000 40×50 0.5 7.29 cs2161hzt683mu50 82000 40×63 0.5 7.66 cs2161hzt823mu63 100000 35×80 0.5 8.03 cs2161hzd104ma80 120000 35×105 0.5 8.71 cs2161hzd124maa5 120000 40×80 0.5 8.79 cs2161hzt124mu80 120000 50×80 0.5 9.02 cs2161hzt124mc80 150000 40×105 0.5 9.88 cs2161hzt154mua5 150000 50×63 0.5 10.15 cs2161hzt154mc63 180000 50×80 0.5 11.02 cs2161hzt184mc80 220000 50×92 0.5 11.71 cs2161hzt224mc92 250000 50×105 0.5 12.31 cs2161hzt254mca5 25v 27000 35×40 0.4 4.80 cs2250hzd273ma40 33000 35×50 0.4 5.50 cs2250hzd333ma50 33000 40×40 0.4 5.50 cs2250hzt333mu40 47000 35×63 0.4 6.56 cs2250hzd473ma63 47000 40×50 0.4 6.47 cs2250hzt473mu50 56000 35×80 0.4 7.25 cs2250hzd563ma80 56000 40×63 0.4 7.17 cs2250hzt563mu63 82000 35×105 0.4 8.58 cs2250hzd823maa5 82000 40×80 0.4 8.68 cs2250hzt823mu80 82000 50×50 0.4 9.20 cs2250hzt823mc50 100000 40×105 0.4 9.76 cs2250hzt104mua5 100000 50×63 0.4 10.02 cs2250hzt104mc63 120000 50×80 0.4 10.93 cs2250hzt124mc80 150000 50×92 0.4 11.70 cs2250hzt154mc92 180000 50×105 0.4 12.42 cs2250hzt184mca5 35v 18000 35×40 0.35 4.30 cs2350hzd183ma40 22000 35×50 0.35 5.00 cs2350hzd223ma50 22000 40×40 0.35 5.00 cs2350hzt223mu40 27000 35×63 0.35 5.53 cs2350hzd273ma63 27000 40×50 0.35 5.44 cs2350hzt273mu50 33000 40×63 0.35 6.61 cs2350hzt333mu63 39000 35×80 0.35 6.52 cs2350hzd393ma80 47000 35×105 0.35 8.07 cs2350hzd473maa5 47000 40×80 0.35 7.79 cs2350hzt473mu80 47000 50×50 0.35 8.25 cs2350hzt473mac0 56000 50×63 0.35 9.00 cs2350hzt563mc63 68000 40×105 0.35 9.27 cs2350hzt683mua5 68000 50×80 0.35 10.07 cs2350hzt683mc80 82000 50×92 0.35 10.89 cs2350hzt823mc92 100000 50×105 0.35 11.75 cs2350hzt104mca5 50v 10000 35×40 0.30 4.00 cs2500hzd103ma40 15000 35×50 0.30 4.80 cs2500hzd153ma50 15000 40×40 0.30 4.80 cs2500hzt153mu40 18000 35×63 0.30 5.27 cs2500hzd183ma63 22000 40×50 0.30 5.15 cs2500hzt223mu50 27000 35×80 0.30 6.16 cs2500hzd273ma80 27000 40×63 0.30 6.05 cs2500hzt273mu63 33000 35×105 0.30 7.23 cs2500hzd333ma5 33000 50×50 0.30 7.75 cs2500hzt333mc50 39000 40×80 0.30 7.55 cs2500hzt393mu80 39000 50×63 0.30 8.40 cs2500hzt393mc63 47000 40×105 0.30 8.18 cs2500hzd473mua5 47000 50×63 0.30 9.19 cs2500hzt473mc63 56000 50×92 0.30 9.79 cs2500hzt563mc92 68000 50×105 0.30 10.42 cs2500hzt683mca5

63v 6800 35×40 0.25 3.60 cs2630hzd682ma40 12000 35×50 0.25 4.40 cs2630hzd123ma50 12000 40×40 0.25 4.52 cs2630hzt123mu40 15000 35×63 0.25 4.92 cs2630hzd153ma63 15000 40×50 0.25 4.80 cs2630hzt153mu50 18000 35×80 0.25 5.79 cs2630hzd183ma80 18000 40×63 0.25 5.39 cs2630hzt183mu63 22000 50×50 0.25 6.76 cs2630hzt223mc50 27000 35×105 0.25 6.53 cs2630hzd273maa5 27000 40×80 0.25 6.59 cs2630hzt273mu80 27000 50×63 0.25 7.34 cs2630hzt273mc63 33000 50×80 0.25 8.00 cs2630hzt333mc80 39000 40×105 0.25 7.53 cs2630hzt393mua5 39000 50×92 0.25 8.48 cs2630hzt393mc92 47000 50×63 0.25 8.99 cs2630hzt473mc63 80v 4700 35×40 0.20 3.30 cs2800hzd472ma40 6800 35×50 0.20 3.90 cs2800hzd682ma50 6800 40×40 0.20 3.90 cs2800hzt682mu40 8200 35×63 0.20 4.39 cs2800hzd822ma63 8200 40×50 0.20 4.29 cs2800hzt822mu50 10000 35×80 0.20 4.88 cs2800hzd103ma80 10000 40×50 0.20 4.73 cs2800hzt103mu50 12000 50×50 0.20 6.03 cs2800hzt123mc50 15000 35×105 0.20 6.13 cs2800hzd153maa5 15000 40×80 0.20 5.97 cs2800hzt153mu80 15000 50×63 0.20 6.65 cs2800hzt153mc63 18000 50×80 0.20 7.29 cs2800hzt183mc80 22000 40×105 0.20 6.95 cs2800hzt223mua5 22000 50×92 0.20 7.83 cs2800hzt223mc92 27000 50×105 0.20 8.38 cs2800hzt273mca5 100v 3300 35×40 0.20 3.20 cs2101hzd332ma40 4700 35×50 0.20 3.80 cs2101hzd472ma50 4700 40×40 0.20 3.80 cs2101hzd472mu40 5600 35×63 0.20 4.06 cs2101hzd562ma63 6800 40×50 0.20 4.57 cs2101hzt682mu50 8200 35×80 0.20 5.15 cs2101hzd822ma80 8200 40×63 0.20 5.02 cs2101hzt822mu63 8200 50×50 0.20 6.14 cs2101hzt822mc50 10000 35×105 0.20 6.38 cs2101hzd103maa5 12000 40×80 0.20 6.44 cs2101hzt123mu80 12000 50×63 0.20 7.17 cs2101hzt123mc63 15000 40×105 0.20 7.37 cs2101hzt153mua5 15000 50×80 0.20 8.01 cs2101hzt153mc80 18000 50×92 0.20 8.64 cs2101hzt183mc92 22000 50×105 0.20 9.32 cs2101hzt223mca5

125v 1800 35×35 0.20 5.90 cs2125hzt182ma35 2200 35×40 0.20 6.69 cs2125hzt222ma40 2700 35×50 0.20 7.60 cs2125hzt272ma50 2700 40×40 0.20 7.70 cs2125hzt272mu40 3300 35×63 0.20 8.80 cs2125hzt332ma63 3300 40×50 0.20 8.80 cs2125hzt332mu50 3900 35×50 0.20 10.20 cs2125hzt392ma50 3900 40×63 0.20 10.20 cs2125hzt392mu63 4700 40×80 0.20 8.50 cs2125hzt472mu80 5600 40×80 0.20 11.70 cs2125hzt562mu80 5600 50×50 0.20 9.50 cs2125hzt562mc50 6800 35×105 0.20 12.7 cs2125hzt682mca5 8200 50×63 0.20 12.5 cs2125hzt822mc63 10000 40×105 0.20 13.8 cs2125hzt103mua5 12000 50×92 0.20 18.1 cs2125hzt122mc92 15000 50×105 0.20 19.7 cs2125hzt152mca5 180v 1500 40×45 0.15 3.99 cs2181hzy152mu45 2200 40×55 0.15 4.80 cs2181hzy222mu55 2200 42×50 0.15 4.49 cs2181lin222mv50 2700 40×65 0.15 5.37 cs2181hzy272mu65 2700 50×50 0.15 4.84 cs2181lin272mc50 3300 42×65 0.15 5.56 cs2181lin332mv65 3900 42×75 0.15 6.03 cs2181lin392mv75 3900 50×60 0.15 5.87 cs2181lin392mc60 4700 50×70 0.15 6.42 cs2181lin472mc70 250v 1000 40×45 0.15 3.26 cs2251hzy102mu45 1500 40×55 0.15 3.96 cs2251hzy152mu55 1800 40×65 0.15 4.38 cs2251hzy182mu65 1800 42×55 0.15 4.06 cs2251lin182mv55 1800 50×50 0.15 3.95 cs2251lin182mc50 2200 42×65 0.15 4.54 cs2251lin222mv65 2700 42×80 0.15 5.02 cs2251lin272mv80 2700 50×60 0.15 4.88 cs2251lin272mc60 3300 50×70 0.15 5.38 cs2251lin332mc70 315v 680 40×60 0.15 3.35 cs2315hzy681mu60 820 40×70 0.15 3.96 cs2315hzy821mu70 820 50×60 0.15 4.33 cs2315lin821mc60 1000 40×80 0.15 4.51 cs2315hzy102mu80 1200 40×80 0.15 4.95 cs2315hzy122mu80 1200 50×65 0.15 5.21 cs2315lin122mc65 1500 50×75 0.15 5.72 cs2315lin152mc75 1800 42×90 0.15 5.65 cs2315lin272mv90 2200 50×70 0.15 5.26 cs2315lin272mc70 2700 50×80 0.15 5.51 cs2315lin332mc80

400v 470 40×45 0.15 2.92 cs2401hzy471mu45 680 40×60 0.15 3.50 cs2401hzy681mu60 680 42×60 0.15 3.53 cs2401lin681mv60 820 40×65 0.15 3.87 cs2401hzy821mu65 820 50×50 0.15 4.03 cs2401lin821mc50 1000 40×75 0.15 4.33 cs2401hzy102mu75 1200 40×75 0.15 4.73 cs2401hzy122mu75 1200 50×60 0.15 4.92 cs2401lin122mc60 1500 50×70 0.15 5.48 cs2401lin152mc70 420v 390 40×45 0.15 2.56 cs2421hzy391mu45 560 40×55 0.15 3.04 cs2421hzy561mu55 680 42×55 0.15 3.39 cs2421lin681mv55 820 40×70 0.15 3.72 cs2421hzy821mu70 820 42×65 0.15 3.76 cs2421lin821mv65 820 50×50 0.15 3.87 cs2421lin821mc50 1000 42×80 0.15 4.15 cs2421lin102mv80 1000 50×60 0.15 4.31 cs2421lin102mc60 1200 50×70 0.15 4.71 cs2421lin122mc70 450v   330 40×45 0.15 2.35 cs2451hzy331mu45 470 40×55 0.15 2.79 cs2451hzy471mu55 560 40×65 0.15 3.07 cs2451hzy561mu65 560 42×55 0.15 3.07 cs2451lin561mv55 680 42×65 0.15 3.43 cs2451lin681mv65 680 50×50 0.15 3.50 cs2451lin681mc50 820 42×80 0.15 3.75 cs2451lin821mv80 820 50×60 0.15 3.90 cs2451lin821mc60 1000 50×70 0.15 4.30 cs2451lin102mc70 500v 330 40×45 0.20 2.96 cs2501hzy331mu45 470 40×60 0.20 3.50 cs2501hzy471mu60 470 42×55 0.20 3.54 cs2501lin471mv55 560 40×65 0.20 3.87 cs2501hzy561mu65 680 42×65 0.20 4.31 cs2501lin681mv65 680 50×50 0.20 4.43 cs2501lin681mc50 820 42×80 0.20 4.72 cs2501lin821mv80 820 50×60 0.20 4.91 cs2501lin821mc60 1000 50×70 0.20 5.40 cs2501lin102mc70 550v 220 40×45 0.20 2.33 cs2551hzy221mu45 270 40×55 0.20 2.57 cs2551hzy271mu55 330 42×55 0.20 2.87 cs2551lin331mv55 390 40×65 0.20 3.12 cs2551hzy391mu65 390 42×75 0.20 3.15 cs2551lin391mv75 390 50×50 0.20 3.24 cs2551lin391mc50 560 42×80 0.20 3.77 cs2551lin561mv80 560 50×60 0.20 3.92 cs2551lin561mc60 680 50×70 0.20 4.31 cs2551lin681mc70 820 50×80 0.20 4.48 cs2551lin821mc80 600v 180 40×45 0.20 2.11 cs2601hzy181mu45 220 40×55 0.20 2.32 cs2601hzy221mu55 270 42×60 0.20 2.59 cs2601lin271mv60 330 40×65 0.20 2.87 cs2601hzy331mu65 390 42×65 0.20 3.15 cs2601lin391mv65 390 50×50 0.20 3.24 cs2601lin391mc50 470 42×80 0.20 3.45 cs2601lin471mv80 470 50×60 0.20 3.59 cs2601lin471mc60 560 50×70 0.20 3.91 cs2601lin561mc70

◆rated ripple current multipliers
      ●frequency multipliers

frequency （hz）	50	120	300	1k	10k	50k
16～250vdc	0.81	1.00	1.17	1.32	1.45	1.50
315～450vdc	0.77	1.00	1.16	1.30	1.41	1.43
500～600vdc	0.70	1.00	1.16	1.30	1.41	1.43








×the endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise when long life performance is required in actual use, the rms ripple current has to be reduced
