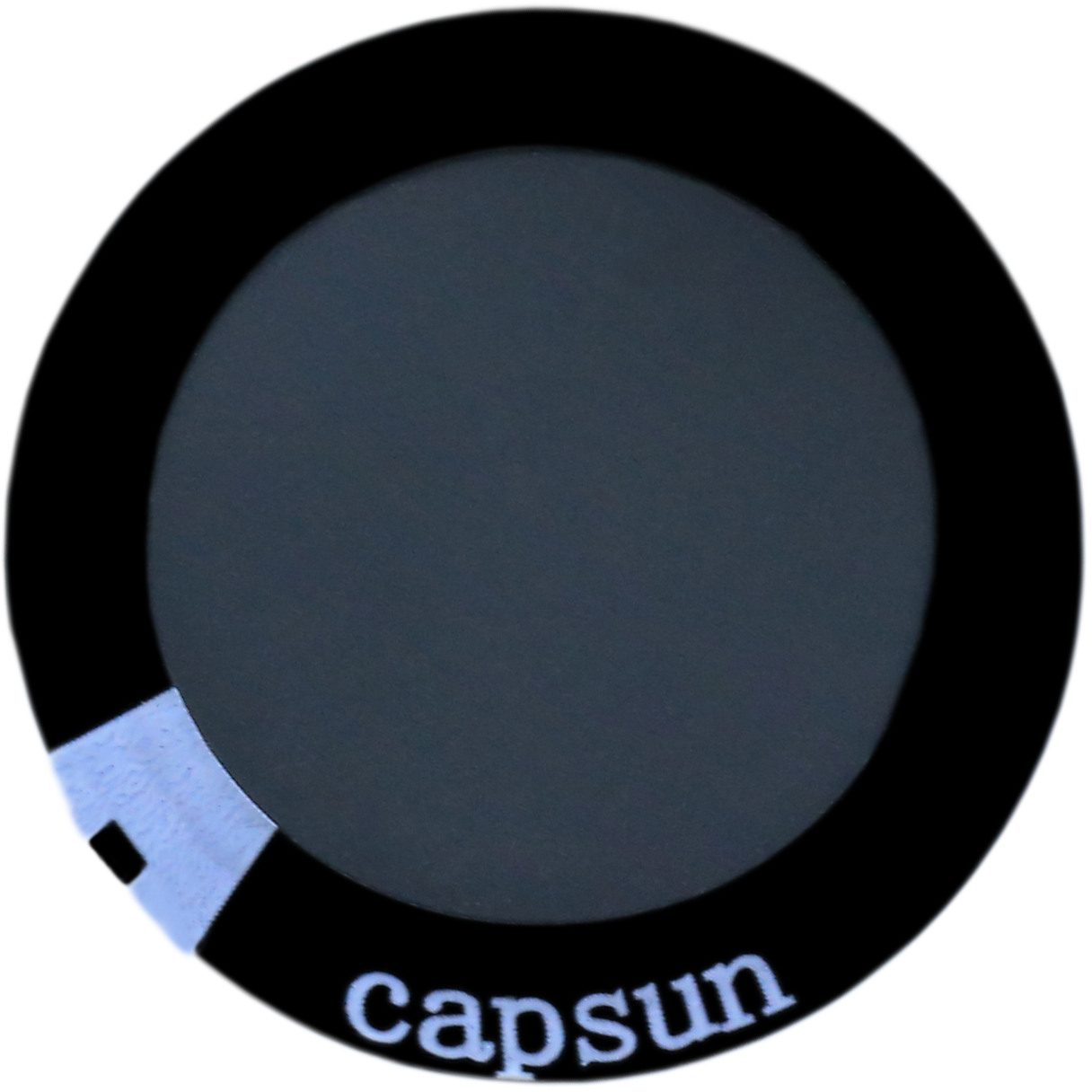

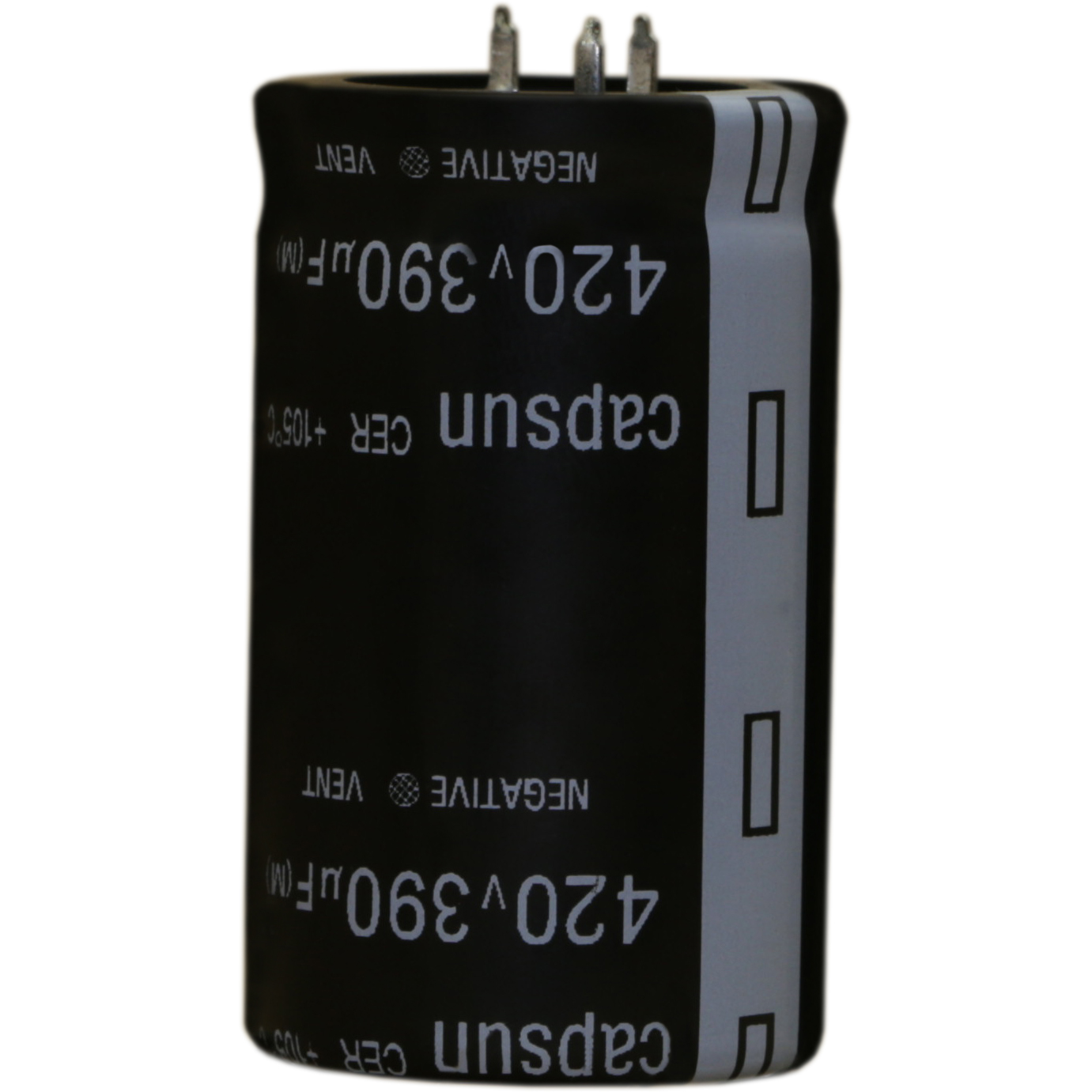

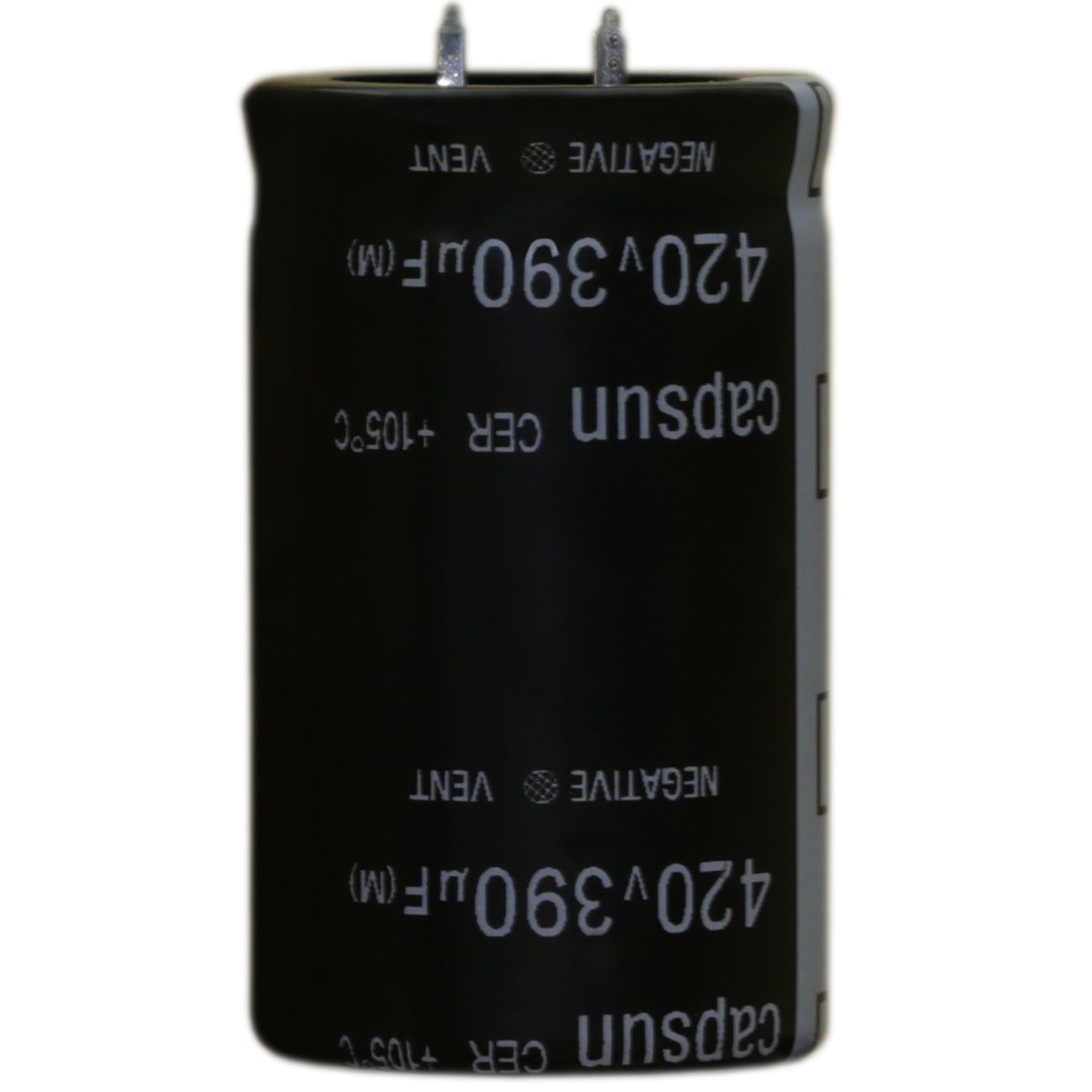

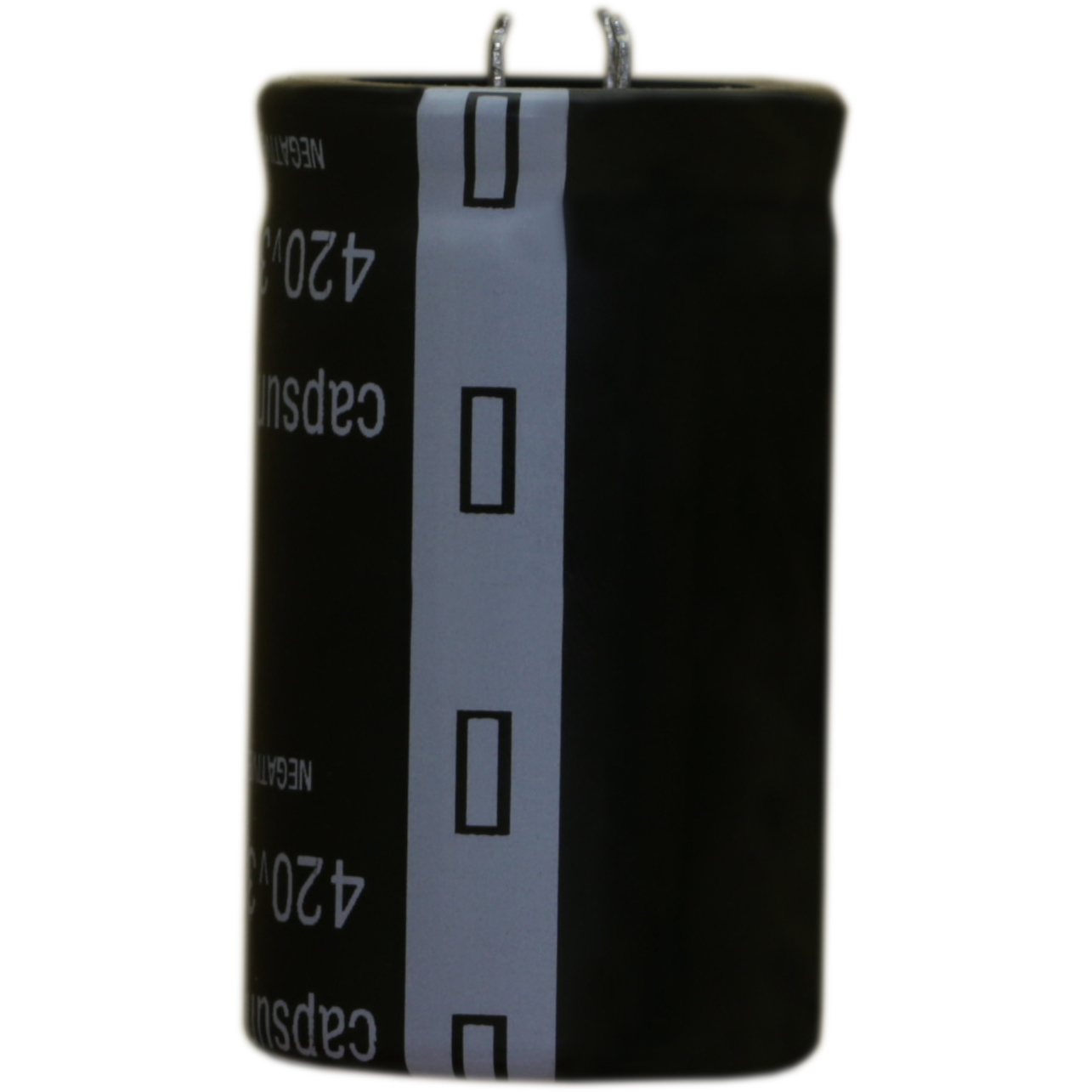

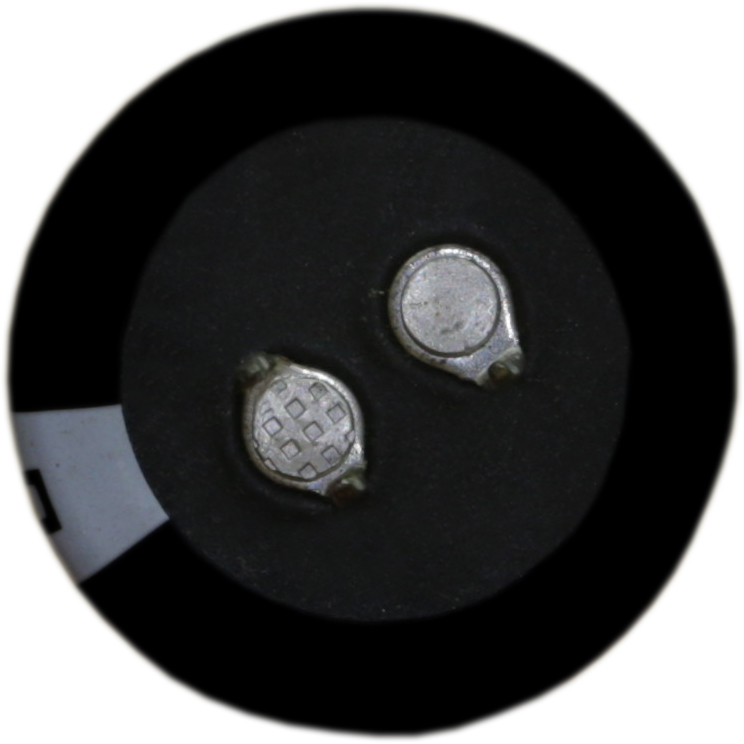

standard aluminum electrolytic capacitor-足球看盘软件
series：
sort：
category：
rated voltage range（vdc）：

download

working cap temperature. standard life(hours)
detailed
specification

105℃ 2000hours

items

characteristics

category temperature range

-40~ 105℃(35vdc,50vdc)、-25~ 105℃(160vdc~450vdc)

rated voltage range

16~500_vdc

capacitance tolerance

± 20%（m） 20℃、120hz

leakage current

i=0.02cv or 5ma,whichever is smaller
i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)

dissipation factor（max）

rated voltage（vdc）	35v		50v		160v～250v	315v～400v	420v～450v
rated capacitance（µf）	10000>c	c≧10000	10000>c	c≧10000	-	-	-
tanδmax	0.30	0.35	0.25	0.30	0.15	0.15	0.20

low temperature characteristics

rated voltage（vdc）	35、50v	160v～400v	420v～500v
z(-25℃)/z( 20℃)	4	4	8
z(-40℃)/z( 20℃)	10	-	-

endurance

the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 3,000 hours at 105℃

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

shelf life

the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 500 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

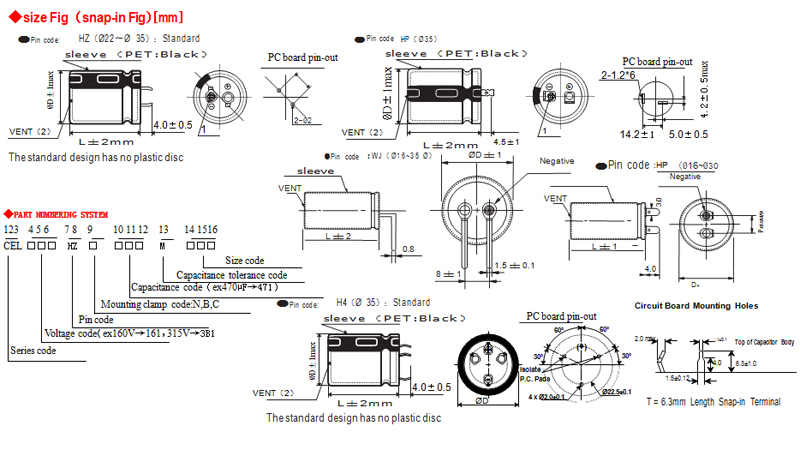

srandrad ratings

wv	cap [μf]	case size ød x l [mm]	esr 120hz,20℃ （[mω]	ripple current （ams/105℃,120hz）	par t no.
[v]	cap [μf]	case size ød x l [mm]	esr 120hz,20℃ （[mω]	ripple current （ams/105℃,120hz）	par t no.
16v	4700	22*20	0.16	1.60	cer016nj472ke20
	4700	22*25	0.16	1.77	cer016nj472ke25
	6800	22*25	0.11	2.60	cer016nj682ke25
	6800	25*20	0.110	1.80	cer016nj682kf20
	8200	22.25	0.090	3.10	cer016nj822ke25
	10000	22*30	0.075	3.80	cer016nj103ke30
	10000	25*25	0.075	3.80	cer016nj103kf25
	10000	30*20	0.143	2.40	cer016nj103kg20
	12000	22*30	0.084	4.50	cer016nj123ke30
	12000	25*25	0.119	4.50	cer016nj123kf25
	15000	22*35	0.119	5.30	cer016nj153ke35
	15000	25*30	0.054	5.30	cer016nj153kf30
	15000	35*20	0.055	3.20	cer016nj153ka20
	18000	22*40	0.045	5.60	cer016nj183ke40
	18000	25*30	0.045	5.60	cer016nj183kf30
	22000	22*45	0.065	6.10	cer016nj223ke45
	22000	30*30	0.065	6.10	cer016nj223kf35
	22000	25*45	0.031	6.30	cer016nj223kg30
	27000	30*35	0.031	6.30	cer016nj273kf45
	27000	25*50	0.025	6.80	cer016nj273kg35
	27000	25*50	0.025	6.80	cer016nj333kf50
	33000	30*40	0.025	6.80	cer016nj333kg40
	33000	35*30	0.025	6.8	cer016nj333ka30
	39000	30*45	0.022	6.95	cer016nj393kg45
	39000	35*35	0.022	6.95	cer016nj393ka35
	47000	35*50	0.030	7.50	cer016nj473kg50
	47000	35*40	0.030	7.50	cer016nj473ka40
	56000	35*45	0.020	8.70	cer016nj563ka45
	56000	40*40	0.022	9.00	cer016nj563kd40
	68000	35*50	0.018	9.00	cer016nj683ka50
	82000	35*63	0.016	10.00	cer016nj823ka63
	82000	40*50	0.016	10.30	cer016nj823kd50
	100000	35*80	0.015	11.00	cer016nj104ka80
	100000	40*63	0.018	11.40	cer016nj104kd63
	120000	35*105	0.014	12.81	cer016nj124ka105
	120000	40*80	0.017	12.40	cer016nj124kd80
	120000	50*50	0.014	13.17	cer016nj124kc50
	150000	50*63	0.012	14.40	cer016nj154kc63
	180000	40*105	0.013	14.85	cer016nj184kda5
	180000	50*80	0.011	15.69	cer016nj184kc80
	220000	50*92	0.010	16.73	cer016nj224kc92
	270000	50*105	0.009	17.79	cer016nj274kca5
25v	3300	22*20	0.177	1.60	cer025nj332ke20
	3300	22*25	0.161	1.70	cer025nj332ke25
	4700	22*25	0.110	2.40	cer025nj472ke25
	4700	22*25	0.125	1.80	cer025nj472kf20
	5600	22*25	0.095	1.90	cer025nj562ke25
	6800	22*30	0.078	2.75	cer025nj682ke30
	6800	25*25	0.078	3.50	cer025nj682kf25
	6800	30*20	0.078	2.30	cer025nj682kg20
	8200	22*30	0.065	3.60	cer025nj822ke30
	8200	25*25	0.065	3.60	cer025nj822kf25
	10000	22*25	0.058	3.80	cer025nj103ke25
	10000	25*30	0.058	3.80	cer025nj103kf30
	10000	30*25	0.136	3.28	cer025nj103kg25
	10000	35*20	0.060	2.70	cer025nj103ka20
	12000	22*40	0.050	4.10	cer025nj123ke40
	12000	25*35	0.050	4.10	cer025nj123kf35
	12000	30*30	0.050	4.10	cer025nj123kg30
	15000	22*50	0.040	4.60	cer025nj153ke50
	15000	25*40	0.040	4.60	cer025nj153kf40
	15000	30*30	0.040	4.60	cer025nj153kg30
	18000	25*45	0.035	5.50	cer025nj183kf45
	18000	30*35	0.035	5.50	cer025nj183kg35
	22000	25*50	0.030	6.10	cer025nj223kf50
	22000	30*40	0.030	6.10	cer025nj223kg40
	27000	30*45	0.023	6.20	cer025nj273kg45
	27000	35*35	0.023	6.20	cer025nj273ka35
	33000	30*50	0.020	6.80	cer025nj333kg50
	33000	35*40	0.020	6.80	cer025nj333ka40
	33000	40*40	0.026	7.30	cer025nj333kd40
	39000	35*45	0.020	7.40	cer025nj393ka45
	39000	40*40	0.020	8.00	cer025nj393kd40
	47000	35*50	0.024	8.00	cer025nj473ka50
	47000	35*63	0.017	8.30	cer025nj473ka63
	56000	35*70	0.015	9.10	cer025nj563ka70
	56000	40*63	0.015	9.50	cer025nj563kd63
	56000	35*63	0.024	8.60	cer025nj563ka63
	56000	40*50	0.016	9.00	cer025nj563kd50
	68000	35*80	0.013	10.40	cer025nj683ka80
	68000	40*63	0.017	10.25	cer025nj683kd63
	82000	50*50	0.016	12.29	cer025nj823kc50
	100000	35*105	0.010	11.97	cer025nj104ka105
	100000	50*63	0.014	13.45	cer025nj104kc63
	100000	40*80	0.012	12.00	cer025nj104kd80
	120000	50*80	0.012	15.29	cer025nj124kc80
	150000	40*105	0.011	14.07	cer025nj154kd105
	150000	50*92	0.011	16.01	cer025nj154kc92
	180000	50*105	0.010	16.89	cer025nj184kc105
35v	2200	22*20	0.211	1.40	cer035nj222ke20
	2200	22*25	0.166	1.50	cer035nj222ke25
	3300	22*25	0.110	2.30	cer035nj332ke25
	3300	25*20	0.120	1.70	cer035nj332kf20
	3900	22*25	0.095	2.70	cer035nj392ke25
	4700	22*20	0.080	3.30	cer035nj472ke30
	4700	22×25	0.3	1.87	cer350hzn472mp25
	5600	22×25	0.3	2.04	cer350hzn562mp25
	5600	25.4×25	0.3	2	cer161hzn821mq25
	6800	22×30	0.3	2.36	cer350hzn682mp30
	6800	25.4×25	0.3	2.21	cer350hzn682mq25
	8200	22×35	0.3	2.65	cer350hzn822mp35
	8200	25.4×30	0.3	2.49	cer350hzn822mq30
	8200	30×25	0.3	2.62	cer350hzn822mr25
	10000	22×40	0.35	3	cer350hzn103mp40
	10000	25.4×35	0.35	2.88	cer350hzn103mq35
	10000	30×25	0.35	2.9	cer350hzn103mr25
	12000	22×50	0.35	3.47	cer350hzn123mp50
	12000	25.4×35	0.35	3.15	cer350hzn123mq35
	12000	30×30	0.35	3.25	cer350hzn123mr30
	12000	35×25	0.35	3.2	cer350hzn123ma25
	15000	25.4×40	0.35	3.61	cer350hzn153mq40
	15000	30×35	0.35	3.78	cer350hzn153mr35
	15000	35×25	0.35	3.6	cer350hzn153ma25
	18000	25.4×50	0.35	4.145	cer350hzn183mq50
	18000	30×40	0.35	4.3	cer350hzn183mr40
	18000	35×30	0.35	4.1	cer350hzn183ma30
	22000	30×50	0.35	5	cer350hzn223mr50
	22000	35×35	0.35	4.64	cer350hzn223ma35
	27000	35×40	0.35	5.37	cer350hzn273ma40
	33000	35×50	0.35	6	cer350hzn333ma50
	33000	35*63	0.018	7.80	cer035nj333ka63
	39000	35*63	0.015	7.90	cer035nj393ka63
	39000	35*70	0.015	8.60	cer035nj393ka70
	39000	40*50	0.017	8.00	cer035nj393kd50
	47000	35*80	0.015	9.50	cer035nj473ka80
	47000	40*63	0.016	9.60	cer035nj473kd63
	56000	50*50	0.015	10.94	cer035nj563kc50
	56000	40*80	0.015	10.30	cer035nj563kd80
	68000	35*105	0.010	10.62	cer035nj683ka105
	68000	50*63	0.013	11.93	cer035nj683kc63
	82000	40*105	0.012	12.02	cer035nj823kd105
	82000	40*105	0.012	13.06	cer035nj823kc80
	100000	50*92	0.011	13.97	cer035nj104kc92
	120000	50*105	0.010	14.86	cer035nj124kc105
50v	1500	22*20	0.225	1.20	cer050nj152ke20
	1500	22*25	0.220	1.25	cer050nj152ke25
	2200	22*25	0.150	1.80	cer050nj222ke25
	2200	25*20	0.175	1.40	cer050nj222kf20
	2700	22×25	0.25	1.65	cer500hzn272mp25
	3300	22×30	0.25	1.92	cer500hzn332mp30
	3300	25.4×25	0.25	1.76	cer500hzn332mq25
	3900	22×30	0.25	2.08	cer500hzn392mp30
	3900	25.4×25	0.25	2.04	cer500hzn392mq25
	4700	22×35	0.25	2.43	cer500hzn472mp35
	4700	25.4×30	0.25	2.5	cer500hzn472mq30
	4700	30×25	0.25	2.29	cer500hzn472mr25
	5600	22×40	0.25	2.63	cer500hzn562mp40
	5600	25.4×35	0.25	2.61	cer500hzn562mq35
	5600	30×25	0.25	2.8	cer500hzn562mr25
	6800	22×50	0.25	3.05	cer500hzn682mp50
	6800	25.4×40	0.25	2.94	cer500hzn682mq40
	6800	30×30	0.25	3.3	cer500hzn682mr30
	6800	35×25	0.25	2.77	cer500hzn682ma25
	8200	25.4×45	0.25	3.6	cer500hzn822mq45
	8200	30×35	0.25	3.6	cer500hzn822mr35
	8200	35×30	0.25	3.6	cer500hzn822ma30
	10000	25.4×50	0.25	4	cer500hzn103mq50
	10000	30×40	0.25	4	cer500hzn103mr40
	10000	35×30	0.25	4	cer500hzn103ma30
	12000	30×50	0.25	4.29	cer500hzn123mr50
	12000	35×35	0.25	4.37	cer500hzn123ma35
	15000	35×40	0.25	4.5	cer500hzn153ma40
	18000	35×50	0.25	5.3	cer500hzn183ma50
	22000	35*70	0.025	8.60	cer050nj223ka70
	22000	35*50	0.025	7.60	cer050nj223ka50
	27000	35*80	0.013	9.30	cer050nj273ka80
	27000	35*63	0.018	8.30	cer050nj273ka63
	27000	40*50	0.025	8.10	cer050nj273kd50
	33000	35*80	0.015	9.20	cer050nj333ka80
	33000	40*63	0.018	9.10	cer050nj333kd63
	33000	50*50	0.018	10.48	cer050nj333kc50
	47000	50*63	0.013	11.54	cer050nj473kc63
	47000	35*105	0.014	10.27	cer050nj473ka105
	56000	40*105	0.012	11.47	cer050nj563kd105
	56000	50*80	0.012	12.46	cer050nj563kc80
	68000	50*92	0.011	13.17	cer050nj683kc92
	82000	50*105	0.011	13.87	cer050nj823kc105
63v	1000	22*20	0.380	1.20	cer063nj102ke20
	1000	22*25	0.332	1.20	cer063nj102ke25
	1500	22*25	0.221	1.70	cer063nj152ke25
	1500	25*20	0.250	1.30	cer063nj152kf20
	2200	22*30	0.151	2.50	cer063nj222ke30
	2200	25*25	0.151	2.50	cer063nj222kf25
	2200	30*20	0.170	1.50	cer063nj222kg20
	2700	22*35	0.123	3.70	cer063nj272ke35
	2700	25*30	0.123	3.70	cer063nj272kf30
	3300	22*40	0.110	4.10	cer063nj332ke40
	3300	25*30	0.110	4.10	cer063nj332kf30
	3300	30*25	0.110	4.10	cer063nj332kg25
	3300	35*20	0.125	1.70	cer063nj332ka20
	3900	22.45	0.100	4.40	cer063nj392ke45
	3900	25*35	0.100	4.40	cer063nj392kf35
	3900	30*30	0.100	4.40	cer063nj392kg30
	4700	22*50	0.080	4.90	cer063nj472ke50
	4700	25*40	0.080	4.90	cer063nj472kf40
	4700	30*30	0.080	4.90	cer063nj472kg30
	4700	35*25	0.080	4.90	cer063nj472ka25
	5600	35*30	0.070	5.40	cer063nj562ka30
	5600	25*45	0.070	5.40	cer063nj562kf45
	5600	30*35	0.070	5.40	cer063nj562kg35
	6800	25*50	0.060	5.80	cer063nj682kf50
	6800	30*40	0.060	5.80	cer063nj682kg40
	6800	35*30	0.060	5.80	cer063nj682ka30
	8200	30*45	0.067	6.00	cer063nj822kg45
	8200	35*35	0.067	6.00	cer063nj822ka35
	10000	40*40	0.028	6.60	cer063nj103kd40
	10000	35*40	0.033	6.50	cer063nj103ka40
	12000	35*63	0.019	7.70	cer063nj123ka63
	12000	35*50	0.028	7.20	cer063nj123ka50
	12000	40*40	0.035	7.15	cer063nj123kd40
	15000	35*70	0.016	8.50	cer063nj153ka70
	15000	35*63	0.028	7.70	cer063nj153ka63
	18000	35*80	0.023	9.40	cer063nj183ka80
	18000	40*63	0.028	9.25	cer063nj183kd63
	27000	40*80	0.018	10.00	cer063nj273kd80
	27000	35*105	0.015	10.38	cer063nj273ka105
	27000	50*50	0.018	10.86	cer063nj273kc50
	33000	40*105	0.015	11.76	cer063nj333kd105
	33000	50*63	0.017	11.57	cer063nj333kc63
	47000	50*80	0.013	12.78	cer063nj473kc80
	51000	50*92	0.012	13.34	cer063nj513kc92
	56000	50*105	0.012	13.93	cer063nj563kc105
80v	680	22*20	0.450	1.00	cer080nj681ke20
	680	22*25	0.390	1.00	cer080nj681ke25
	1000	22*25	0.265	1.50	cer080nj102ke25
	1000	25*20	0.300	1.20	cer080nj102kf20
	1200	22*25	0.220	1.80	cer080nj122ke25
	1500	22*30	0.177	2.30	cer080nj152ke30
	1500	25*25	0.177	2.30	cer080nj152kf25
	1500	30*20	0.200	1.40	cer080nj152kg20
	1800	22*35	0.147	2.50	cer080nj182ke35
	1800	25*30	0.147	2.50	cer080nj182kf30
	2200	22*40	0.155	2.70	cer080nj222ke40
	2200	25*30	0.155	2.70	cer080nj222kf30
	2200	30*25	0.155	2.70	cer080nj222kg25
	2200	35*20	0.135	1.70	cer080nj222ka20
	2700	22*45	0.098	2.80	cer080nj272ke45
	2700	25*35	0.098	2.80	cer080nj272kf35
	2700	30*30	0.098	2.80	cer080nj272kg30
	3300	22*50	0.085	3.20	cer080nj332ke50
	3300	25*40	0.085	3.20	cer080nj332kf40
	3300	30*30	0.085	3.20	cer080nj332kg30
	3900	25*45	0.080	3.60	cer080nj392kf45
	3900	30*35	0.080	3.60	cer080nj392kg35
	4700	25*50	0.065	4.10	cer080nj472ka50
	4700	30*40	0.072	4.10	cer080nj472kg40
	5600	30*45	0.055	4.60	cer080nj562kg45
	5600	35*35	0.055	4.60	cer080nj562ka35
	6800	30*50	0.045	5.20	cer080nj682kg50
	6800	35*40	0.045	5.20	cer080nj682ka40
	8200	35*50	0.040	5.80	cer080nj822ka50
	8200	40*40	0.040	5.83	cer080nj822kd40
	10000	35*63	0.033	6.40	cer080nj103ka63
	12000	35*70	0.020	8.10	cer080nj123ka70
	12000	40*50	0.025	7.50	cer080nj123kd50
	15000	35*80	0.020	8.80	cer080nj153ka80
	15000	40*63	0.020	8.50	cer080nj153kd63
	18000	40*80	0.014	10.30	cer080nj183kd80
	18000	50*50	0.023	10.00	cer080nj183kc50
	22000	35*105	0.015	11.35	cer080nj223ka105
	22000	50*63	0.019	9.86	cer080nj223kc63
	27000	40*105	0.015	11.35	cer080nj273kd105
	27000	50*80	0.015	12.33	cer080nj273kc80
	33000	50*92	0.014	13.37	cer080nj333kc92
	39000	50*105	0.013	14.34	cer080nj393kc105
100v	470	22*20	0.450	1.00	cer100nj471ke20
	470	22*25	0.450	1.00	cer100nj471ke25
	560	22*25	0.450	1.10	cer100nj561ke25
	680	22*25	0.400	1.30	cer100nj681ke25
	680	25*20	0.320	1.60	cer100nj681kf20
	1000	22*30	0.390	1.10	cer100nj102ke30
	1000	25*25	0.220	2.00	cer100nj102kf25
	1000	30*20	0.20	2.00	cer100nj102kg20
	1200	22*35	0.195	2.30	cer100nj122ke35
	1200	25*30	0.180	2.30	cer100nj122kf30
	1500	22*40	0.155	2.60	cer100nj152ke40
	1500	25*30	0.155	2.60	cer100nj152kf30
	1500	30*25	0.155	2.60	cer100nj152kg25
	1500	35*20	0.177	1.50	cer100nj152ka20
	1800	22*45	0.130	2.80	cer100nj182ke45
	1800	25*35	0.140	2.80	cer100nj182kf35
	1800	30*30	0.140	2.80	cer100nj182kg30
	2200	22*50	0.121	3.10	cer100nj222ke50
	2200	25*40	0.121	3.10	cer100nj222kf40
	2200	30*30	0.121	3.10	cer100nj222kg30
	2200	35*25	0.121	3.14	cer100nj222ka25
	2700	25*45	0.104	3.70	cer100nj272kf45
	2700	30*35	0.104	3.70	cer100nj272kg35
	2700	35*30	0.104	3.70	cer100nj272ka30
	3300	25*50	0.090	4.10	cer100nj332kf50
	3300	30*40	0.090	4.10	cer100nj332kg40
	3900	30*45	0.080	4.50	cer100nj392kg45
	3900	35*35	0.080	4.50	cer100nj392ka35
	4700	30*50	0.070	5.10	cer100nj472kg50
	4700	35*40	0.070	5.10	cer100nj472ka40
	5600	40*40	0.060	5.80	cer100nj562kd40
	5600	35*45	0.060	5.80	cer100nj562ka45
	6800	35*50	0.050	6.60	cer100nj682ka50
	6800	35*63	0.024	7.20	cer100nj682ka63
	6800	40*50	0.026	7.40	cer100nj682kd50
	8200	35*63	0.040	7.00	cer100nj822ka63
	8200	35*70	0.021	8.00	cer100nj822ka70
	8200	40*50	0.040	7.30	cer100nj822kd50
	8200	40*63	0.021	8.40	cer100nj822kd63
160v	470	22×25	0.15	1.4	cer161hzn471mp25
	560	22×30	0.15	1.5	cer161hzn561mp30
	680	22×30	0.15	1.7	cer161hzn681mp30
	680	25.4×25	0.15	1.7	cer161hzn681mq25
	820	22×35	0.15	1.8	cer161hzn821mp35
	820	25.4×30	0.15	2	cer161hzn821mq30
	820	30×25	0.15	2	cer161hzn821mr25
	1000	22×40	0.15	2.2	cer161hzn102mp40
	1000	25.4×35	0.15	2.2	cer161hzn102mq35
	1000	30×25	0.15	2.2	cer161hzn102mr25
	1200	25.4×40	0.15	2.3	cer161hzn122mq40
	1200	30×30	0.15	2.3	cer161hzn122mr30
	1200	35×25	0.15	2.3	cer161hzn122ma25
	1500	25.4×45	0.15	2.5	cer161hzn152mq45
	1500	30×35	0.15	2.5	cer161hzn152mr35
	1500	35×30	0.15	2.5	cer161hzn152ma30
	1800	25.4×50	0.15	2.7	cer161hzn182mq50
	1800	30×40	0.15	2.7	cer161hzn182mr40
	1800	35×30	0.15	2.7	cer161hzn182ma30
	2200	30×45	0.15	2.9	cer161hzn222mr45
	2200	35×35	0.15	2.9	cer161hzn222ma35
	2700	30×50	0.15	3.1	cer161hzn272mr50
	2700	35×40	0.15	3.1	cer161hzn272ma40
	3300	35×50	0.15	3.3	cer161hzn332ma50
180v	390	22×25	0.15	1.3	cer181hzn391mp25
	470	22×30	0.15	1.4	cer181hzn471mp30
	560	22×35	0.15	1.5	cer181hzn561mp30
	560	22×30	0.15	1.5	cer181hzn561mq25
	680	25.4×25	0.15	1.7	cer181hzn681mp35
	680	25.4×30	0.15	1.7	cer181hzn681mq30
	820	22×40	0.15	2	cer181hzn821mp40
	820	25.4×30	0.15	2	cer181hzn821mq30
	820	30×25	0.15	2	cer181hzn821mr25
	1000	22×45	0.15	2.2	cer181hzn102mp45
	1000	25.4×40	0.15	2.2	cer181hzn102mq40
	1000	30×30	0.15	2.2	cer181hzn102mr30
	1000	35×25	0.15	2.2	cer181hzn102ma25
	1200	25.4×45	0.15	2.3	cer181hzn122mq45
	1200	30×35	0.15	2.3	cer181hzn122mr35
	1200	35×30	0.15	2.3	cer181hzn122ma30
	1500	25.4×50	0.15	2.5	cer181hzn152mq50
	1500	30×40	0.15	2.5	cer181hzn152mr40
	1500	35×30	0.15	2.5	cer181hzn152ma30
	1800	30×45	0.15	2.7	cer181hzn182mr45
	1800	35×35	0.15	2.7	cer181hzn182ma35
	2200	30×50	0.15	2.9	cer181hzn222mr50
	2200	35×40	0.15	2.9	cer181hzn222ma40
	2700	35×50	0.15	3.1	cer181hzn272ma50
200v	390	22×25	0.15	1.31	cer201hzn391mp25
	470	22×30	0.15	1.45	cer201hzn471mp30
	560	22×30	0.15	1.67	cer201hzn561mp30
	560	25.4×25	0.15	1.67	cer201hzn561mq25
	680	22×40	0.15	1.75	cer201hzn681mp40
	680	25.4×30	0.15	1.75	cer201hzn681mq35
	820	22×45	0.15	2.04	cer201hzn821mp45
	820	25.4×35	0.15	2.04	cer201hzn821mq35
	820	30×25	0.15	2.04	cer201hzn821mr25
	1000	22×50	0.15	2.3	cer201hzn102mp50
	1000	25.4×45	0.15	2.3	cer201hzn102mq45
	1000	30×30	0.15	2.3	cer201hzn102mr30
	1000	35×25	0.15	2.3	cer201hzn102ma25
	1200	25.4×50	0.15	2.65	cer201hzn122mq50
	1200	30×35	0.15	2.65	cer201hzn122mr35
	1200	35×30	0.15	2.65	cer201hzn122ma30
	1500	30×40	0.15	2.8	cer201hzn152mr40
	1500	35×30	0.15	2.8	cer201hzn152ma30
	1800	30×45	0.15	3.08	cer201hzn182mr45
	1800	35×40	0.15	3.08	cer201hzn182ma40
	2200	35×45	0.15	3.48	cer201hzn222ma45
250v	220	22×25	0.15	1	cer251hzn221mp25
	270	22×25	0.15	1.1	cer251hzn271mp25
	330	22×30	0.15	1.2	cer251hzn331mp30
	330	25.4×25	0.15	1.2	cer251hzn331mq25
	390	22×35	0.15	1.3	cer251hzn391mp35
	390	25.4×25	0.15	1.3	cer251hzn391mq25
	470	22×40	0.15	1.4	cer251hzn471mp40
	470	25.4×30	0.15	1.4	cer251hzn471mq30
	470	30×25	0.15	1.4	cer251hzn471mr25
	560	22×45	0.15	1.5	cer251hzn561mp45
	560	25.4×35	0.15	1.5	cer251hzn561mq35
	560	30×25	0.15	1.5	cer251hzn561mr25
	680	22×50	0.15	1.7	cer251hzn681mp50
	680	25.4×40	0.15	1.7	cer251hzn681mq40
	680	30×30	0.15	1.7	cer251hzn681mr30
	680	35×25	0.15	1.7	cer251hzn681ma25
	820	25.4×45	0.15	2	cer251hzn821mq45
	820	30×45	0.15	2	cer251hzn821mr45
	820	35×30	0.15	2	cer251hzn821ma30
	1000	30×40	0.15	2.2	cer251hzn102mr40
	1000	35×30	0.15	2.2	cer251hzn102ma30
	1200	30×45	0.15	2.3	cer251hzn122mr45
	1200	35×35	0.15	2.3	cer251hzn122ma35
	1500	35×45	0.15	2.5	cer251hzn152ma45
	1800	35×50	0.15	2.7	cer251hzn182ma50
	2200	35*63	0.090	4.70	cer250nj222ka63
	2200	35*80	0.090	4.90	cer250nj222ka80
	2200	40*63	0.090	4.90	cer250nj222kd63
	2700	35*80	0.074	5.60	cer250nj272ka80
	2700	40*63	0.074	5.60	cer250nj272kd63
	2700	40*80	0.043	6.30	cer250nj272kd80
	2700	50*50	0.074	6.77	cer250nj272kc50
	3300	40*80	0.060	7.00	cer250nj332kd80
	3300	50*63	0.060	7.79	cer250nj332kc63
	3900	35*105	0.051	7.47	cer250nj392ka105
	3900	40*80	0.051	7.35	cer250nj392kd80
	4700	40*105	0.042	8.88	cer250nj472kd105
	4700	50*80	0.042	9.65	cer250nj472kc80
	5600	50*92	0.036	10.80	cer250nj562kc92
	6800	50*105	0.029	12.16	cer250nj682kc105
315v	150	22×25	0.15	0.82	cer3b1hzn151mp25
	180	22×30	0.15	0.9	cer3b1hzn181mp30
	220	22×30	0.15	1	cer3b1hzn221mp30
	220	25.4×25	0.15	1	cer3b1hzn221mq25
	270	22×35	0.15	1.1	cer3b1hzn271mp35
	270	25.4×30	0.15	1.1	cer3b1hzn271mq30
	330	22×45	0.15	1.2	cer3b1hzn331mp45
	330	25.4×35	0.15	1.2	cer3b1hzn331mq35
	330	30×25	0.15	1.2	cer3b1hzn331mr25
	390	22×45	0.15	1.3	cer3b1hzn391mp45
	390	25.4×40	0.15	1.3	cer3b1hzn391mq40
	470	30*40	0.423	2.30	cer315nj471kg40
	470	35*35	0.423	2.30	cer315nj471ka35
	560	30*45	0.355	2.60	cer315nj561kg45
	560	35*35	0.355	2.60	cer315nj561ka35
	680	35*45	0.293	2.90	cer315nj681ka45
	820	35*50	0.243	3.30	cer315nj821ka50
	1000	35*63	0.218	2.70	cer315nj102ka63
	1200	35*70	0.182	3.20	cer315nj122ka70
	1200	40*50	0.202	2.90	cer315nj122kd50
	1500	35*80	0.153	3.60	cer315nj152ka80
	1500	40*63	0.162	3.40	cer315nj152kd63
	1800	40*80	0.113	4.50	cer315nj182kd80
350v	270	30×25	0.15	1.1	cer351hzn271mr25
	330	22×45	0.15	1.2	cer351hzn331mp45
	330	25.4×40	0.15	1.2	cer351hzn331mq40
	330	30×30	0.15	1.2	cer351hzn331mr30
	390	25.4×45	0.15	1.3	cer351hzn391mq45
	390	30×35	0.15	1.3	cer351hzn391mr35
	470	25.4×50	0.15	1.4	cer351hzn471mq50
	470	30×35	0.15	1.4	cer351hzn471mr35
	470	35×30	0.15	1.4	cer351hzn471ma30
	560	30×45	0.15	1.5	cer351hzn561mr45
	560	35×35	0.15	1.5	cer351hzn561ma35
	680	30×50	0.15	1.7	cer351hzn681mr50
	680	35×40	0.15	1.7	cer351hzn681ma40
	820	35×45	0.15	1.9	cer351hzn821ma45
	1000	35*63	0.250	3.80	cer351nj102ka63
	1000	40*50	0.250	3.80	cer351nj102kd50
	1200	35*80	0.210	4.40	cer351nj122ka80
	1200	40*63	0.210	4.40	cer351nj122kd63
	1200	50*50	0.207	5.18	cer351nj122kc50
	1500	50*63	0.166	6.01	cer351nj152kc63
	1800	35*105	0.138	5.79	cer351nj182ka105
	1800	40*80	0.138	5.85	cer351nj182kd80
	1800	50*80	0.138	5.85	cer351nj182kc80
	2200	40*105	0.113	6.91	cer351nj222kd15
	2200	50*92	0.113	7.79	cer351nj222kc92
	2700	50*105	0.092	8.80	cer351nj272kc105
400v	100	22×25	0.15	0.7	cer401hzn101mp25
	120	22×30	0.15	0.75	cer401hzn121mp30
	150	22×30	0.15	0.88	cer401hzn151mp30
	150	25.4×25	0.15	0.88	cer401hzn151mq25
	180	22×35	0.15	0.95	cer401hzn181mp35
	180	25.4×30	0.15	0.95	cer401hzn181mq30
	220	22×45	0.15	1.1	cer401hzn221mp45
	220	25.4×35	0.15	1.1	cer401hzn221mq35
	220	30×25	0.15	1.1	cer401hzn221mr25
	270	22×50	0.15	1.22	cer401hzn271mp50
	270	25.4×40	0.15	1.22	cer401hzn271mq40
	270	30×30	0.15	1.22	cer401hzn271mr30
	270	35×25	0.15	1.22	cer401hzn271ma25
	330	25.4×45	0.15	1.44	cer401hzn331mq45
	330	30×35	0.15	1.44	cer401hzn331mr35
	330	35×30	0.15	1.44	cer401hzn331ma30
	390	25.4×50	0.15	1.55	cer401hzn391mq50
	390	30×40	0.15	1.55	cer401hzn391mr40
	390	35×30	0.15	1.55	cer401hzn391ma30
	470	30×45	0.15	1.68	cer401hzn471mr45
	470	35×35	0.15	1.68	cer401hzn471ma35
	560	35×50	0.15	1.9	cer401hzn561ma50
	560	35×40	0.15	1.9	cer401hzn561ma40
	680	35×45	0.15	2.12	cer401hzn681ma45
	680	40*50	0.270	3.40	cer401nj681kd50
	820	35*63	0.222	3.55	cer401nj821ka63
	820	40*50	0.222	3.40	cer401nj821kd50
	1000	35*80	0.179	3.60	cer401nj102ka80
	1000	40*63	0.199	4.20	cer401nj102kd63
	1000	50*50	0.199	4.76	cer401nj102kc50
	1200	35*80	0.152	4.52	cer401nj122ka80
	1200	50*63	0.166	4.52	cer401nj122kd63
	1200	50*63	0.166	5.47	cer401nj122kc63
	1500	35*105	0.122	5.44	cer401nj152ka105
	1500	40*80	0.122	5.50	cer401nj152kd80
	1500	50*80	0.133	6.47	cer401nj152kc80
	1800	40*105	0.101	6.53	cer401nj182kd105
	1800	50*92	0.111	7.35	cer401nj182kc92
	2200	50*105	0.900	8.43	cer401nj222kc105
420v	82	22×25	0.2	0.64	cer421hzn820mp25
	100	22×25	0.2	0.66	cer421hzn101mp25
	100	25.4×25	0.2	0.66	cer421hzn101mq25
	120	22×30	0.2	0.81	cer421hzn121mp30
	120	25.4×25	0.2	0.81	cer421hzn121mq25
	150	22×35	0.2	0.84	cer421hzn151mp35
	150	25.4×30	0.2	0.84	cer421hzn151mq30
	150	30×25	0.2	0.84	cer421hzn151mr25
	180	22×40	0.2	0.91	cer421hzn181mp40
	180	25.4×30	0.2	0.91	cer421hzn181mq30
	180	30×25	0.2	0.91	cer421hzn181mr25
	220	22×45	0.2	1.05	cer421hzn221mp45
	220	25.4×35	0.2	1.05	cer421hzn221mq35
	220	30×30	0.2	1.05	cer421hzn221mr30
	220	35×25	0.2	1.05	cer421hzn221ma25
	270	25.4×40	0.2	1.25	cer421hzn271mq40
	270	30×30	0.2	1.25	cer421hzn271mr30
	270	35×25	0.2	1.25	cer421hzn271ma25
	330	25.4×50	0.2	1.42	cer421hzn331mq50
	330	30×35	0.2	1.42	cer421hzn331mr35
	330	35×30	0.2	1.42	cer421hzn331ma30
	390	30×40	0.2	1.61	cer421hzn391mr40
	390	35×35	0.2	1.61	cer421hzn391ma35
	470	30×45	0.2	1.86	cer421hzn471mr45
	470	35×40	0.2	1.86	cer421hzn471ma40
	560	35×45	0.2	2.1	cer421hzn561ma45
	680	35×50	0.2	2.2	cer421hzn681ma50
450v	68	22×25	0.2	0.5	cer451hzn680mp25
	82	22×30	0.2	0.56	cer451hzn820mp30
	100	22×30	0.2	0.64	cer451hzn101mp30
	100	25.4×25	0.2	0.64	cer451hzn101mq25
	120	22×35	0.2	0.72	cer451hzn121mp35
	120	25.4×30	0.2	0.72	cer451hzn121mq30
	150	22×40	0.2	0.79	cer451hzn151mp40
	150	25.4×30	0.2	0.79	cer451hzn151mq30
	150	30×25	0.2	0.79	cer451hzn151mr25
	180	22×45	0.2	0.87	cer451hzn181mp45
	180	25.4×40	0.2	0.87	cer451hzn181mq40
	180	30×30	0.2	0.87	cer451hzn181mr30
	220	30×30	0.2	1	cer451hzn221mr30
	220	35×25	0.2	1	cer451hzn221ma25
	270	25.4×50	0.2	1.19	cer451hzn271mq50
	270	30×40	0.2	1.19	cer451hzn271mr40
	270	35×30	0.2	1.19	cer451hzn271ma30
	330	30×45	0.2	1.38	cer451hzn331mr45
	330	35×35	0.2	1.38	cer451hzn331ma35
	390	30×50	0.2	1.55	cer451hzn391mr50
	390	35×40	0.2	1.55	cer451hzn391ma40
	470	35×45	0.2	1.74	cer451hzn471ma45
	560	35×50	0.2	1.9	cer451hzn561ma50
	680	35×50	0.2	2.1	cer451hzn681ma50
	680	40*63	0.201	3.40	cer451nj681kd63
	820	40*63	0.243	3.70	cer451nj821kd63
	820	35*80	0.243	3.80	cer451nj821ka80
	820	50*50	0.263	4.31	cer451nj821kc50
	1000	40*80	0.216	4.20	cer451nj102kd80
	1000	50*63	0.216	4.96	cer451nj102kc63
	1200	35*105	0.166	4.85	cer451nj122ka105
	1200	40*80	0.166	4.85	cer451nj122kd80
	1200	50*80	0.180	5.71	cer451nj122kc80
	1500	40*105	0.133	5.81	cer451nj152kd105
	1500	50*92	0.144	6.55	cer451nj152kc92
	1800	50*105	0.120	7.38	cer451nj182kc105
500v	33	22*25	4.420	0.60	cer500nj330ke25
	47	22*25	3.500	0.63	cer500nj470ke25
	56	22*30	2.980	0.70	cer500nj560ke30
	68	22*35	2.720	0.78	cer500nj680ke35
	68	25*25	2.720	0.78	cer500nj680kf25
	82	22*40	2.455	0.88	cer500nj820ke40
	82	25*30	2.455	0.88	cer500nj820kf30
	82	30*25	2.45	0.90	cer500nj820kg25
	100	22*45	2.013	0.99	cer500nj101ke45
	100	35*25	2.013	1.10	cer500nj101ka25
	120	35*30	1.678	1.40	cer500nj121ka30
	150	35*25	1.342	1.29	cer500nj151ka25
	180	35*35	1.119	1.60	cer500nj181ka35
	220	35*40	0.915	1.90	cer500nj221ka40
	270	40*40	0.746	2.40	cer500nj271kd40
	330	35*45	0.610	1.99	cer500nj331ka45
	330	40*40	0.610	2.16	cer500nj331kd40
	390	40*50	0.516	2.90	cer500nj391kd50
	470	40*63	0.428	3.40	cer500nj471kd63
	560	35*80	0.360	3.60	cer500nj561ka80
	560	40*63	0.360	3.111	cer500nj561kd63
	560	50*50	0.360	3.52	cer500nj561kc50
	680	40*80	0.296	4.50	cer500nj681kd80
	680	35*80	0.296	3.21	cer500nj681ka80
	680	50*63	0.296	3.21	cer500nj681kc63
	820	35*105	0.246	3.97	cer500nj821ka105
	820	40*80	0.246	3.88	cer500nj821kd80
	1000	50*80	0.201	5.05	cer500nj102kc80
	1200	40*105	0.168	5.90	cer500nj122kd105
	1200	50*92	0.168	5.74	cer500nj122kc92
	1500	50*105	0.134	6.65	cer500nj152kc105

◆rated ripple current multipliers
●frequency multipliers

frequency （hz）	50	120	300	1k	10k	50k
35,50vdc	0.95	1.00	1.03	1.05	1.08	1.08
160～250vdc	0.81	1.00	1.17	1.32	1.45	1.50
315～450vdc	0.77	1.00	1.16	1.30	1.41	1.43

×the endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with
every 5℃rise.when long life performance is required in actual use,the rms ripple current has to be reduced

prev 没有了

standard aluminum electrolytic capacitor next
