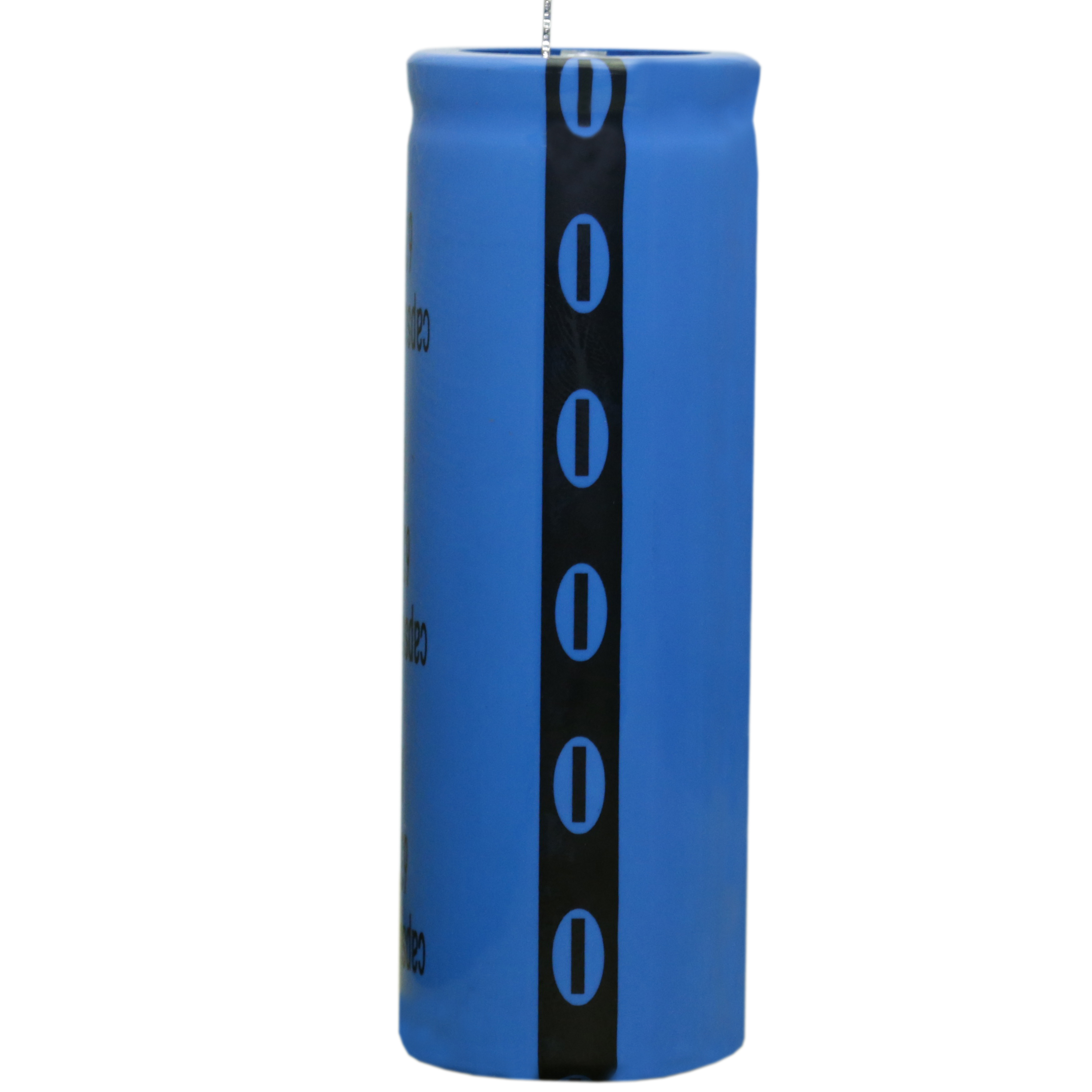

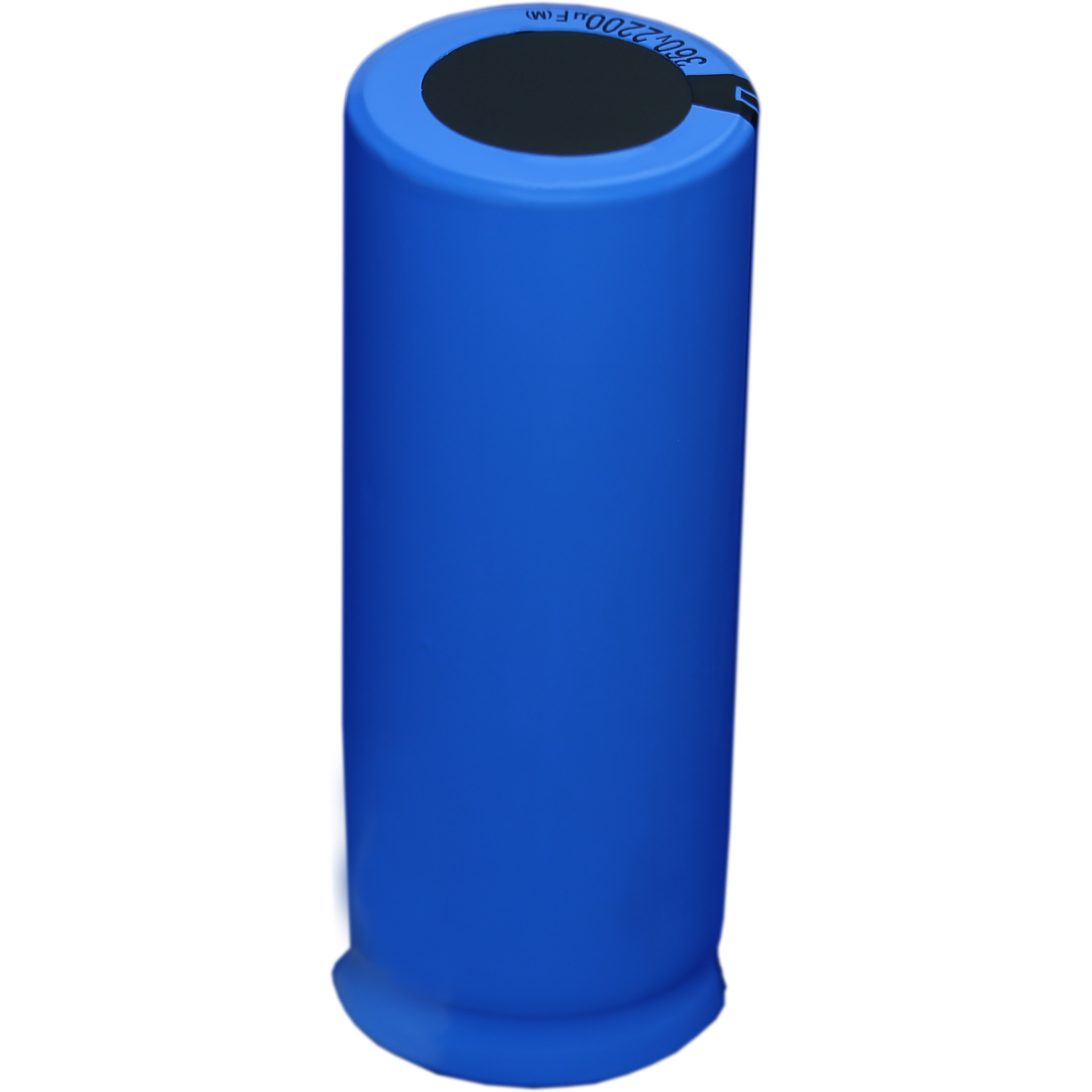

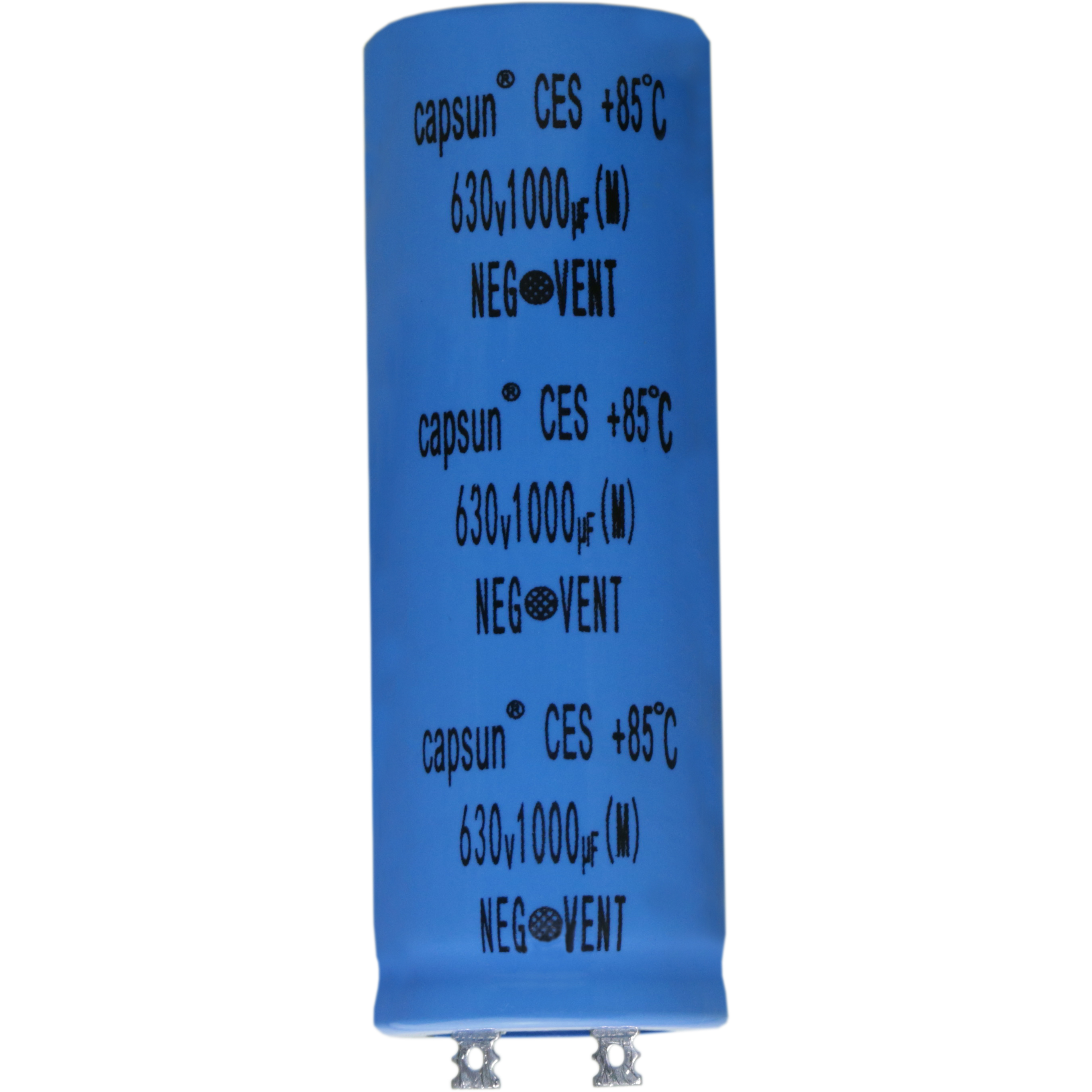

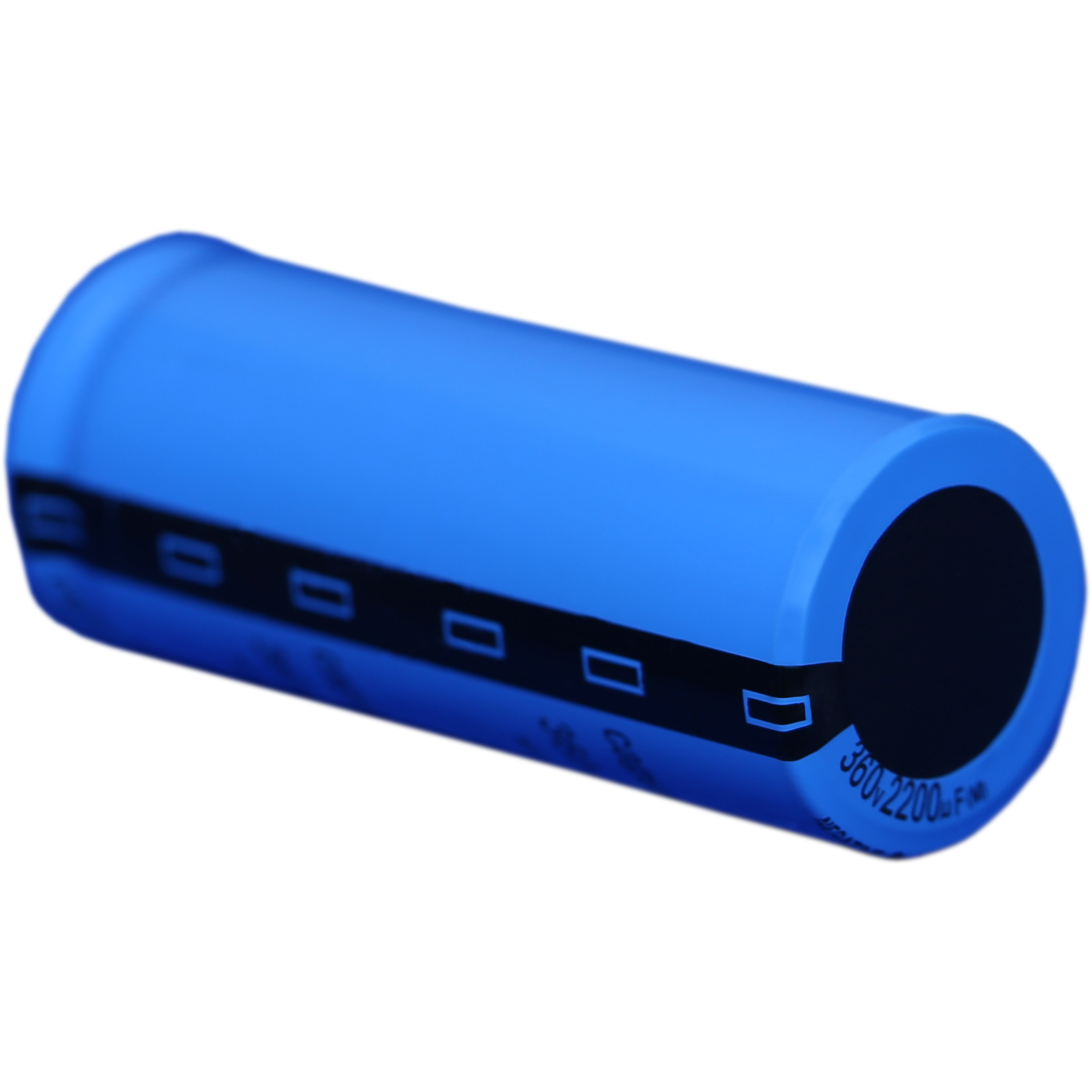

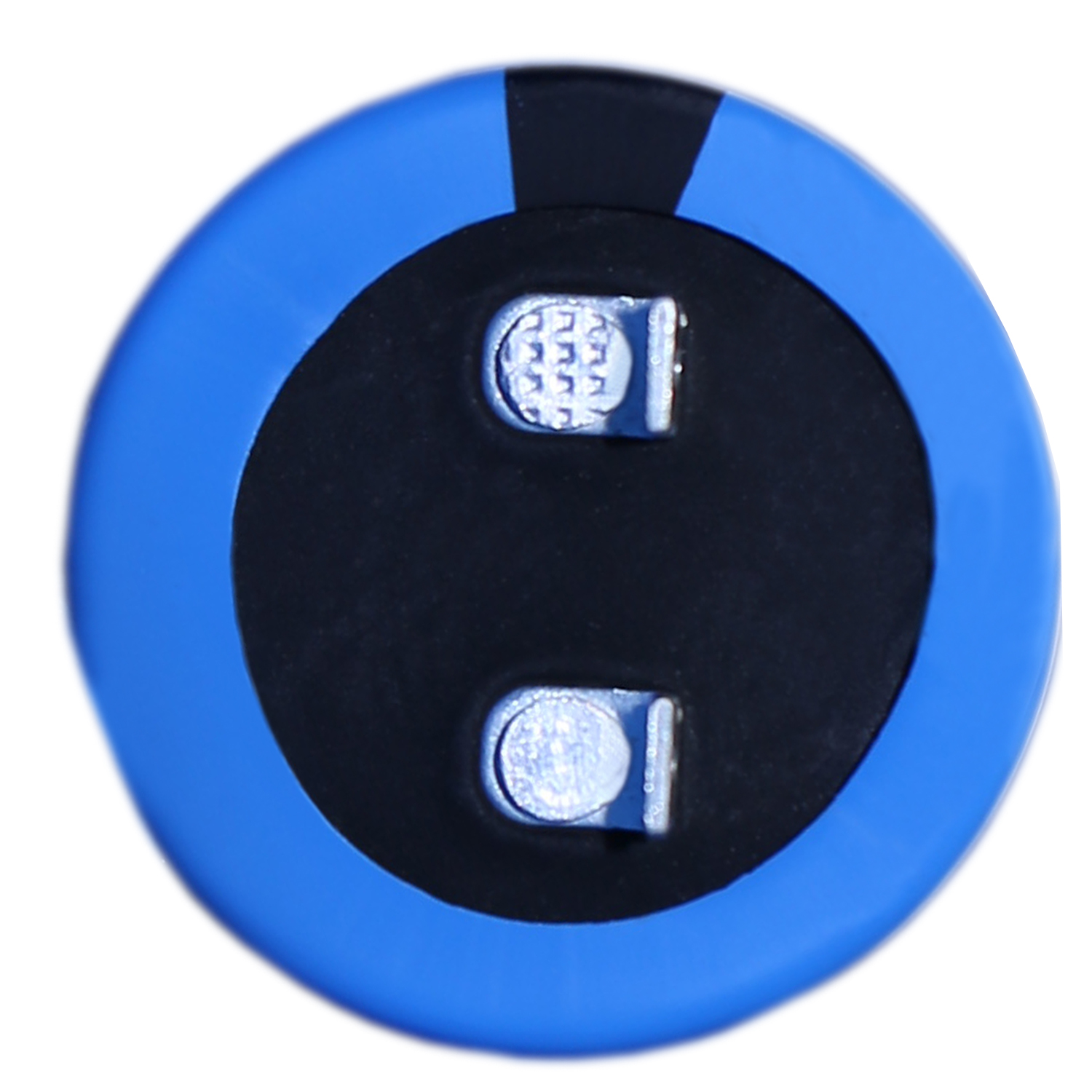

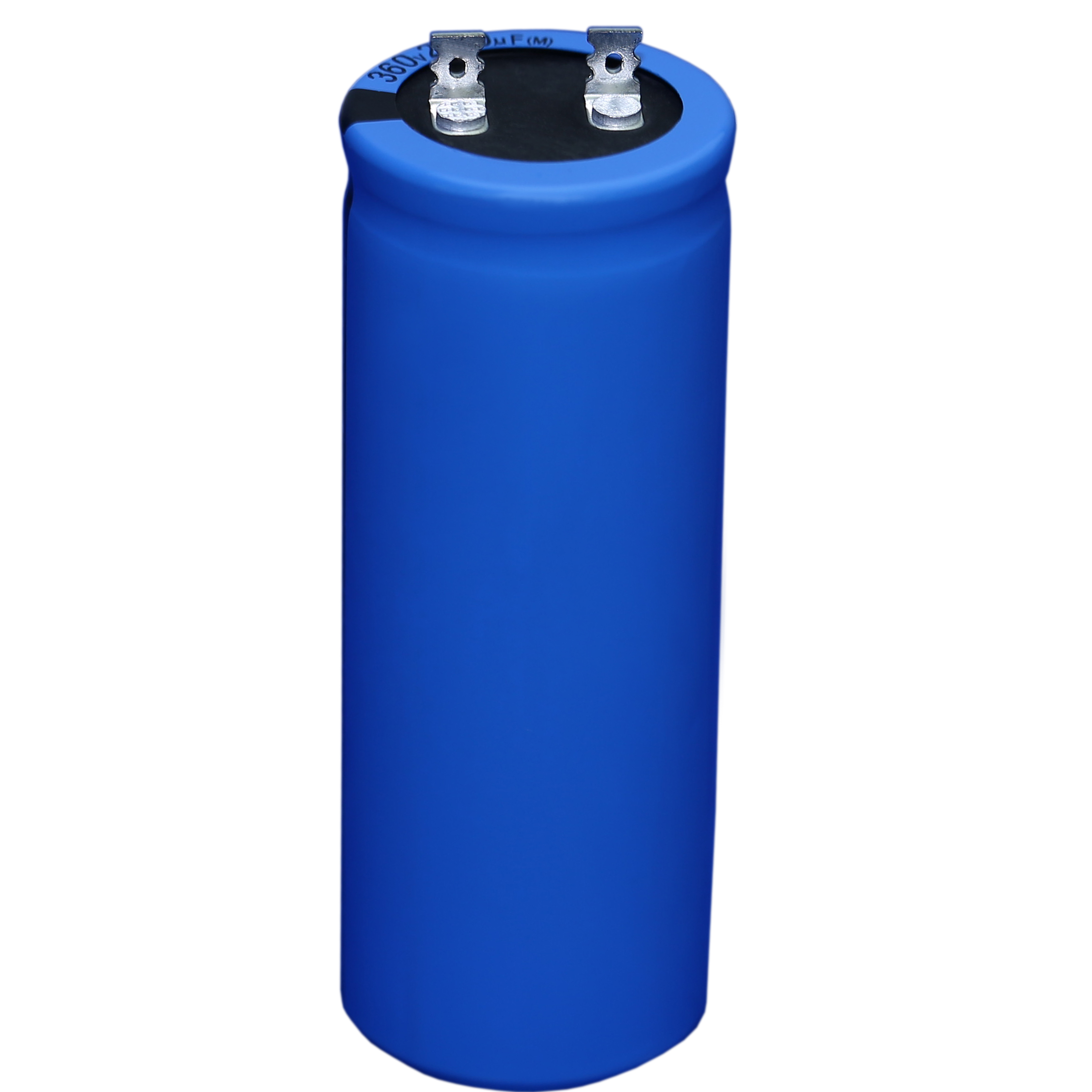

standard aluminum electrolytic capacitor-足球看盘软件
series：
sort：
category：
rated voltage range（vdc）：

download

working cap temperature. standard life(hours)
detailed
specification

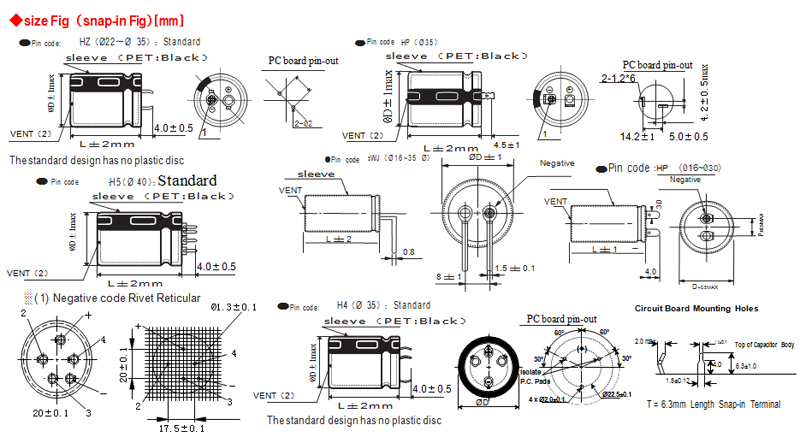

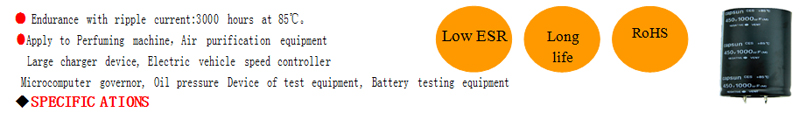

85℃ 3000hours

items

characteristics

category temperature range

-40~ 85℃

rated voltage range

16~450_vdc

capacitance tolerance

± 20%（m） 20℃、120hz

leakage current

i=0.02cv or 5ma,whichever is smaller
i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)

dissipation factor（max）

rated voltage（vdc）	160v～250v	315v～400v	420v～450v	at20℃,120hz
tanδmax	0.15	0.15	0.20	at20℃,120hz

low temperature characteristics

rated voltage（vdc）	200v	250v	400v	450v
z(-25℃)/z( 20℃)	≤4

equivalent series inductance

≤50nh

endurance

the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 3,000 hours at 85℃

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

shelf life

the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 85℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

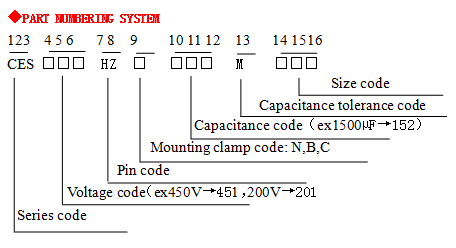

srandrad ratings

wv	cap	case size ød x l	esr 120hz,20℃[mω]	ripple current	par t no
[v]	[μf]	[mm]	（tanδ）	（ams/105℃,120hz）	par t no
16v	10000	25.4×30	48	2.4	ces160hzn103mq30
	12000	25.4×35	40	2.8	ces160hzn123mq35
	15000	25.4×40	32	3.3	ces160hzn153mq40
	15000	30×30	32	3.3	ces160hzn153mr30
	18000	25.4×45	27	3.8	ces160hzn183mq45
	18000	25.4×50	27	4	ces160hzn183mq50
	18000	30×35	27	3.8	ces160hzn183mr35
	18000	35×30	27	4	ces160hzn183ma30
	22000	30×40	22	4.4	ces160hzn223mr40
	22000	35×35	22	4.6	ces160hzn223ma35
	27000	30×45	18	5.1	ces160hzn273mr45
	27000	30×50	18	5.3	ces160hzn273mr50
	27000	35×40	18	5.3	ces160hzn273ma40
	33000	35×45	14	6.2	ces160hzn333ma45
	39000	30×70	12	7.2	ces160hzn393mr70
	39000	35×50	12	7	ces160hzn393ma50
	47000	40×50	10	8.1	ces160hzn473mu50
	56000	35×80	9	10	ces160hzn563ma80
	56000	40×50	9	8.8	ces160hzn563mu50
	68000	40×60	7	10.4	ces160hzn683mu60
	82000	35×105	6	13.3	ces160hzn823maa0
	82000	40×80	6	12.7	ces160hzn823mu80
	82000	40×90	6	11.4	ces160hzn823mu90
	100000	40×105	5	14	ces160hzn104mua0
	120000	40×105	4	16.9	ces160hzn124mua0
	150000	40×130	4	18.8	ces160hzn154mud0
25v	6800	25.4×30	66	2.1	ces250hzn682mq30
	8200	25.4×35	54	2.4	ces250hzn822mq35
	10000	25.4×40	45	2.8	ces250hzn103mq40
	10000	30×30	45	2.8	ces250hzn103mr30
	12000	25.4×45	37	3.2	ces250hzn123mq45
	12000	30×35	37	3.2	ces250hzn123mr35
	15000	25.4×50	30	3.7	ces250hzn123mq50
	15000	30×40	30	3.7	ces250hzn153mr40
	15000	35×30	30	3.7	ces250hzn153ma30
	18000	30×45	26	4.2	ces250hzn183mr45
	18000	30×50	26	4.4	ces250hzn183mr50
	18000	35×35	26	4.2	ces250hzn183ma35
	22000	35×40	21	4.9	ces250hzn223ma40
	22000	35×45	21	5.1	ces250hzn223ma45
	27000	30×70	17	6.1	ces250hzn273mr70
	27000	35×50	17	5.9	ces250hzn273ma50
	33000	35×60	14	7	ces250hzn333ma60
	39000	40×50	12	7.5	ces250hzn393mu50
	47000	35×80	10	9.3	ces250hzn473ma80
	47000	40×50	10	8.8	ces250hzn473mu50
	56000	35×105	8	11.2	ces250hzn563maa0
	56000	40×75	8	9.6	ces250hzn563mu75
	68000	40×80	7	11.8	ces250hzn683mu80
	68000	40×150	7	12.9	ces250hzn683mua0
	82000	40×105	6	12.9	ces250hzn823mua0
	100000	40×105	5	15.6	ces250hzn104mua0
40v	2700	25.4×30	142	1.4	ces400hzn272ma30
	3300	25.4×35	116	1.7	ces400hzn332mq35
	3900	25.4×40	98	1.9	ces400hzn392mq40
	3900	30×30	98	1.9	ces400hzn392mr30
	4700	25.4×45	81	2.2	ces400hzn472mq45
	4700	30×35	81	2.2	ces400hzn472mr35
	5600	24.4×50	68	2.5	ces400hzn562mr50
	5600	30×40	68	2.5	ces400hzn562mr40
	5600	35×30	68	2.5	ces400hzn562ma30
	6800	30×45	56	2.8	ces400hzn682mr45
	6800	30×50	56	2.9	ces400hzn682ma50
	8200	35×40	47	3.2	ces400hzn822ma40
	8200	35×45	47	3.3	ces400hzn822ma45
	10000	35×50	47	3.4	ces400hzn103ma50
	12000	30×70	38	3.9	ces400hzn123ma60
	15000	35×60	32	4.5	ces400hzn153mu50
	18000	40×50	32	4.6	ces400hzn183ma80
	18000	35×80	25	5.1	ces400hzn183mu60
	22000	40×60	21	6.4	ces400hzn223maa0
	22000	35×105	21	6	ces400hzn223mu80
	22000	40×80	17	7.7	ces400hzn223mu90
	27000	40×90	17	7.4	ces400hzn273mua0
	33000	35×105	17	6.6	ces400hzn333mac0
	39000	40×120	14	8.9	ces400hzn393muc0
50v	1800	25.4×25	165	1.4	ces500hzn182mq25
	2200	25.4×30	138	1.7	ces500hzn222mq30
	2700	25.4×35	120	1.9	ces500hzn272mq35
	2700	30×25	120	1.9	ces500hzn272mr25
	3300	25.4×40	92	2.2	ces500hzn332mq40
	3300	30×30	92	2.2	ces500hzn332mr30
	3900	25.4×45	85	2.5	ces500hzn392mq45
	3900	30×35	85	2.5	ces500hzn392mr35
	4700	30×35	61	2.2	ces500hzn472mr35
	4700	30×40	63	2.7	ces500hzn472mr40
	5600	30×45	55	3.5	ces500hzn562mr45
	6800	35×40	46	4.1	ces500hzn682ma40
	8200	30×65	41	4.5	ces500hzn82m3065
	10000	35×50	33	5.6	ces500hzn103ma50
	12000	40×55	26	6	ces500hzn123mu55
	15000	40×70	22	6.6	ces500hzn153mu70
	18000	35×105	18	8.1	ces500hzn183maa0
	22000	40×105	15	10.1	ces500hzn223mua0
	27000	40×105	13	12.1	ces500hzn273mua0
	33000	40×130	10	13.8	ces500hzn333mud0
	47000	35×160	8	15.2	ces500hzn473maf5
63v	1800	25.4×30	159	1.3	ces630hzn182mq30
	2200	25.4×35	130	1.6	ces630hzn222mq35
	2700	25.4×40	106	1.8	ces630hzn272mq40
	2700	30×30	106	1.8	ces630hzn272mr30
	3300	25.4×45	87	2.1	ces630hzn332mq45
	3300	30×35	87	2.1	ces630hzn332mr35
	3900	25.4×50	73	2.4	ces630hzn392mq50
	3900	30×40	73	2.4	ces630hzn392mr40
	3900	35×30	73	2.4	ces630hzn392ma30
	4700	30×45	61	2.7	ces630hzn472mr45
	4700	35×35	65	2.8	ces630hzn472ma35
	5600	30×50	51	3.1	ces630hzn562mr50
	6800	35×45	42	3.6	ces630hzn682ma45
	8200	30×70	35	4.3	ces630hzn822mr70
	10000	35×60	29	4.9	ces630hzn103ma60
	10000	40×50	29	4.8	ces630hzn103mu50
	12000	35×80	24	6	ces630hzn123ma80
	12000	40×60	24	5.6	ces630hzn123mu70
	15000	40×70	19	6.3	ces630hzn153mu70
	18000	35×105	16	8.1	ces630hzn183maa0
	18000	40×80	16	7.7	ces630hzn183mu80
	22000	40×105	13	9.3	ces630hzn223mua0
	22000	35×130	13	8.5	ces630hzn223mad0
	27000	40×130	11	10.3	ces630hzn273mud0
80v	1200	25.4×30	265	1	ces800hzn122mq30
	1500	25.4×35	212	1.2	ces800hzn152mq35
	1800	25.4×40	177	1.4	ces800hzn152mq40
	1800	30×30	177	1.6	ces800hzn152mr30
	2200	25.4×45	145	1.7	ces800hzn222mq45
	2200	25.4×50	145	1.6	ces800hzn222mq50
	2200	30×35	145	1.7	ces800hzn222mr35
	2200	35×30	145	1.6	ces800hzn222ma30
	2700	30×40	118	1.9	ces800hzn272mr40
	2700	30×45	118	2	ces800hzn272mr45
	2700	35×35	118	2	ces800hzn272ma35
	3300	30×50	97	2.3	ces800hzn332mr50
	3300	35×40	97	2.3	ces800hzn332ma40
	3900	35×45	82	2.6	ces800hzn392ma45
	4700	35×50	68	3	ces800hzn472ma50
	5600	30×70	57	3.4	ces800hzn562mr70
	5600	35×60	57	3.5	ces800hzn562ma60
	5600	40×50	57	3.4	ces800hzn562mu50
	6800	35×80	47	4.3	ces800hzn682ma80
	6800	40×60	47	4	ces800hzn682mu60
	10000	35×105	32	5.7	ces800hzn103maa0
	10000	40×70	32	4.9	ces800hzn103mu70
	12000	40×80	27	6	ces800hzn123maa0
	12000	35×105	27	6	ces800hzn123maa0
	15000	40×105	21	7.3	ces800hzn153mua0
	18000	40×120	18	8	ces800hzn183muc0
100v	1000	25.4×30	159	1.3	ces101hzn102mq30
	1200	25.4×35	133	1.5	ces101hzn122mq35
	1500	25.4×40	106	1.8	ces101hzn152mq40
	1500	30×30	106	1.8	ces101hzn152mr30
	1800	25.4×45	88	2.1	ces101hzn182mq45
	1800	25.4×50	88	2.2	ces101hzn182mq50
	1800	25×30	88	2.2	ces101hzn182ma30
	2200	30×40	72	2.4	ces101hzn222mr40
	2200	30×45	72	2.5	ces101hzn222mr45
	2200	35×35	72	2.5	ces101hzn222ma35
	2700	30×50	59	2.9	ces101hzn272mr50
	2700	35×40	59	2.9	ces101hzn272ma40
	3300	35×45	48	3.4	ces101hzn332ma45
	3900	30×70	41	4	ces101hzn392mr70
	3900	35×50	41	3.8	ces101hzn392ma50
	4700	35×60	34	4.5	ces101hzn472ma60
	4700	40×50	34	4.4	ces101hzn472mu50
	5600	35×80	28	5.5	ces101hzn562ma80
	5600	40×60	28	5.1	ces101hzn562mu60
	8200	35×105	19	7.3	ces101hzn822maa0
	8200	40×80	19	7	ces101hzn822mu80
	10000	40×90	16	7.7	ces101hzn103mu90
	12000	40×105	13	9.2	ces101hzn123mua0
	15000	40×120	11	10.3	ces101hzn153muc0
160v	470	25.4×30	237	1.1	ces161hzn471mq30
	560	25.4×35	199	1.3	ces161hzn561mq35
	680	25.4×40	164	1.5	ces161hzn681mq40
	680	30×30	164	1.4	ces161hzn681mr30
	820	25.4×45	136	1.6	ces161hzn821mq45
	820	30×35	136	1.7	ces161hzn821mr35
	1000	25.4×50	111	1.9	ces161hzn102mq50
	1000	30×40	111	1.9	ces161hzn102mr40
	1200	30×50	111	1.9	ces161hzn122mr50
	1200	30×45	93	2.2	ces161hzn122mr45
	1200	35×35	93	2.2	ces161hzn122ma35
	1500	30×50	74	2.6	ces161hzn152mr50
	1500	35×40	74	2.6	ces161hzn152ma40
	1800	35×45	62	3	ces161hzn182ma45
	1800	35×50	62	3.1	ces161hzn182ma50
	2200	30×70	51	3.6	ces161hzn222mr70
	2200	35×60	51	3.7	ces161hzn222ma60
	2700	40×50	41	4	ces161hzn272mu50
	3300	35×80	34	5	ces161hzn332ma80
	3300	40×60	34	4.7	ces161hzn332mu60
	3900	35×105	29	6.2	ces161hzn392maa0
	3900	40×70	29	5.2	ces161hzn392mu70
	4700	40×80	24	6.3	ces161hzn472mu80
	5600	40×90	20	7.5	ces161hzn562mu90
	5600	40×105	20	6.9	ces161hzn562mua0
	6800	40×120	16	8.3	ces161hzn562muc0
200v	270	22×25	354	0.8	ces201hzn271mp25
	390	22×30	245	1	ces201hzn391mp30
	470	22×35	203	1.2	ces201hzn471mp35
	470	25.4×50	203	1.2	ces201hzn471mq50
	560	22×40	171	1.3	ces201hzn561mp40
	560	25.4×35	171	1.4	ces201hzn561mq35
	680	25.4×40	141	1.6	ces201hzn681mq40
	680	30×30	141	1.6	ces201hzn681mr30
	820	25.4×45	117	1.8	ces201hzn821mq45
	820	30×35	117	1.8	ces201hzn821mr35
	1000	35×30	96	2.1	ces201hzn102ma30
	1000	25.4×50	96	2.1	ces201hzn102mq50
	1000	30×40	96	2.1	ces201hzn102mr40
	1200	30×45	80	2.4	ces201hzn122mr45
	1200	35×35	80	2.8	ces201hzn122ma35
	1500	30×50	64	2.4	ces201hzn152mr50
	1500	35×40	64	2.8	ces201hzn152ma40
	1800	35×45	53	3.2	ces201hzn182ma45
	1800	35×50	53	3.3	ces201hzn182ma50
	2200	30×70	43	3.8	ces201hzn222mr70
	2200	35×60	43	4	ces201hzn222ma60
	2700	40×50	35	4.3	ces201hzn272mu50
	3300	35×80	29	5.4	ces201hzn332ma80
	3300	40×60	29	5.1	ces201hzn332mu60
	3900	35×105	24	6.5	ces201hzn392maa0
	3900	40×80	20	6.8	ces201hzn392mu80
	4700	40×80	24	5.6	ces201hzn472mu80
	5600	40×105	17	8.1	ces201hzn562mua0
	5600	35×130	17	7.4	ces201hzn562mad0
	6800	40×120	14	9	ces201hzn682muc0
250v	330	25.4×30	290	1	ces251hzn331mq30
	390	25.4×35	245	1.1	ces251hzn391mq35
	470	25.4×40	203	1.3	ces251hzn471mq40
	470	30×30	203	1.3	ces251hzn471mr30
	560	25.4×45	171	1.5	ces251hzn561mq45
	560	30×35	171	1.5	ces251hzn561mr35
	560	35×30	171	1.6	ces251hzn561ma30
	680	25.4×50	141	1.7	ces251hzn681mq50
	680	30×40	141	1.7	ces251hzn681mr40
	820	30×45	117	2	ces251hzn821mr45
	820	30×50	117	2.1	ces251hzn821mr50
	820	35×35	117	2	ces251hzn821ma35
	1000	35×40	96	2.3	ces251hzn102ma40
	1200	35×45	89	2.6	ces251hzn122ma45
	1200	35×50	80	2.7	ces251hzn122ma50
	1500	30×70	64	3.2	ces251hzn152mr70
	1500	35×60	64	3.3	ces251hzn152ma60
	1800	35×80	53	4	ces251hzn182ma80
	1800	40×50	53	3.5	ces251hzn182mu50
	1800	40×60	53	3.8	ces251hzn182mu60
	2700	35×105	35	5.4	ces251hzn272maa0
	2700	40×80	35	5.2	ces251hzn272mu80
	2700	35×120	35	4.6	ces251hzn272mac0
	3300	40×105	29	6.3	ces251hzn332mua0
	3900	40×105	26	6.5	ces251hzn392mua0
	4700	40×120	20	7.4	ces251hzn472muc0
350v	180	25.4×30	531	0.7	ces351hzn181mq30
	220	25.4×35	434	0.9	ces351hzn221mq35
	270	25.4×40	354	1	ces351hzn271mq40
	270	30×30	354	1	ces351hzn271mr30
	330	25.4×45	290	1.2	ces351hzn331mq45
	330	30×35	290	1.1	ces351hzn331mr35
	330	35×30	290	1.2	ces351hzn331ma30c
	390	25.4×50	245	1.3	es351hzn391mq50
	390	30×40	245	1.3	ces351hzn391mr40
	470	30×45	203	1.5	ces351hzn471mr45
	470	35×35	203	1.5	ces351hzn471ma35
	560	30×50	171	1.7	ces351hzn561mr50
	560	35×40	171	1.7	ces351hzn561ma40
	560	35×45	171	1.8	ces351hzn561ma45
	680	35×50	141	2.1	ces351hzn681ma50
	820	30×70	117	2.3	ces351hzn821mr70
	820	35×60	117	2.4	ces351hzn821ma60
	820	40×50	117	2.4	ces351hzn821mu50
	1000	35×80	80	3.3	ces351hzn102ma80
	1200	40×60	80	3.1	ces351hzn122mu60
	1500	35×105	64	4	ces351hzn152maa0
	1500	40×80	64	3.4	ces351hzn152mu80
	1800	40×80	53	4.2	ces351hzn182mu80
	1800	40×105	53	4.6	ces351hzn182mua0
	2200	40×105	53	4.2	ces351hzn222mua0
	2700	40×120	35	5.6	ces351hzn272muc0
400v	150	25.4×30	849	0.6	ces401hzn151mq30
	180	25.4×35	708	0.7	ces401hzn181mq35
	220	25.4×40	579	0.8	ces401hzn221mq40
	220	30×30	579	0.8	ces401hzn221mr30
	270	25.4×45	472	0.9	ces401hzn271mq45
	270	25.4×50	472	0.9	ces401hzn271mq50
	270	30×45	472	0.9	ces401hzn271mr45
	270	35×30	472	0.9	ces401hzn271ma30
	330	30×40	386	1	ces401hzn331mr40
	330	35×35	386	1.1	ces401hzn331ma35
	390	30×45	327	1.2	ces401hzn391mr45
	390	30×50	327	1.2	ces401hzn391mr50
	470	35×45	271	1.4	ces401hzn471ma45
	560	30×70	227	1.7	ces401hzn561mr70
	560	35×50	227	1.6	ces401hzn561ma50
	680	35×60	187	1.9	ces401hzn681ma60
	680	40×50	187	1.9	ces401hzn681mu50
	820	35×80	155	2.3	ces401hzn821ma80
	820	40×60	155	2.2	ces401hzn821mu60
	1000	35×105	106	3.1	ces401hzn102maa0
	1200	40×80	106	3	ces401hzn122mu80
	1200	35×105	106	2.7	ces401hzn122maa0
	1500	40×105	85	3.6	ces401hzn152mua0
	1800	40×105	85	3.3	ces401hzn182mua0
	2200	40×120	58	4.4	ces401hzn222muc0
450v	120	25.4×30	929	0.6	ces451hzn121mq30
	150	25.4×35	743	0.7	ces451hzn151mq35
	150	25.4×40	743	0.7	ces451hzn151mq40
	180	25.4×45	619	0.8	ces451hzn181mq45
	180	30×30	619	0.7	ces451hzn181mr30
	180	30×35	619	0.8	ces451hzn181mr35
	220	25.4×50	507	0.9	ces451hzn221mq50
	220	30×40	507	0.9	ces451hzn221mr40
	220	30×30	507	0.9	ces451hzn221mr30
	270	30×30	413	1	ces451hzn271mr45
	270	35×20	413	1.1	ces451hzn271ma20
	330	30×30	338	1.2	ces451hzn331mr30
	330	35×25	338	1.2	ces451hzn331ma25
	390	30×30	286	1.8	ces451hzn391mr30
	470	30×45	237	1.4	ces451hzn471mr45
	470	35×35	237	1.6	ces451hzn471ma35
	560	35×45	199	1.9	ces451hzn561ma45
	560	35×50	199	1.8	ces451hzn561ma50
	680	35×70	164	2.3	ces451hzn681ma70
	680	40×60	164	2.1	ces451hzn681mu60
	820	35×80	136	2.8	ces451hzn821ma80
	820	40×70	136	2.4	ces451hzn821mu70
	1000	40×80	111	2.9	ces451hzn102mu80
	1200	40×80	93	3.5	ces451hzn122mu80
	1200	40×90	93	3.2	ces451hzn122mu90
	1500	40×120	74	3.9	ces451hzn122muc0

◆rated ripple current multipliers
●frequency multipliers

frequency （hz）	50	120	300	1k	10k	50k
16～250vdc	0.81	1.00	1.17	1.32	1.45	1.50
350～450vdc	0.77	1.00	1.16	1.30	1.41	1.43

×the endurance of capacitors is reduced with internal heating produced by ripple
current at the rate of halving the lifetime with every 5℃ rise. when long life
performance is required in actual use,the rms ripple current has to be reduced

prev standard aluminum electrolytic capacitor

standard aluminum electrolytic capacitor next
