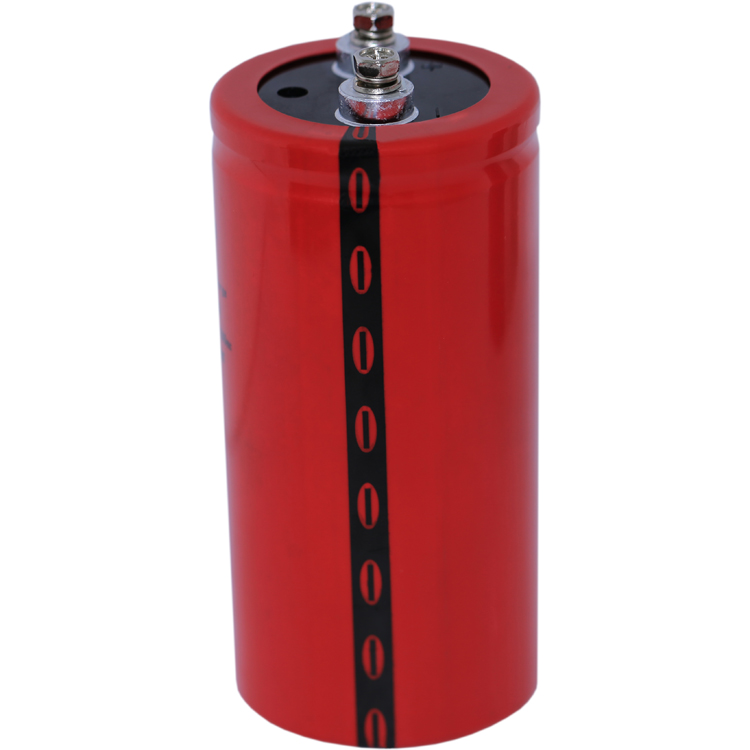

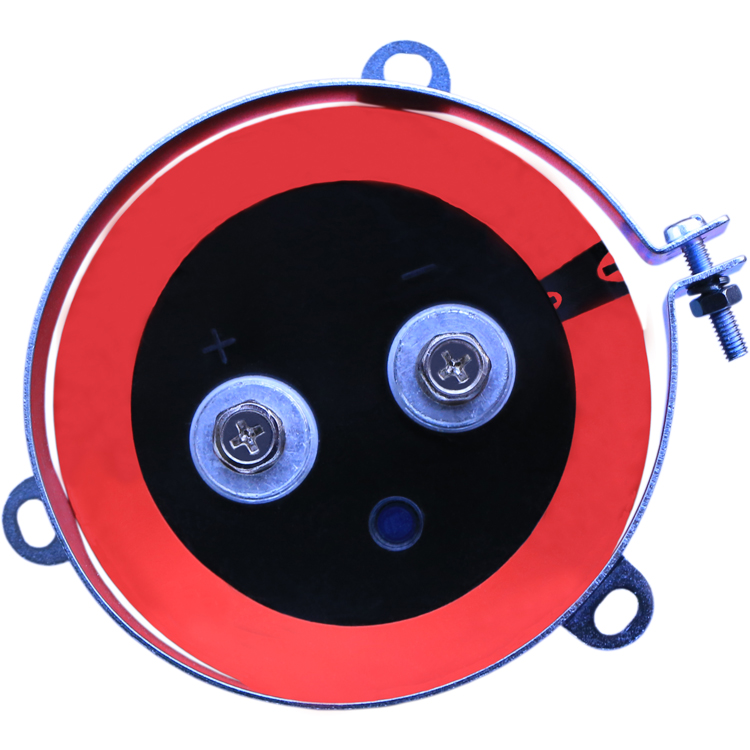

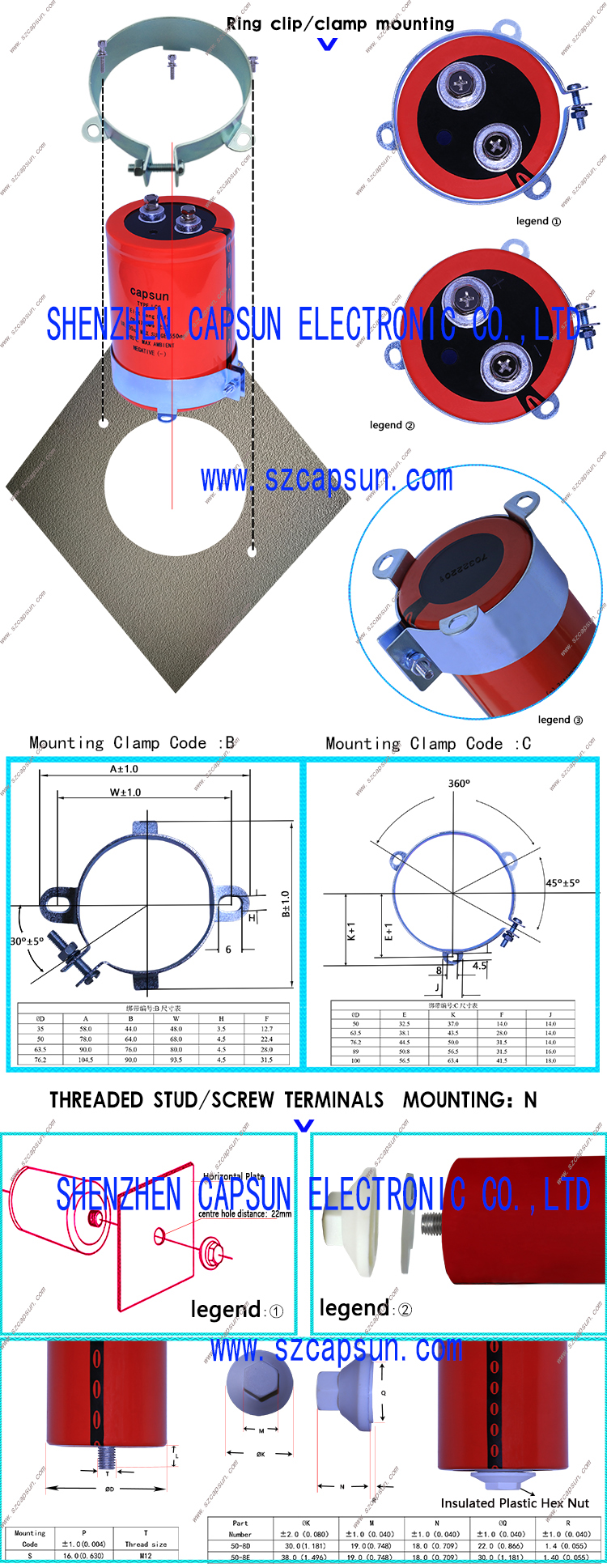

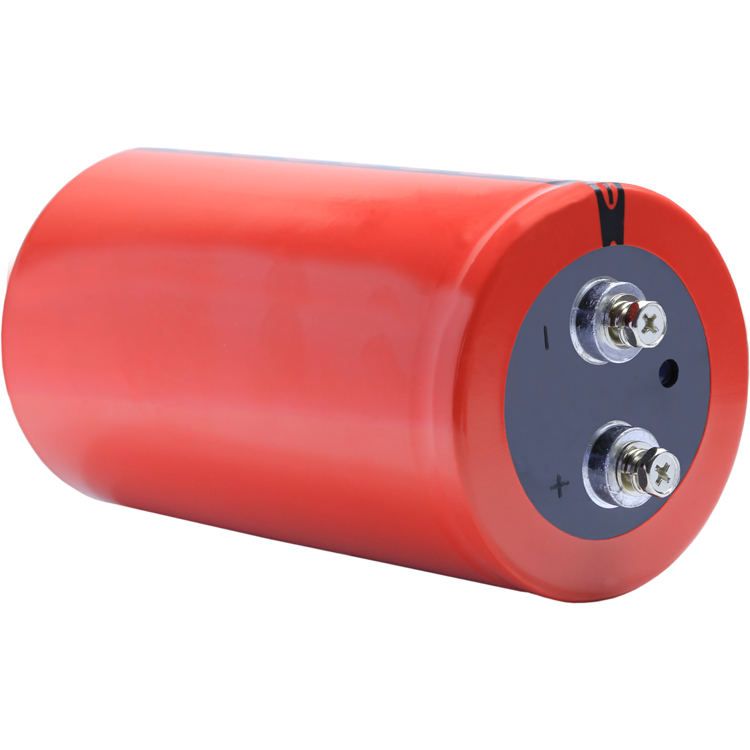

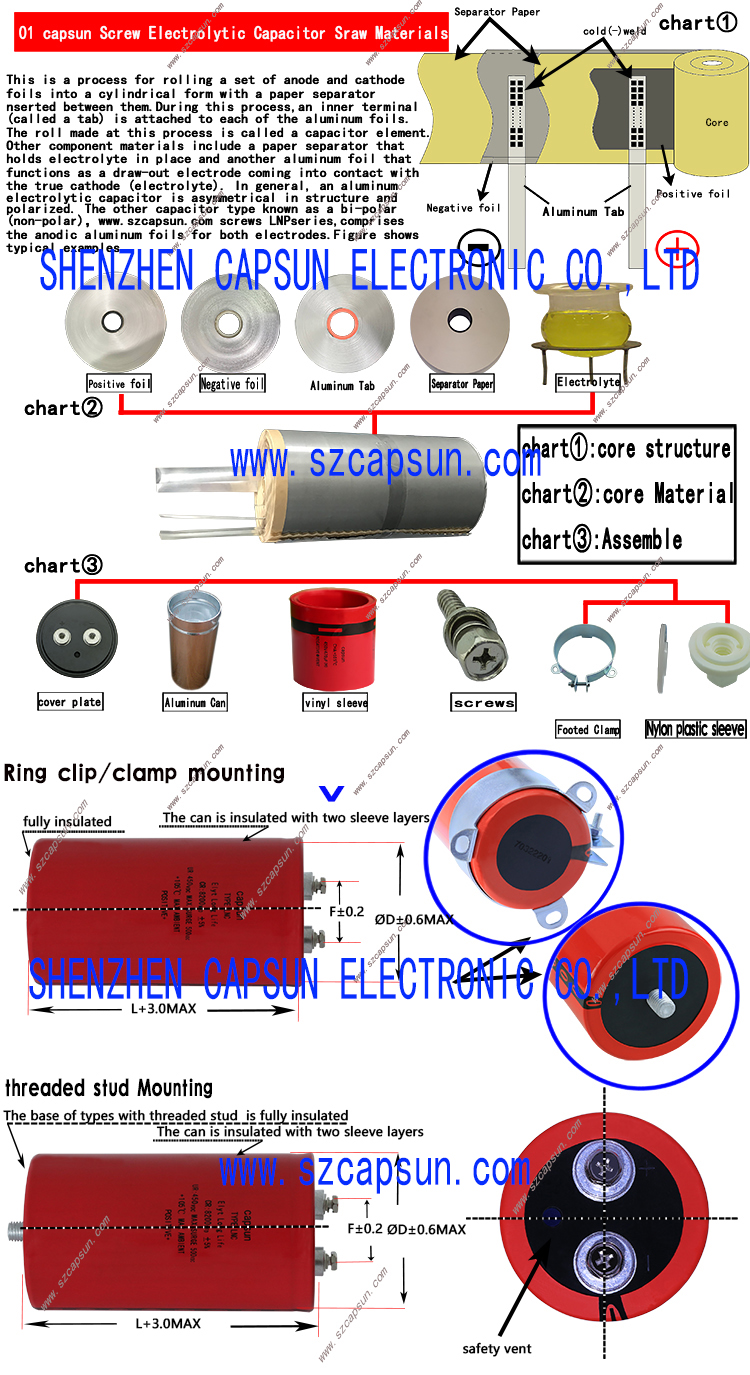

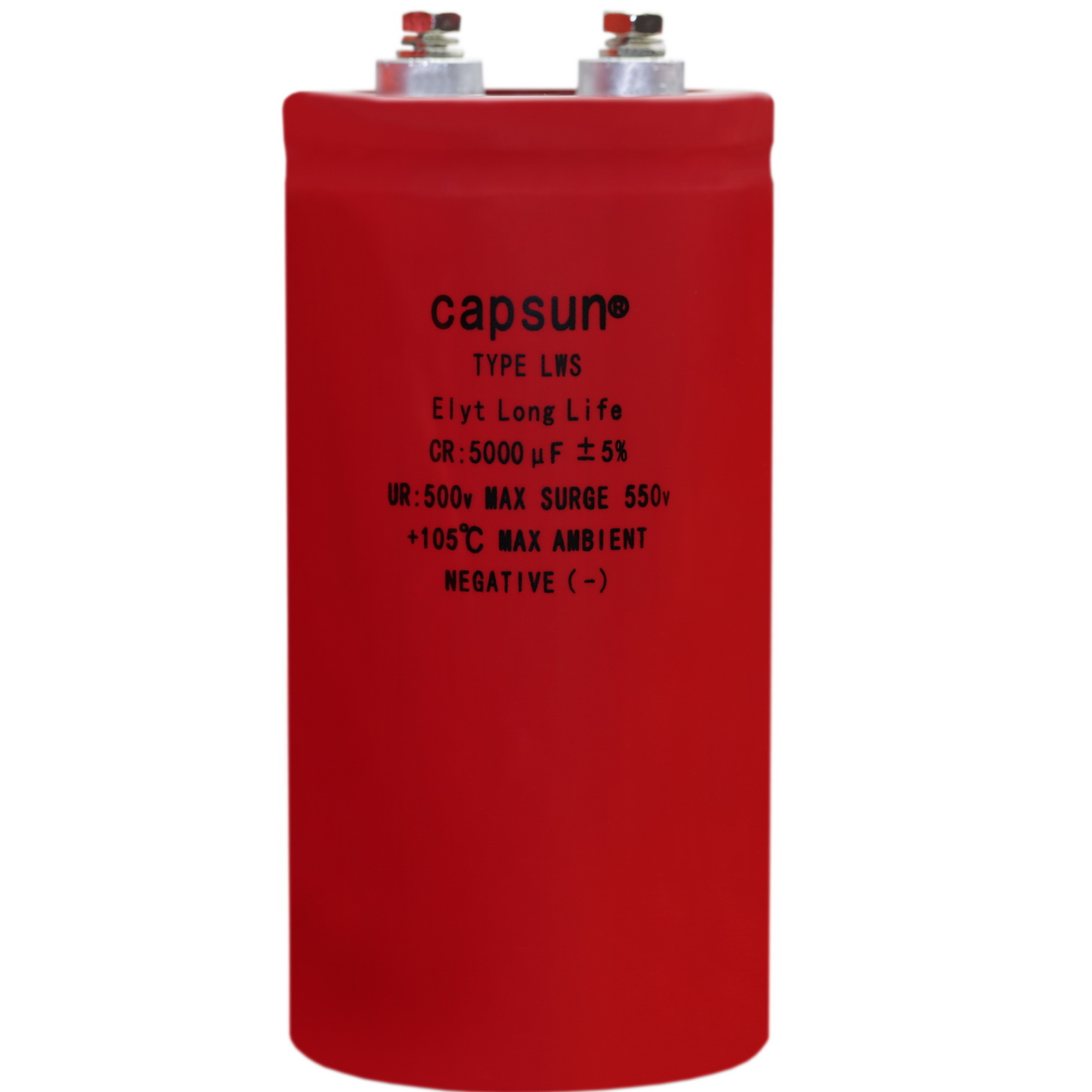

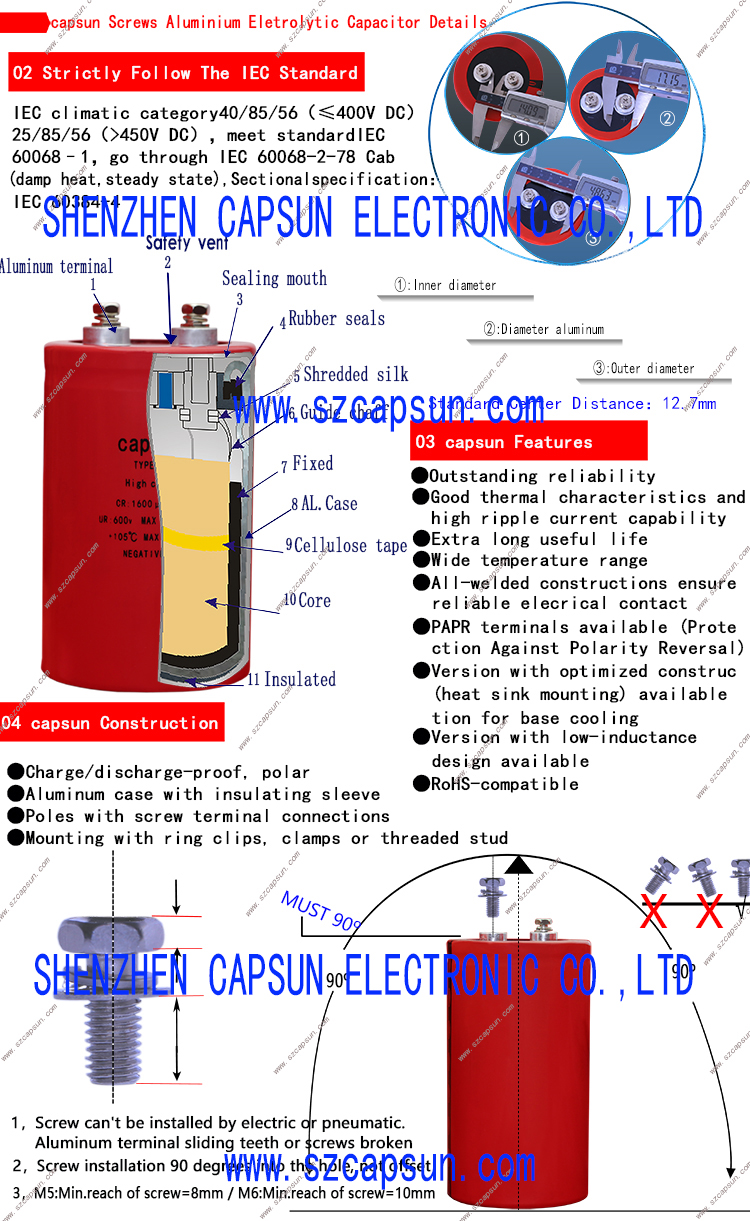

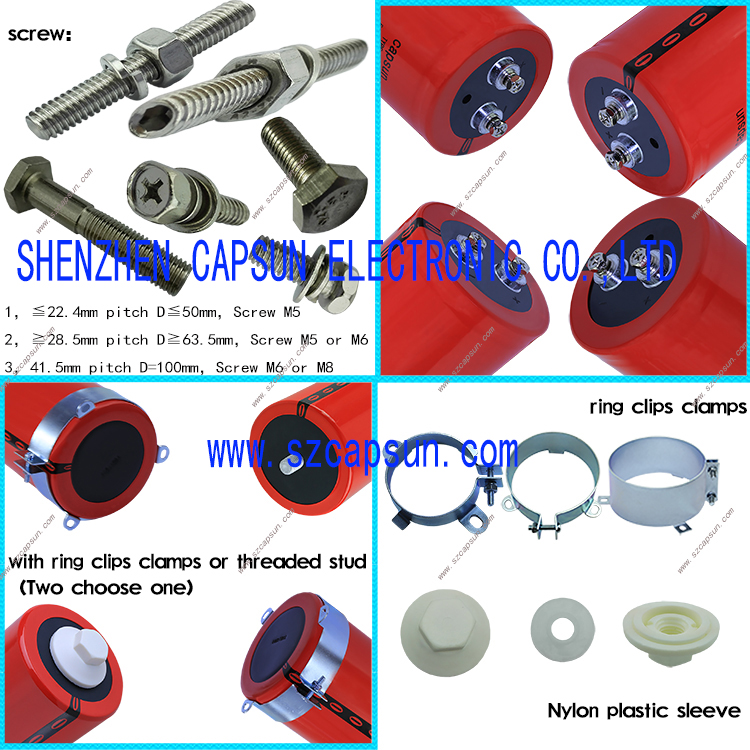

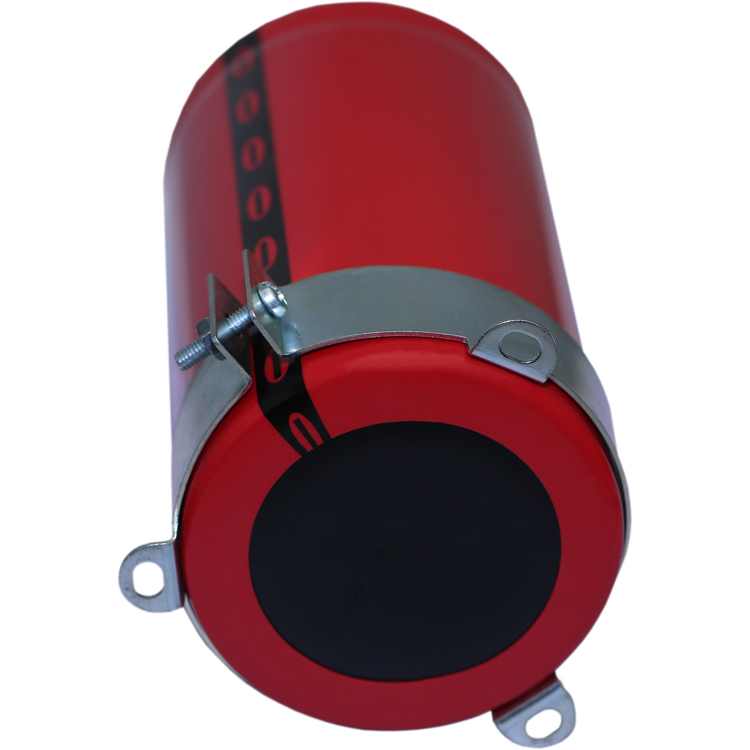

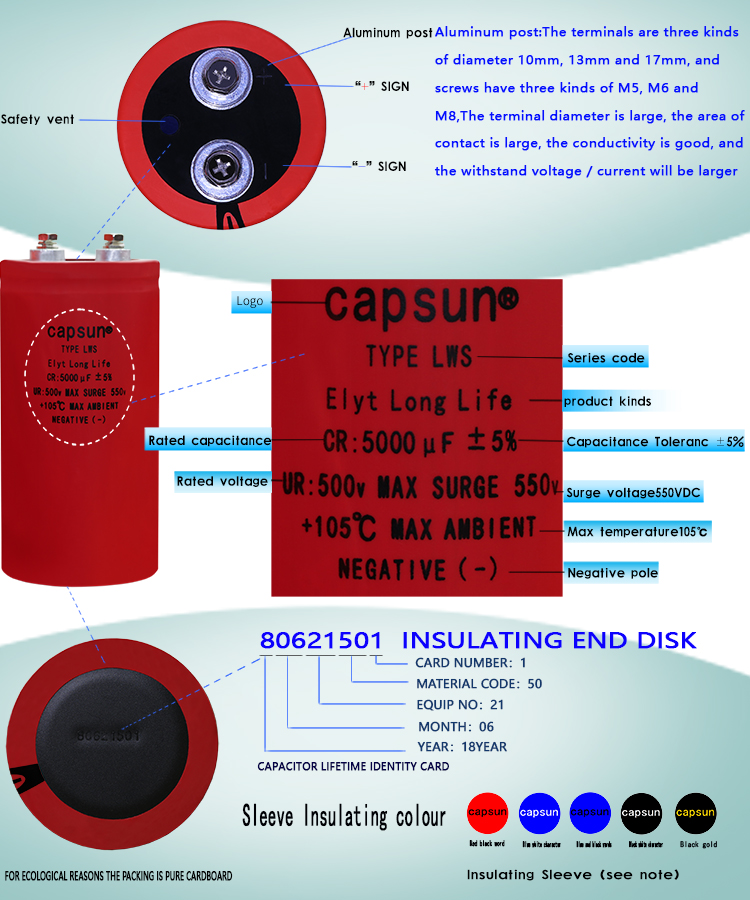

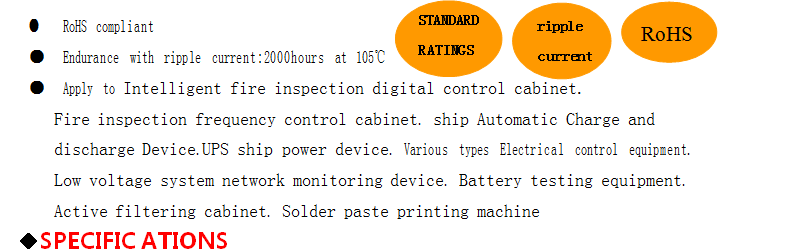

| items | characteristics | |||
| category temperature range | -40~ 105℃（10-100vdc）-25~ 105℃（160-450vdc） | |||
| rated voltage range | 10~450vdc | |||
| capacitance tolerance | ± 20%（m） at 20℃/120hz | |||
| leakage current |
i=0.02cv or 5ma,whichever is smaller i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes) |
|||
| dissipation factor（tanδ） | shall not exceed the values shown in standard ratings at 20℃/120hz | |||
| low temperature characteristics | capacitance change(vdc) c（-25℃）/c（ 20℃）≥0.7 at 20℃/120hz | |||
| insulation resistance | when measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500vdc, the insulation resistance shall not be less than 100mω | |||
| insulation withstanding voltage | when a voltage of 2,000vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage.。 | |||
| endurance | the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 105℃ | |||
| capacitance change | ≤±20% of the initial value | |||
| d.f. (tanδ) | ≤300% of the initial specified value | |||
| leakage current | ≤the initial specified value | |||
| shelf life | the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 500 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4 | |||
| capacitance change | ≤±20% of the initial value | |||
| d.f. (tanδ) | ≤300% of the initial specified value | |||
| leakage current | ≤the initial specified value | |||
| w.v |
cap [μf] |
case sized x l [mm] |
tanδ120hz,20℃ [tanδ] |
rated ripple current （ams/105℃,120hz） |

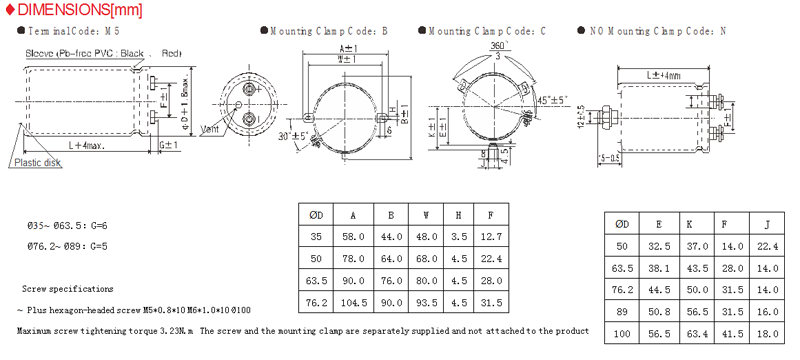

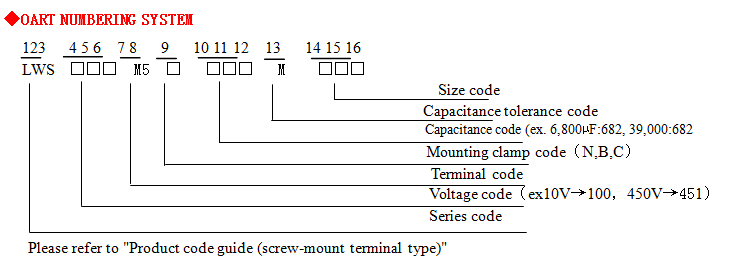

part no.
|
| [v] | |||||
| 10v |
27000 |
35*50 |
0.45 |
4.9 |
lws100m5b273ma50 |
|
33000 |
35*50 |
0.5 |
5.1 |
lws100m5b333ma50 |
|
|
39000 |
35*60 |
0.5 |
5.9 |
lws100m5b393ma60 |
|
|
47000 |
35*80 |
0.5 |
7.1 |
lws100m5b473ma80 |
|
|
56000 |
35*80 |
0.6 |
7.1 |
lws100m5b563ma80 |
|
|
68000 |
35*100 |
0.6 |
8.5 |
lws100m5b683maa0 |
|
|
82000 |
35*100 |
0.65 |
8.9 |
lws100m5b823maa0 |
|
|
100000 |
35*120 |
0.65 |
10.7 |
lws100m5b104mac0 |
|
|
120000 |
50*80 |
0.75 |
11 |
lws100m5c124mc80 |
|
|
150000 |
50*100 |
0.8 |
13.2 |
lws100m5c154mca0 |
|
|
180000 |
50*120 |
0.8 |
15.7 |
lws100m5c184mcc0 |
|
|
220000 |
50*120 |
0.85 |
16.8 |
lws100m5c224mcc0 |
|
|
270000 |
63.5*120 |
1.0 |
19.6 |
lws100m5c274mdc0 |
|
|
330000 |
63.5*120 |
1.2 |
19.7 |
lws100m5c334mdc0 |
|
|
390000 |
76.2*120 |
1.5 |
21.3 |
lws100m5c394mec0 |
|
|
470000 |
76.2*120 |
1.8 |
21.4 |
lws100m5c474mec0 |
|
|
560000 |
76.2*140 |
2.0 |
23.6 |
lws100m5c564mee0 |
|
|
680000 |
89*140 |
2.4 |
26.0 |
lws100m5c684mfe0 |
|
| 16v |
18000 |
35*50 |
0.4 |
4.2 |
lws160m5b183ma50 |
|
22000 |
35*50 |
0.4 |
4.7 |
lws160m5b223ma50 |
|
|
27000 |
35*60 |
0.4 |
5.5 |
lws160m5b273ma60 |
|
|
33000 |
35*60 |
0.45 |
5.7 |
lws160m5b333ma60 |
|
|
39000 |
35*80 |
0.45 |
6.8 |
lws160m5b393ma80 |
|
|
47000 |
35*80 |
0.5 |
7.1 |
lws160m5b473ma80 |
|
|
56000 |
35*100 |
0.5 |
8.4 |
lws160m5b563maa0 |
|
|
68000 |
35*100 |
0.55 |
8.8 |
lws160m5b683maa0 |
|
|
82000 |
50*80 |
0.55 |
10.7 |
lws160m5c823mc80 |
|
|
100 |
50*80 |
0.65 |
10.8 |
lws160m5c104mc80 |
|
|
120000 |
50*100 |
0.65 |
13.1 |
lws160m5c124mca0 |
|
|
150000 |
50*120 |
0.7 |
15.3 |
lws160m5c154mcc0 |
|
|
180000 |
50*120 |
0.8 |
15.7 |
lws160m5c184mcc0 |
|
|
220000 |
63.5*120 |
0.85 |
19.2 |
lws160m5c224mdc0 |
|
|
270000 |
63.5*120 |
1.0 |
19.6 |
lws160m5c274mdc0 |
|
|
330000 |
76.2*120 |
1.3 |
21.1 |
lws160m5c334mec0 |
|
|
390000 |
76.2*120 |
1.5 |
21.3 |
lws160m5c394mec0 |
|
|
470000 |
76.2*140 |
1.6 |
24.2 |
lws160m5c474mee0 |
|
|
560000 |
89*140 |
2.0 |
28.1 |
lws160m5c564mfe0 |
|
|
680000 |
89*140 |
2.4 |
28.5 |
lws160m5c684mfe0 |
|
|
25v |
12000 |
35*50 |
0.35 |
3.7 |
lws250m5b123ma50 |
|
15000 |
35*50 |
0.35 |
4.1 |
lws250m5b153ma50 |
|
|
18000 |
35*60 |
0.35 |
4.8 |
lws250m5b183ma60 |
|
|
22000 |
35*60 |
0.35 |
5.3 |
lws250m5b223ma60 |
|
|
27000 |
35*80 |
0.35 |
6.4 |
lws250m5b273ma80 |
|
| 33000 | 35*80 | 0.4 | 6.7 | lws250m5b333ma80 | |
| 39000 | 35*100 | 0.4 | 7.8 | lws250m5b393maa0 | |
| 47000 | 35*120 | 0.4 | 9.3 | lws250m5b473mac0 | |
| 56000 | 50*80 | 0.45 | 9.7 | lws250m5c563mc80 | |
| 68000 | 50*100 | 0.45 | 11.2 | lws250m5c683mca0 | |
| 82000 | 50*100 | 0.5 | 11.2 | lws250m5c823mca0 | |
| 100000 | 50*120 | 0.5 | 14.8 | lws250m5c104mcc0 | |
| 120000 | 63.5*100 | 0.65 | 14.9 | lws250m5c124mda0 | |
| 150000 | 63.5*120 | 0.65 | 17.9 | lws250m5c154mdc0 | |
| 180000 | 63.5*120 | 0.8 | 17.9 | lws250m5c184mdc0 | |
| 220000 | 76.2*120 | 0.85 | 21.3 | lws250m5c224mec0 | |
| 270000 | 76.2*120 | 1 | 21.7 | lws250m5c274mec0 | |
| 330000 | 76.2*140 | 1.2 | 23.4 | lws250m5c334mee0 | |
| 390000 | 89*140 | 1.5 | 24.9 | lws250m5c394mfe0 | |
|
35v |
8200 | 35*50 | 0.3 | 3.3 | lws350m5b822ma50 |
| 10000 | 35*50 | 0.3 | 3.6 | lws350m5b103ma50 | |
| 12000 | 35*60 | 0.3 | 4.2 | lws350m5b123ma60 | |
| 15000 | 35*60 | 0.3 | 4.7 | lws350m5b153ma60 | |
| 18000 | 35*60 | 0.3 | 5.7 | lws350m5b183ma80 | |
| 22000 | 35*80 | 0.3 | 6.3 | lws350m5b223ma80 | |
| 27000 | 35*100 | 0.3 | 7.5 | lws350m5b273maa0 | |
| 33000 | 35*120 | 0.3 | 9 | lws350m5b333mac0 | |
| 39000 | 50*80 | 0.35 | 9.2 | lws350m5c393mc80 | |
| 47000 | 50*100 | 0.35 | 11.2 | lws350m5c473mca0 | |
| 56000 | 50*100 | 0.4 | 11.4 | lws350m5c563mca0 | |
| 68000 | 50*120 | 0.4 | 13.6 | lws350m5c683mcc0 | |
| 82000 | 63.5*100 | 0.45 | 14.8 | lws350m5c104mdc0 | |
| 100000 | 63.5*120 | 0.45 | 17.6 | lws350m5c104mdc0 | |
| 120000 | 63.5*120 | 0.55 | 17.6 | lws350m5c124mdc0 | |
| 150000 | 76.2*120 | 0.65 | 19.8 | lws350m5c154mec0 | |
| 180000 | 76.2*120 | 0.8 | 19.8 | lws350m5c184mec0 | |
| 220000 | 76.2*140 | 0.8 | 23.4 | lws350m5c224mee0 | |
| 270000 | 89*140 | 1.0 | 25.5 | lws350m5c274mfe0 | |
|
50v |
3900 | 35*50 | 0.2 | 2.8 | lws500m5b392ma50 |
| 4700 | 35*50 | 0.2 | 3.1 | lws500m5b472ma50 | |
| 5600 | 35*50 | 0.2 | 3.3 | lws500m5b562ma50 | |
| 6800 | 35*50 | 0.25 | 3.3 | lws500m5b682ma50 | |
| 8200 | 35*60 | 0.25 | 3.8 | lws500m5b822ma60 | |
| 10000 | 35*80 | 0.25 | 4.6 | lws500m5b103ma80 | |
| 12000 | 35*80 | 0.25 | 5.1 | lws500m5b123ma80 | |
| 15000 | 35*80 | 0.25 | 5.7 | lws500m5b153ma80 | |
| 18000 | 35*100 | 0.25 | 6.7 | lws500m5b183maa0 | |
| 22000 | 35*120 | 0.25 | 8.1 | lws500m5b223mac0 | |
|
27000 |
50*80 |
0.25 |
9.1 |
lws500m5c273mc80 |
|
|
33000 |
50*100 |
0.25 |
11.1 |
lws500m5c333mca0 |
|
|
39000 |
50*120 |
0.25 |
13.1 |
lws500m5c393mcc0 |
|
|
47000 |
50*120 |
0.3 |
13.9 |
lws500m5c473mcc0 |
|
|
56000 |
63.5*100 |
0.35 |
13.9 |
lws500m5c563mda0 |
|
|
68000 |
63.5*120 |
0.35 |
16.6 |
lws500m5c683mdc0 |
|
|
82000 |
76.2*120 |
0.4 |
18.9 |
lws500m5c823mec0 |
|
|
100000 |
76.2*120 |
0.45 |
19.5 |
lws500m5c104mec0 |
|
|
120000 |
76.2*120 |
0.55 |
19.5 |
lws500m5c124mec0 |
|
|
150000 |
89*140 |
0.6 |
23.9 |
lws500m5c154mfe0 |
|
|
180000 |
89*140 |
0.75 |
23.9 |
lws500m5c184mfe0 |
|
| 63v |
2700 |
35*50 |
0.2 |
2.3 |
lws630m5b272ma50 |
|
3300 |
35*50 |
0.2 |
2.5 |
lws630m5b332ma50 |
|
|
3900 |
35*50 |
0.2 |
2.8 |
lws630m5b392ma50 |
|
|
4700 |
35*50 |
0.2 |
3.1 |
lws630m5b472ma50 |
|
|
5600 |
35*60 |
0.2 |
3.5 |
lws630m5b562ma60 |
|
|
6800 |
35*60 |
0.2 |
3.9 |
lws630m5b682ma60 |
|
|
8200 |
35*80 |
0.2 |
4.7 |
lws630m5b822ma80 |
|
|
10000 |
35*80 |
0.25 |
4.7 |
lws630m5b103ma80 |
|
|
12000 |
35*100 |
0.25 |
5.5 |
lws630m5b123maa0 |
|
|
15000 |
35*120 |
0.25 |
6.6 |
lws630m5b153mac0 |
|
|
18000 |
50*80 |
0.25 |
7.4 |
lws630m5c183mc80 |
|
|
22000 |
50*100 |
0.25 |
9 |
lws630m5c223mca0 |
|
|
27000 |
50*120 |
0.25 |
10.9 |
lws630m5c273mcc0 |
|
|
33000 |
50*120 |
0.25 |
12 |
lws630m5c333mcc0 |
|
|
39000 |
63.5*100 |
0.3 |
12.5 |
lws630m5c393mda0 |
|
|
47000 |
63.5*120 |
0.3 |
14.9 |
lws630m5c473mdc0 |
|
|
56000 |
63.5*120 |
0.3 |
16.3 |
lws630m5c563mdc0 |
|
|
68000 |
76.2*120 |
0.35 |
18.4 |
lws630m5c683mec0 |
|
|
82000 |
76.2*140 |
0.4 |
20 |
lws630m5c823mee0 |
|
|
100000 |
76.2*140 |
0.5 |
20 |
lws630m5c104mee0 |
|
|
120000 |
89*140 |
0.6 |
21.8 |
lws630m5c124mfe0 |
|
|
80v |
2200 |
35*50 |
0.15 |
2.4 |
lws800m5b222ma50 |
|
2700 |
35*50 |
0.15 |
2.7 |
lws800m5b272ma50 |
|
|
3300 |
35*50 |
0.15 |
3.0 |
lws800m5b332ma50 |
|
|
3900 |
35*60 |
0.15 |
3.4 |
lws800m5b392ma60 |
|
|
4700 |
35*60 |
0.15 |
3.7 |
lws800m5b472ma60 |
|
|
5600 |
35*80 |
0.15 |
4.5 |
lws800m5b562ma80 |
|
|
6800 |
35*80 |
0.15 |
4.9 |
lws800m5b682ma80 |
|
|
8200 |
35*100 |
0.2 |
5.1 |
lws800m5b822maa0 |
|
|
10000 |
35*120 |
0.2 |
6.1 |
lws800m5b103mac0 |
|
|
12000 |
50*80 |
0.2 |
6.7 |
lws800m5c123mc80 |
|
|
15000 |
50*100 |
0.2 |
8.3 |
lws800m5c153mca0 |
|
| 18000 | 50*120 | 0.2 | 9.9 | lws800m5c183mcc0 | |
| 22000 | 50*120 | 0.2 | 11 | lws800m5c223mcc0 | |
| 27000 | 63.5*100 | 0.25 | 11.4 | lws800m5c273mda0 | |
| 33000 | 76.2*100 | 0.25 | 13.9 | lws800m5c333mea0 | |
| 39000 | 76.2*100 | 0.3 | 13.9 | lws800m5c393mea0 | |
| 47000 | 76.2*120 | 0.3 | 16.5 | lws800m5c473mec0 | |
| 56000 | 76.2*120 | 0.3 | 18.1 | lws800m5c563mec0 | |
| 68000 | 76.2*140 | 0.35 | 19.7 | lws800m5c683mee0 | |
| 82000 | 89*140 | 0.4 | 22.1 | lws800m5c823mfe0 | |
|
100v |
1800 | 35*50 | 0.1 | 2.7 | lws101m5b182ma50 |
| 2200 | 35*50 | 0.1 | 3 | lws101m5b222ma50 | |
| 2700 | 35*50 | 0.1 | 3.5 | lws101m5b272ma60 | |
| 3300 | 35*60 | 0.1 | 4.2 | lws101m5b332ma80 | |
| 3900 | 35*80 | 0.12 | 4.2 | lws101m5b392ma80 | |
| 4700 | 35*100 | 0.12 | 5 | lws101m5b472maa0 | |
| 5600 | 35*100 | 0.12 | 5.4 | lws101m5b562maa0 | |
| 6800 | 35*120 | 0.15 | 5.8 | lws101m5b682mac0 | |
| 8200 | 50*80 | 0.15 | 6.4 | lws101m5c822mc80 | |
| 10000 | 50*100 | 0.15 | 7.8 | lws101m5c103mca0 | |
| 12000 | 50*120 | 0.15 | 9.3 | lws101m5c123mcc0 | |
| 15000 | 50*120 | 0.15 | 10.4 | lws101m5c153mcc0 | |
| 18000 | 63.5*100 | 0.2 | 10.4 | lws101m5c183mda0 | |
| 22000 | 63.5*120 | 0.2 | 12.5 | lws101m5c223mdc0 | |
| 27000 | 76.2*120 | 0.25 | 13.7 | lws101m5c273mec0 | |
| 33000 | 76.2*120 | 0.25 | 15.2 | lws101m5c333mec0 | |
| 39000 | 76.2*140 | 0.3 | 16.1 | lws101m5c393mee0 | |
| 47000 | 89*140 | 0.3 | 19.3 | lws101m5c473mfe0 | |
| 56000 | 89*140 | 0.3 | 21.1 | lws101m5c563mfe0 | |
| 160v | 560 | 35*50 | 0.15 | 1.2 | lws161m5b561ma50 |
| 680 | 35*50 | 0.15 | 1.3 | lws161m5b681ma50 | |
| 820 | 35*50 | 0.15 | 1.4 | lws161m5b821ma50 | |
| 1000 | 35*50 | 0.15 | 1.6 | lws161m5b102ma50 | |
| 1200 | 35*60 | 0.15 | 1.6 | lws161m5b122ma60 | |
| 1500 | 35*60 | 0.15 | 1.9 | lws161m5b152ma60 | |
| 1800 | 35*60 | 0.15 | 2.1 | lws161m5b182ma80 | |
| 2200 | 35*80 | 0.15 | 2.5 | lws161m5b222ma80 | |
| 2700 | 35*100 | 0.15 | 3.3 | lws161m5b272maa0 | |
| 3300 | 35*120 | 0.15 | 3.8 | lws161m5b332mac0 | |
| 3900 | 50*80 | 0.2 | 3.8 | lws161m5c392mc80 | |
| 4700 | 50*100 | 0.2 | 4.6 | lws161m5c472mca0 | |
| 5600 | 50*100 | 0.2 | 5.1 | lws161m5c562mca0 | |
| 6800 | 50*120 | 0.2 | 6.1 | lws161m5c682mcc0 | |
| 8200 | 63.5*100 | 0.2 | 7.0 | lws161m5c822mda0 | |
|
10000 |
63.5*120 |
0.2 |
8.4 |
lws161m5c103mdc0 |
|
|
12000 |
76.2*100 |
0.2 |
9.4 |
lws161m5c123mea0 |
|
|
15000 |
76.2*120 |
0.2 |
11.4 |
lws161m5c153mec0 |
|
|
18000 |
76.2*140 |
0.2 |
13.4 |
lws161m5c183mee0 |
|
|
22000 |
89*140 |
0.25 |
14.5 |
lws161m5c223mfe0 |
|
|
27000 |
89*140 |
0.25 |
16.0 |
lws161m5c273mfe0 |
|
| 200v |
330 |
35*50 |
0.15 |
0.9 |
lws201m5b331ma50 |
|
390 |
35*50 |
0.15 |
1.0 |
lws201m5b391ma50 |
|
|
470 |
35*50 |
0.15 |
1.1 |
lws201m5b471ma50 |
|
|
560 |
35*50 |
0.15 |
1.2 |
lws201m5b561ma50 |
|
|
680 |
35*50 |
0.15 |
1.3 |
lws201m5b681ma50 |
|
|
820 |
35*50 |
0.15 |
1.4 |
lws201m5b821ma50 |
|
|
1000 |
35*60 |
0.15 |
1.7 |
lws201m5b102ma60 |
|
|
1200 |
35*60 |
0.15 |
1.9 |
lws201m5b122ma60 |
|
|
1500 |
35*80 |
0.15 |
2.3 |
lws201m5b152ma80 |
|
|
1800 |
35*80 |
0.15 |
2.5 |
lws201m5b182ma80 |
|
|
2200 |
35*100 |
0.15 |
3.0 |
lws201m5b222maa0 |
|
|
2700 |
35*120 |
0.15 |
3.6 |
lws201m5b272mac0 |
|
|
3300 |
50*80 |
0.15 |
4.1 |
lws201m5c332mc80 |
|
|
3900 |
50*100 |
0.15 |
4.9 |
lws201m5c392mca0 |
|
|
4700 |
63.5*100 |
0.2 |
5.3 |
lws201m5c472mda0 |
|
|
5600 |
63.5*100 |
0.2 |
5.8 |
lws201m5c562mda0 |
|
|
6800 |
63.5*120 |
0.2 |
6.9 |
lws201m5c682mdc0 |
|
|
8200 |
63.5*120 |
0.2 |
7.6 |
lws201m5c822mdc0 |
|
|
10000 |
76.2*120 |
0.2 |
9.3 |
lws201m5c103mec0 |
|
|
12000 |
76.2*120 |
0.2 |
10.2 |
lws201m5c123mec0 |
|
|
15000 |
76.2*140 |
0.2 |
12.2 |
lws201m5c153mee0 |
|
|
18000 |
89*140 |
0.25 |
13.1 |
lws201m5c183mfe0 |
|
|
250v |
270 |
35*50 |
0.15 |
0.8 |
lws251m5b271ma50 |
|
330 |
35*50 |
0.15 |
0.9 |
lws251m5b331ma50 |
|
|
390 |
35*50 |
0.15 |
1.0 |
lws251m5b391ma50 |
|
|
470 |
35*50 |
0.15 |
1.1 |
lws251m5b471ma50 |
|
|
560 |
35*50 |
0.15 |
1.2 |
lws251m5b561ma50 |
|
|
680 |
35*60 |
0.15 |
1.4 |
lws251m5b681ma60 |
|
|
820 |
35*80 |
0.15 |
1.6 |
lws251m5b821ma80 |
|
|
1000 |
35*80 |
0.2 |
1.6 |
lws251m5b102ma80 |
|
|
1200 |
35*80 |
0.2 |
1.8 |
lws251m5b122ma80 |
|
|
1500 |
35*100 |
0.2 |
2.1 |
lws251m5b152maa0 |
|
|
1800 |
35*120 |
0.2 |
2.5 |
lws251m5b182mac0 |
|
|
2200 |
50*80 |
0.2 |
2.9 |
lws251m5c222mc80 |
|
|
2700 |
50*100 |
0.2 |
3.5 |
lws251m5c272mca0 |
|
|
3300 |
50*120 |
0.2 |
4.2 |
lws251m5c332mcc0 |
|
|
3900 |
50*120 |
0.2 |
4.6 |
lws251m5c392mcc0 |
|
| 4700 | 63.5*120 | 0.2 | 5.7 | lws251m5c472mdc0 | |
| 5600 | 63.5*120 | 0.2 | 6.3 | lws251m5c562mdc0 | |
| 6800 | 76.2*120 | 0.2 | 7.7 | lws251m5c682mec0 | |
| 8200 | 76.2*120 | 0.2 | 8.4 | lws251m5c822mec0 | |
| 10000 | 76.2*140 | 0.2 | 10.0 | lws251m5c103mee0 | |
| 12000 | 89*140 | 0.2 | 11.9 | lws251m5c123mfe0 | |
| 315v |
180 |
35*50 |
0.1 |
0.8 |
lws3b1m5b181ma50 |
|
220 |
35*50 |
0.1 |
0.9 |
lws3b1m5b221ma50 |
|
|
270 |
35*50 |
0.1 |
1.0 |
lws3b1m5b271ma50 |
|
|
330 |
35*50 |
0.1 |
1.1 |
lws3b1m5b331ma50 |
|
|
390 |
35*50 |
0.1 |
1.2 |
lws3b1m5b391ma50 |
|
|
470 |
35*60 |
0.1 |
1.4 |
lws3b1m5b471ma60 |
|
|
560 |
35*60 |
0.1 |
1.5 |
lws3b1m5b561ma60 |
|
|
680 |
35*80 |
0.1 |
1.7 |
lws3b1m5b681ma80 |
|
|
820 |
35*80 |
0.15 |
1.7 |
lws3b1m5b821ma80 |
|
|
1000 |
35*100 |
0.15 |
2.0 |
lws3b1m5b102maa0 |
|
|
1200 |
35*120 |
0.15 |
2.4 |
lws3b1m5b122mac0 |
|
|
1500 |
50*80 |
0.15 |
2.7 |
lws3b1m5c152mc80 |
|
|
1800 |
50*100 |
0.15 |
3.3 |
lws3b1m5c182mca0 |
|
|
2200 |
50*120 |
0.15 |
4.0 |
lws3b1m5c222mcc0 |
|
|
2700 |
50*120 |
0.15 |
4.4 |
lws3b1m5c272mcc0 |
|
|
3300 |
63.5*100 |
0.15 |
5.1 |
lws3b1m5c332mda0 |
|
|
3900 |
63.5*120 |
0.15 |
6.0 |
lws3b1m5c392mdc0 |
|
|
4700 |
76.2*100 |
0.15 |
6.8 |
lws3b1m5c472mea0 |
|
|
5600 |
76.2*120 |
0.15 |
8.0 |
lws3b1m5c562mec0 |
|
|
6800 |
76.2*130 |
0.15 |
9.2 |
lws3b1m5c682med0 |
|
|
8200 |
89*140 |
0.15 |
11.4 |
lws3b1m5c822mfe0 |
|
|
10000 |
89*140 |
0.15 |
12.6 |
lws3b1m5c103mfe0 |
|
|
350v |
180 |
35*50 |
0.1 |
0.8 |
lws351m5b181ma50 |
|
220 |
35*50 |
0.1 |
0.9 |
lws351m5b221ma50 |
|
|
270 |
35*50 |
0.1 |
1.0 |
lws351m5b271ma50 |
|
|
330 |
35*50 |
0.1 |
1.1 |
lws351m5b331ma50 |
|
|
390 |
35*60 |
0.1 |
1.3 |
lws351m5b391ma60 |
|
|
470 |
35*60 |
0.1 |
1.4 |
lws351m5b471ma60 |
|
|
560 |
35*80 |
0.1 |
1.6 |
lws351m5b561ma80 |
|
|
680 |
35*80 |
0.15 |
1.6 |
lws351m5b681ma80 |
|
|
820 |
35*100 |
0.15 |
1.8 |
lws351m5b821maa0 |
|
|
1000 |
35*120 |
0.15 |
2.2 |
lws351m5b102mac0 |
|
|
1200 |
50*80 |
0.15 |
2.4 |
lws351m5c122mc80 |
|
|
1500 |
50*100 |
0.15 |
3.0 |
lws351m5c152mca0 |
|
|
1800 |
50*120 |
0.15 |
3.6 |
lws351m5c182mcc0 |
|
|
2200 |
50*120 |
0.15 |
4.0 |
lws351m5c222mcc0 |
|
|
2700 |
63.5*100 |
0.15 |
4.6 |
lws351m5c272mda0 |
|
| 3900 | 76.2*120 | 0.15 | 6.7 | lws351m5c392mec0 | |
| 5600 | 76.2*130 | 0.15 | 8.3 | lws351m5c562med0 | |
| 6800 | 76.2*140 | 0.15 | 9.5 | lws351m5c682mee0 | |
| 8200 | 89*140 | 0.15 | 11.4 | lws351m5c822mfe0 | |
|
400v |
180 | 35*50 | 0.1 | 0.8 | lws401m5b181ma50 |
| 220 | 35*50 | 0.1 | 0.9 | lws401m5b221ma50 | |
| 270 | 35.*50 | 0.1 | 1.0 | lws401m5b271ma50 | |
| 330 | 35*60 | 0.1 | 1.2 | lws401m5b331ma60 | |
| 390 | 35*60 | 0.1 | 1.3 | lws401m5b391ma60 | |
| 470 | 35*80 | 0.1 | 1.4 | lws401m5b471ma80 | |
| 560 | 35*80 | 0.15 | 1.4 | lws401m5b561ma80 | |
| 680 | 35*100 | 0.15 | 1.7 | lws401m5b681maa0 | |
| 820 | 35*120 | 0.15 | 2.0 | lws401m5b821mac0 | |
| 1000 | 50*80 | 0.15 | 2.2 | lws401m5c102mc80 | |
| 1200 | 50*100 | 0.15 | 2.7 | lws401m5c122mca0 | |
| 1500 | 50*120 | 0.15 | 3.3 | lws401m5c152mcc0 | |
| 2200 | 50*120 | 0.15 | 3.3 | lws401m5c222mda0 | |
| 3300 | 63.5*100 | 0.15 | 4.2 | lws401m5c332mdc0 | |
| 4700 | 63.5*120 | 0.15 | 5.5 | lws401m5c472med0 | |
| 5600 | 89*140 | 0.15 | 9.4 | lws401m5c562mfe0 | |
| 6800 | 89*140 | 0.15 | 10.4 | lws401m5c682mfe0 | |
| 450v |
1000 |
50*75 |
0.15 |
5.0 |
lws451m5c102mc75 |
|
1200 |
50*96 |
0.15 |
6.0 |
lws451m5c122mc96 |
|
|
1500 |
50*115 |
0.15 |
7.2 |
lws451m5c152mcb5 |
|
|
1800 |
50*130 |
0.15 |
8.3 |
lws451m5c182mcd0 |
|
|
2200 |
63.5*96 |
0.15 |
9.0 |
lws451m5c222md96 |
|
|
2700 |
63.5*115 |
0.15 |
10.7 |
lws451m5c272mdb5 |
|
|
3300 |
63.5*130 |
0.15 |
12.4 |
lws451m5c332mdd0 |
|
|
3900 |
63.5*155 |
0.15 |
14.5 |
lws451m5c392mdf5 |
|
|
76.2*115 |
0.15 |
13.6 |
lws451m5c392meb5 |
||
|
4700 |
63.5*190 |
0.15 |
17.5 |
lws451m5c472mdk0 |
|
|
76.2*130 |
0.15 |
15.6 |
lws451m5c472med0 |
||
|
5600 |
76.2*155 |
0.15 |
18.3 |
lws451m5c562mef5 |
|
|
6800 |
89*155 |
0.15 |
21.4 |
lws451m5c682mff5 |
|
|
8200 |
89*155 |
0.15 |
23.5 |
lws451m5c822mff5 |
|
|
10000 |
89*190 |
0.15 |
28.3 |
lws451m5c103mfk0 |
|
|
12000 |
89*220 |
0.15 |
33.6 |
lws451m5c123mfn0 |
◆ rted ripple current muiers
the ripple frequency and standard list of the specified value is not at the same time, please use the value is less than the following
|
rated voltage |
ød |
frequency（hz） |
|||||
|
50 |
120 |
300 |
1k |
10k |
50k |
||
|
10～50 |
ø35～ø89 |
0.95 |
1.00 |
1.03 |
1.05 |
1.09 |
1.12 |
|
63～80 |
ø50～ø89 |
||||||
|
100 |
ø63.5～ø89 |
||||||
|
63～80 |
ø35 |
0.90 |
1.00 |
1.06 |
1.10 |
1.18 |
1.22 |
|
100 |
ø50 |
||||||
|
100 |
ø35 |
0.82 |
1.00 |
1.12 |
1.22 |
1.3 |
1.33 |
|
160～250 |
ø76.2、ø89 |
||||||
|
160～250 |
ø50、ø63.5 |
0.81 |
1.00 |
1.14 |
1.26 |
1.36 |
1.41 |
|
160～250 |
ø35 |
0.80 |
1.00 |
1.19 |
1.34 |
1.46 |
1.52 |
|
315～400 |
ø35～ø89 |
||||||
note : the endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with
every 5 to 10℃ rise. when long life performance is required in actual use, the rms ripple current has to be reduced. als
shenzhen qingyou electronics co., ltd. 足球看盘软件 copyright
tel：0755-27299931 / qq：1498113525 / e-mail:
add：fuhai science and technology industrial park, fuyong town, shenzhen
keywords： aluminum electrolytic capacitor, electrolytic capacitor manufacturer d-u-n-s number: 420674259
download
