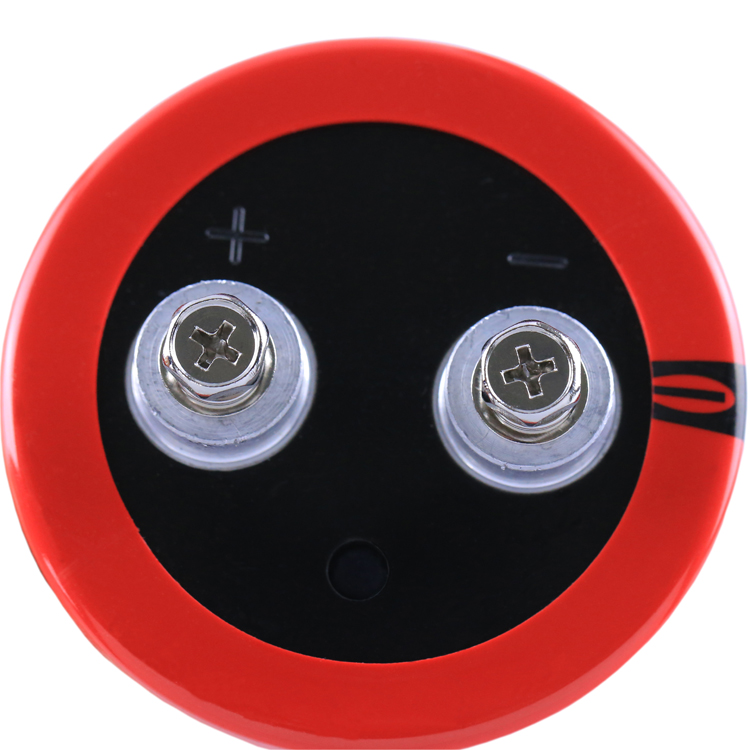

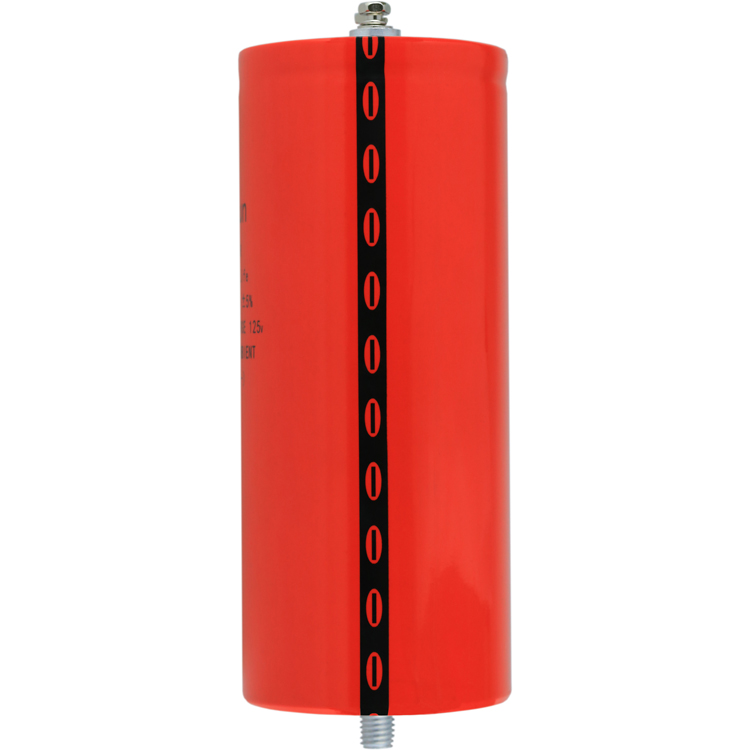

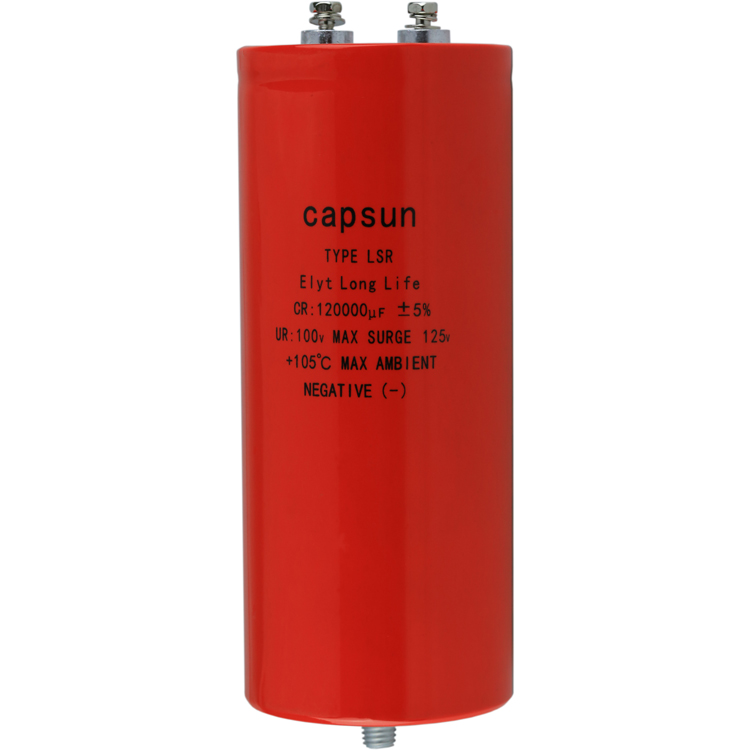

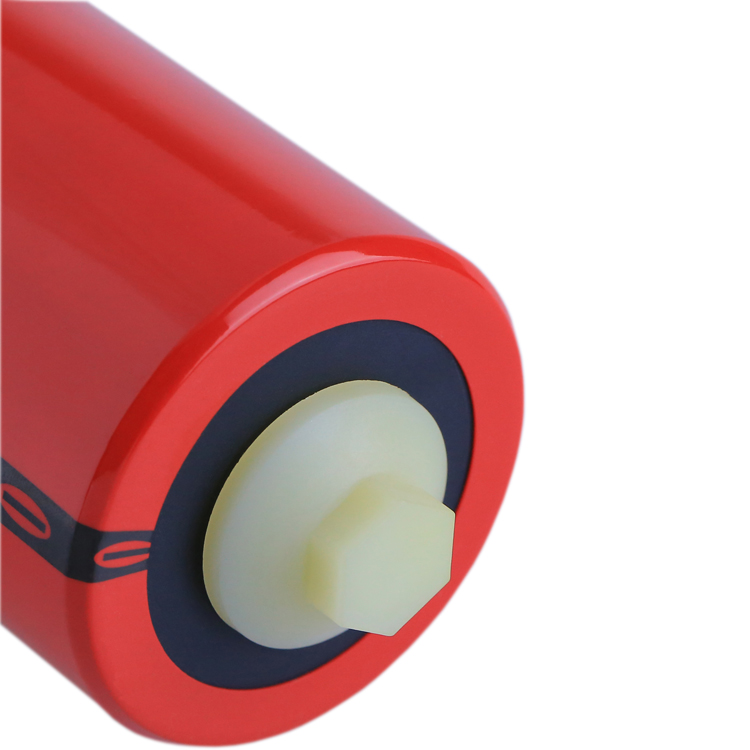

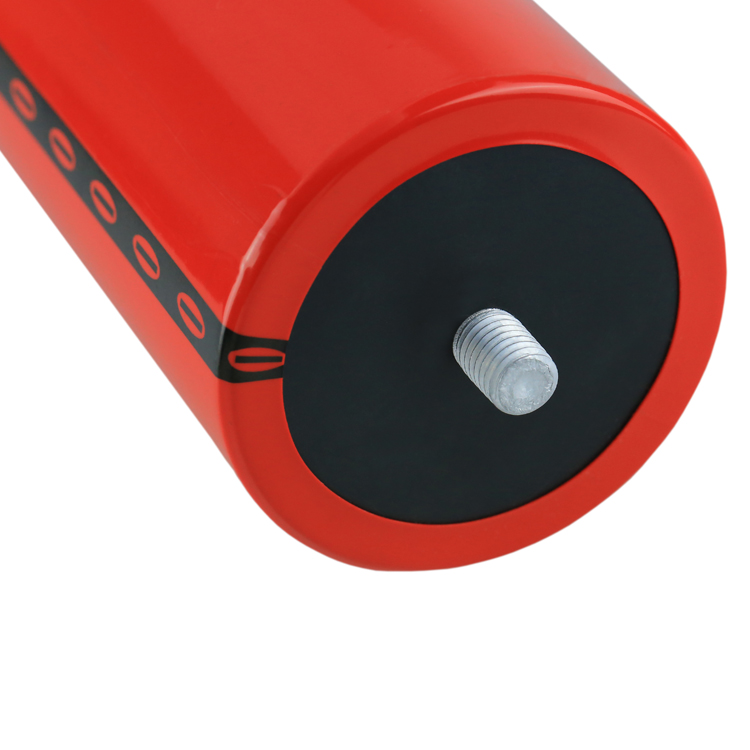

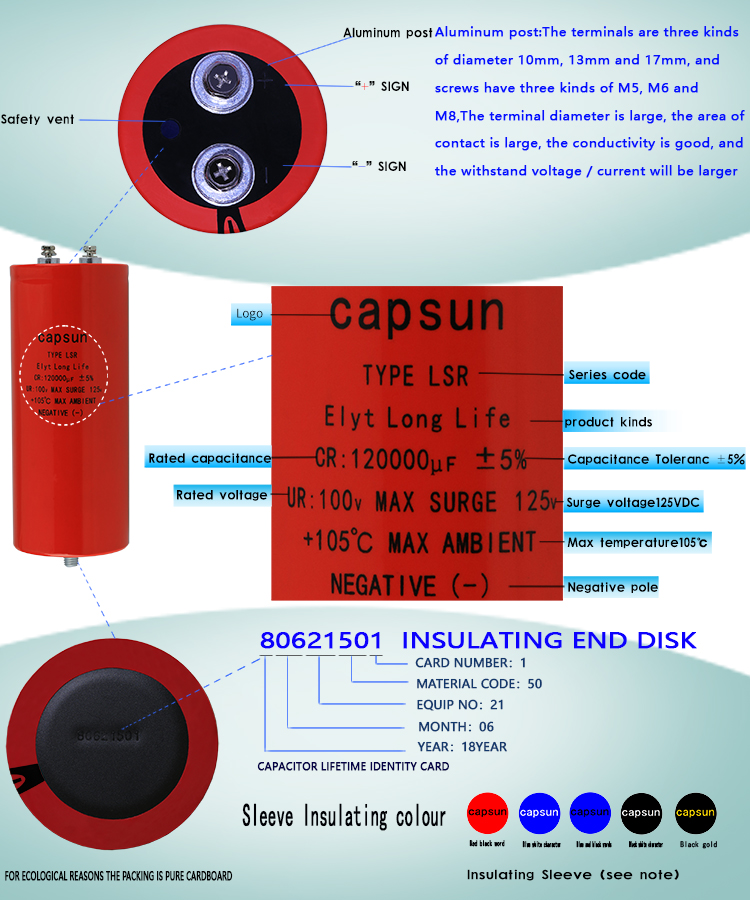

standard aluminum electrolytic capacitor-足球看盘软件
series：
sort：
category：
rated voltage range（vdc）：

download

working cap temperature. standard life(hours)
detailed
specification

105℃ 12000hours

items

characteristics

category temperature range

-40～ 105℃（16-450_vdc）

rated voltage range

16～500_vdc

capacitance tolerance

± 20%（m） 20℃/120hz

leakage current

i=0.01cv or 5ma,whichever is smaller
i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)

dissipation factor（tanδ）

rated voltage（vdc）	16-50v	63v-80	100v～250v	315v～400v	420v～450v
tanδmax	0.35	0.25	0.15	0.15	0.20

max.reverse voltage / esl

2 v / 20 nh

low temperature characteristics

capacitance change c（-25℃）/c（ 20℃）≥0.7 20℃/120hz

insulation resistance

when measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500vdc, the insulation resistance shall not be less than 100mω

insulation withstanding voltage

when a voltage of 2,000vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage.。

endurance

the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 12,000 hours at 105℃。

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤200% of the initial specified value

leakage current

≤the initial specified value

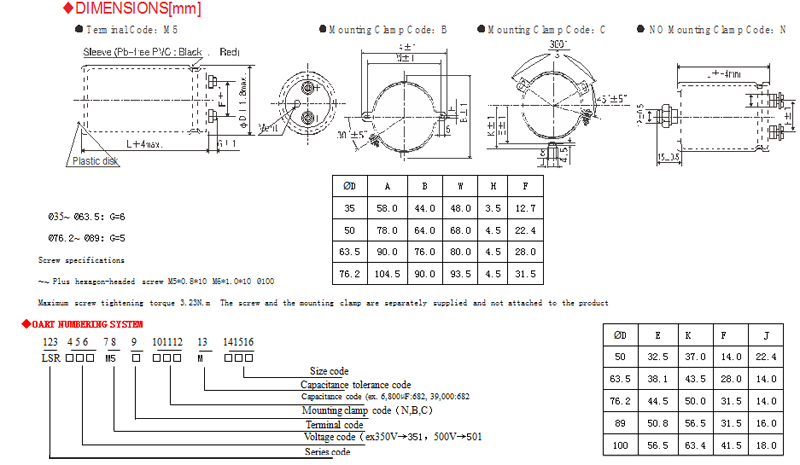

ød	e	k	f	j
50	32.5	37.0	14.0	22.4
63.5	38.1	43.5	28.0	14.0
76.2	44.5	50.0	31.5	14.0
89	50.8	56.5	31.5	16.0
100	56.5	63.4	41.5	18.0

shelf life

the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 85℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤150% of the initial specified value

leakage current

≤the initial specified value

srandrad ratings

wv	cap [μf]	case size ød x l [mm]	esr 120hz,20℃ [mω]	ripple current （ams/105℃,120hz）	par t no.
[vdc]	cap [μf]	case size ød x l [mm]	esr 120hz,20℃ [mω]	ripple current （ams/105℃,120hz）	par t no.
16v	82000	35*55	6	9	lsr160m5b823ka55
	120000	35*70	4	12	lsr160m5b124ka70
	120000	42*50	4	11.1	lsr160m5b124kv50
	150000	35*80	4	14.2	lsr160m5b154ka80
	150000	42*60	3	13.7	lsr160m5b154kv60
	180000	35*100	3	17	lsr160m5b184kaa0
	180000	42*70	3	15.8	lsr160m5b184kv70
	180000	42*80	3	15	lsr160m5b184kv80
	220000	42*90	2	19.1	lsr160m5b224kv90
	220000	50*70	2	17.7	lsr160m5b224kc70
	270000	42*105	2	21.1	lsr160m5b274kva5
	270000	50*80	2	20.6	lsr160m5b274kc80
	390000	50*100	1	27	lsr160m5b394kca0
	470000	65*80	1	35.6	lsr160m6c474kd80
	560000	65*100	1	42.1	lsr160m6c564kda0
	820000	65*130	1	56.5	lsr160m6c824kdd0
	820000	76*100	1	44.1	lsr160m6c824kea0
	1000000	76*115	1	46.5	lsr160m6ca5keb5
	1200000	76*145	1	50.8	lsr160m6cc5kee5
	1500000	76*170	1	53.5	lsr160m6c155ke70
	1800000	89*145	1	57.3	lsr160m6c185kfe5
	2200000	76*225	1	61	lsr160m6c225ken0
	2200000	89*170	1	60.4	lsr160m6c225kfh0
	2700000	89*220	1	67.1	lsr160m6c275kfn0
	3300000	89*230	1	68.3	lsr160m6c335kfm0
25v	33000	35*55	14	5.9	lsr250m5b333ka55
	47000	35*70	9	7.8	lsr250m5b473ka70
	47000	42*50	9	7.2	lsr250m5b473kv50
	56000	35*80	8	9	lsr250m5b563ka80
	68000	42*60	7	9.5	lsr250m5b683kv60
	68000	35*100	5	11.9	lsr250m5b683kaa0
	68000	42*70	7	10	lsr250m5b683kv70
	82000	42*80	5	10.5	lsr250m5b823kv80
	82000	42*90	7	11	lsr250m5b823kv90
	100000	50*70	4	12.3	lsr250m5b104kc70
	120000	42*105	4	14.6	lsr250m5b124kva5
	120000	50*80	4	14.2	lsr250m5b124kc80
	150000	50*100	3	17.3	lsr250m5b154kca0
	180000	65*80	3	22.4	lsr250m6c184kd80
	270000	65*100	2	29.8	lsr250m6c274kda0
	330000	76*100	1	28.5	lsr250m6c334kea0
	330000	65*130	1	36.4	lsr250m6c334kdd0
	390000	65*130	1	32.6	lsr250m6c394kdd0
	560000	76*145	1	42.7	lsr250m6c564kee5
	560000	76*170	1	45	lsr250m6c564ke70
	820000	89*145	1	58.2	lsr250m6c824kfe5
	820000	89*145	1	62	lsr250m6c824kfe5
	820000	89*170	1	61.5	lsr250m6c824kfh0
	1200000	89*220	1	82.6	lsr250m6cc5kfn0
	1500000	89*230	1	94	lsr250m6c155kfm0
35/40v	18000	35*55	21	4.7	lsr400m5b183ka55
	22000	42*50	17	5.3	lsr400m5b223kv50
	27000	35*70	14	6.4	lsr400m5b273ka70
	33000	35*80	12	6.4	lsr400m5b333ka80
	33000	42*60	12	7.2	lsr400m5b333kv60
	39000	35*100	10	8.9	lsr400m5b393kaa0
	39000	42*70	10	8.2	lsr400m5b393kv70
	39000	42*80	10	7.8	lsr400m5b393kv80
	56000	50*70	7	10	lsr400m5b563kc70
	56000	42*90	7	10.8	lsr400m5b563kv90
	68000	50*80	6	11.6	lsr400m5b683kc80
	68000	42*105	6	11.8	lsr400m5b683kva5
	82000	50*100	5	13.8	lsr400m5b823kca0
	100000	65*80	4	18.3	lsr400m6c104kd80
	150000	65*100	3	24.4	lsr400m6c154kda0
	180000	76*100	2	23.1	lsr400m6c184kea0
	180000	65*130	2	29.6	lsr400m6c184kdd0
	220000	76*115	2	26.9	lsr400m6c224keb5
	270000	76*145	1	32.6	lsr400m6c274kee5
	330000	76*170	1	38	lsr400m6c334ke70
	470000	89*145	1	48.5	lsr400m6c474kfe5
	470000	76*225	1	51.6	lsr400m6c474ken0
	560000	89*170	1	55.8	lsr400m6c564kfh0
	680000	89*220	1	68.3	lsr400m6c684kfn0
	680000	89*230	1	69.6	lsr400m6c684kfm0
50v	6800	35*50	38	2.5	lsr500m5b682ka50
	8200	35*50	33	2.8	lsr500m5b822ka50
	10000	42*40	22	3.1	lsr500m5b103kv40
	15000	42*50	18	3.3	lsr500m5b153kv50
	15000	35*60	16	3.4	lsr500m5b153ka60
	18000	42*60	14	6.1	lsr500m5b183kv60
	22000	42*70	10	6.5	lsr500m5b223kv70
	27000	50*70	8	8	lsr500m5b273kc70
	33000	42*100	7	7	lsr500m5b333kva0
	39000	50*90	7	10	lsr500m5b393kc90
	47000	65*70	4	13.1	lsr500m6c473kd70
	68000	65*85	4	16.5	lsr500m6c683kd85
	82000	76*90	3	17.1	lsr500m6c823ke90
	100000	65*120	3	22.1	lsr500m6c104kdc0
	120000	76*115	2	20.3	lsr500m6c124keb5
	150000	76*130	2	24.6	lsr500m6c154ked0
	180000	76*150	2	28.6	lsr500m6c184kef5
	220000	89*140	1	35.1	lsr500m6c224kfe0
	270000	76*220	1	38.8	lsr500m6c274ken0
	330000	89*200	1	48.6	lsr500m6c334kfo0
	390000	89*210	1	51.6	lsr500m6c394kfp0
	470000	89*230	1	56.5	lsr500m6c474kfm0
63v	8200	35*55	35	3.7	lsr630m5b822ka55
	12000	42*50	24	4.6	lsr630m5b123kv50
	15000	35*70	19	5.5	lsr630m5b153ka70
	18000	35*80	16	6.3	lsr630m5b183ka80
	18000	42*60	16	6.1	lsr630m5b183kv60
	18000	35*100	16	6.9	lsr630m5b183kaa0
	22000	42*70	13	7.1	lsr630m5b223kv70
	22000	42*80	13	6.8	lsr630m5b223kv80
	27000	50*70	11	8	lsr630m5b273kc70
	27000	42*105	11	8.6	lsr630m5b273kva5
	33000	50*80	9	9.3	lsr630m5b333kc80
	33000	42*105	9	9.5	lsr630m5b333kva5
	39000	50*100	7	11	lsr630m5b393kca0
	47000	65*80	6	14.5	lsr630m6c473kd80
	68000	65*100	4	19	lsr630m6c683kda0
	82000	76*100	3	18	lsr630m6c823kea0
	100000	65*130	3	25.5	lsr630m6c104kdd0
	120000	76*115	2	22.9	lsr630m6c124keb5
	150000	76*145	2	28.1	lsr630m6c154kee5
	180000	76*170	2	32.4	lsr630m6c184ke70
	220000	89*145	1	38.3	lsr630m6c224kfe5
	220000	76*225	1	40.8	lsr630m6c224ken0
	270000	89*170	1	44.8	lsr630m6c274kfh0
	330000	89*220	1	54.9	lsr630m6c334kfn0
	390000	89*230	1	60.9	lsr630m6c394kfm0
80v	6800	35*55	47	3.2	lsr800m5b682ka55
	8200	42*50	39	3.8	lsr800m5b822kv50
	10000	35*70	32	4.2	lsr800m5b103ka70
	12000	35*80	27	4.6	lsr800m5b123ka80
	12000	42*60	27	4.7	lsr800m5b123kv60
	15000	35*100	21	6	lsr800m5b153kaa0
	15000	42*70	21	5.6	lsr800m5b153kv70
	15000	42*80	21	5.3	lsr800m5b153kv80
	18000	42*90	18	6.2	lsr800m5b183kv90
	18000	50*70	18	6.2	lsr800m5b183kc70
	22000	42*105	14	7.9	lsr800m5b223kva5
	22000	50*80	14	7.2	lsr800m5b223kc80
	27000	50*100	12	8.7	lsr800m5b273kca0
	39000	65*80	8	12.6	lsr800m6c393kd80
	47000	65*100	7	15	lsr800m6c473kda0
	68000	65*130	5	15.7	lsr800m6c683kdd0
	68000	76*100	5	19.7	lsr800m6c683kea0
	82000	76*115	4	18	lsr800m6c823keb5
	100000	76*145	3	21.7	lsr800m6c104kee5
	120000	76*170	3	25.1	lsr800m6c124ke70
	150000	89*145	2	30	lsr800m6c154kfe5
	180000	76*2225	2	35	lsr800m6c184ken0
	180000	89*170	2	34.3	lsr800m6c184kfh0
	220000	89*220	1	42.6	lsr800m6c224kfn0
	270000	89*230	1	48	lsr800m6c274kfm0
100v	3300	35*55	48	3.1	lsr101m5b332ka55
	4700	35*70	34	4.1	lsr101m5b472ka70
	4700	42*55	34	3.8	lsr101m5b472kv55
	5600	35*80	28	4.7	lsr101m5b562ka80
	5600	42*70	28	4.6	lsr101m5b562kv70
	6800	35*70	23	5.7	lsr101m5b682kaa0
	6800	42*70	23	5.3	lsr101m5b682kv70
	8200	42*80	19	5.5	lsr101m5b822kv80
	10000	50*70	16	6.5	lsr101m5b103kc70
	10000	42*105	16	7.1	lsr101m5b103kva5
	12000	42*120	13	7.7	lsr101m5b123kvc0
	12000	50*80	13	7.5	lsr101m5b123kc80
	15000	50*100	11	9.2	lsr101m5b153kca0
	18000	65*80	9	12.1	lsr101m6c183kd80
	22000	65*100	7	14.5	lsr101m6c223kda0
	27000	76*100	6	13.9	lsr101m6c273kea0
	33000	65*130	5	19.6	lsr101m6c333kdd0
	39000	76*145	4	17.6	lsr101m6c393keb5
	47000	76*145	3	21.1	lsr101m6c473kee5
	56000	76*170	3	24.2	lsr101m6c563ke70
	68000	89*145	2	28.6	lsr101m6c683kfe5
	82000	76*225	2	33.4	lsr101m6c823ken0
	82000	89*170	2	33.1	lsr101m6c823kfh0
	120000	89*220	1	44.5	lsr101m6c124kfn0
	120000	89*230	1	45.3	lsr101m6c124kfm0
160v	1800	35*55	62	2.8	lsr161m5b182ka55
	2200	35*70	51	3.4	lsr161m5b222ka70
	2200	42*55	51	3.1	lsr161m5b222kv55
	2700	35*80	41	3.9	lsr161m5b272ka80
	3300	42*70	34	4.2	lsr161m5b332kv70
	3900	35*100	29	5.2	lsr161m5b392kaa0
	3900	42*80	29	4.6	lsr161m5b392kv80
	4700	42*100	24	5.4	lsr161m5b472kva0
	4700	50*70	24	5.7	lsr161m5b472kc70
	5600	50*80	20	6.1	lsr161m5b562kc80
	6800	42*105	16	6.9	lsr161m5b682kva5
	8200	50*100	14	8.1	lsr161m5b822kca0
	8200	65*80	14	9.7	lsr161m6c822kd80
	12000	65*100	9	12.8	lsr161m6c123kda0
	18000	65*130	6	13.7	lsr161m6c183kdd0
	18000	76*100	6	17.1	lsr161m6c183kea0
	18000	76*115	6	14.3	lsr161m6c183keb5
	27000	76*145	4	19.1	lsr161m6c273kee5
	27000	76*170	4	20.1	lsr161m6c273ke70
	39000	89*145	3	25.9	lsr161m6c393kfe5
	47000	76*225	2	30.2	lsr161m6c473ken0
	47000	89*170	2	30	lsr161m6c473kfh0
	56000	89*220	2	36.3	lsr161m6c563kfn0
	68000	89*230	2	40.7	lsr161m6c683kfm0
200v	1500	35*50	63	2.8	lsr201m5b152ka50
	1800	35*70	52	2.6	lsr201m5b182ka70
	2200	42*70	41	3.1	lsr201m5b222kv70
	2700	42*70	33	4.1	lsr201m5b272kv70
	3300	42*100	27	4.5	lsr201m5b332kva0
	3900	50*60	28	5	lsr201m5b392kc60
	4700	50*80	14	5.2	lsr201m5b472kc80
	5600	50*90	16	7	lsr201m5b562kc90
	6800	65*70	16	8.2	lsr201m6c682kd70
	8200	65*90	11	10.3	lsr201m6c822kd90
	10000	65*105	10	11.1	lsr201m6c103kda5
	12000	65*120	7	11.6	lsr201m6c123kdc0
	15000	76*105	5	12.6	lsr201m6c153kea5
	18000	76*130	4	14.2	lsr201m6c183ked0
	22000	76*145	4	19.3	lsr201m6c223kee5
	27000	76*190	3	21.6	lsr201m6c273kek0
	39000	89*200	2	26.3	lsr201m6c393kfo0
	47000	89*230	1	28.8	lsr201m6c473kfm0
250v	1200	35*55	80	2.4	lsr251m5b122ka55
	1500	35*70	64	3	lsr251m5b152ka70
	1500	42*55	64	2.8	lsr251m5b152kv55
	1800	35*80	53	3.5	lsr251m5b182ka80
	1800	42*70	53	3.3	lsr251m5b182kv70
	2200	42*80	43	4.1	lsr251m5b222kv80
	2700	35*100	35	4.4	lsr251m5b272kaa0
	2700	42*80	35	4.1	lsr251m5b272kv80
	3300	42*90	29	4.9	lsr251m5b332kv90
	3300	50*70	29	5.2	lsr251m5b332kc70
	3900	50*80	24	5.5	lsr251m5b392kc80
	3900	42*105	24	5.7	lsr251m5b392kva5
	5600	50*100	17	5.7	lsr251m5b562kca0
	5600	65*80	17	7.2	lsr251m6c562kd80
	8200	65*100	12	8.7	lsr251m6c822kda0
	10000	65*120	12	11.4	lsr251m6c103kdc0
	12000	76*100	8	12.1	lsr251m6c123kea0
	15000	76*115	6	14.1	lsr251m6c153keb5
	18000	76*115	6	14.1	lsr251m6c183keb5
	18000	76*145	5	16.8	lsr251m6c183kee5
	27000	76*170	5	17.7	lsr251m6c273ke70
	27000	89*145	4	23.2	lsr251m6c273kfe5
	33000	76*225	4	24.5	lsr251m6c333ken0
	39000	89*220	2	32.7	lsr251m6c393kfn0
	39000	89*230	2	33.3	lsr251m6c393kfm0
350v	680	35*88	141	1.8	lsr351m5b680ka55
	1000	35*70	96	2.3	lsr351m5b102ka70
	1200	42*55	80	2.8	lsr351m5b122kv55
	1200	35*80	80	2.7	lsr351m5b122ka80
	1500	35*100	64	3	lsr351m5b152kaa0
	1500	42*80	64	3.4	lsr351m5b152kv80
	1800	42*90	53	3.6	lsr351m5b182kv90
	1800	50*70	53	3.8	lsr351m5b182kc70
	2200	50*80	43	4.2	lsr351m5b222kc80
	2200	42*105	43	4.3	lsr351m5b222kva5
	2700	50*100	35	5	lsr351m5b272kca0
	3900	65*80	24	7.2	lsr351m6c392kd80
	4700	65*100	20	8.6	lsr351m6c472kda0
	5600	76*100	17	8.2	lsr351m6c562kea0
	6800	65*130	14	11.5	lsr351m6c682kdd0
	6800	76*115	14	9.5	lsr351m6c682keb5
	8200	76*145	12	11.4	lsr351m6c822kee5
	10000	76*170	10	13.2	lsr351m6c103ke70
	12000	89*145	8	15.5	lsr351m6c123kfe5
	15000	76*225	6	18.4	lsr351m6c153ken0
	15000	89*170	6	18.3	lsr351m6c153kfh0
	18000	89*200	5	22.2	lsr351m6c183kfo0
	22000	89*230	5	22.6	lsr351m6c223kfm0
400v	560	35*55	227	1.4	lsr401m5b560ka55
	680	42*55	187	1.7	lsr401m5b680kv55
	820	35*70	155	1.8	lsr401m5b820ka70
	1000	35*80	127	2.2	lsr401m5b102ka80
	1000	42*70	127	2.2	lsr401m5b102kv80
	1200	35*100	106	2.5	lsr401m5b122kaa0
	1200	42*80	106	2.4	lsr401m5b122kv80
	1500	42*90	85	2.8	lsr401m5b152kv90
	1500	50*70	85	3	lsr401m5b152kc70
	1800	50*80	71	3.3	lsr401m5b182kc80
	1800	42*105	71	3.3	lsr401m5b182kva5
	2200	50*100	58	3.9	lsr401m5b222kca0
	3300	65*80	39	5.8	lsr401m6c332kd80
	3900	65*100	33	6.8	lsr401m6c392kda0
	4700	65*120	30	6.8	lsr401m6c472kdc0
	5600	76*100	23	8.9	lsr401m6c562kea0
	6800	76*115	19	8.2	lsr401m6c682keb5
	8200	76*145	16	9.8	lsr401m6c822kee5
	10000	76*170	13	11.4	lsr401m6c103ke70
	12000	89*145	11	13.4	lsr401m6c123kfe5
	15000	76*225	8	16	lsr401m6c153ken0
	15000	89*170	8	15.8	lsr401m6c153kfh0
	18000	89*220	7	19.2	lsr401m6c183kfn0
	22000	89*230	7	22.1	lsr401m6c223kfm0
450v	470	35*55	237	1.4	lsr451m5b470ka55
	560	35*70	199	1.7	lsr451m5b560ka70
	560	42*55	199	1.7	lsr451m5b560kv55
	680	35*80	164	1.7	lsr451m5b680ka80
	820	42*70	136	2	lsr451m5b820kv70
	820	35*100	136	2.1	lsr451m5b820kaa0
	1000	42*80	111	2.2	lsr451m5b102kv80
	1000	42*70	111	2.4	lsr451m5b102kv70
	1200	42*90	93	2.9	lsr451m5b122kv90
	1500	50*80	74	3.2	lsr451m5b152kc80
	1500	42*105	74	3.3	lsr451m5b152kva5
	1800	50*100	62	3.8	lsr451m5b182kca0
	2200	65*80	51	5	lsr451m6c222kd80
	2700	65*100	41	6.1	lsr451m6c272kda0
	3900	65*130	29	8.1	lsr451m6c392kdd0
	3900	76*100	29	6.3	lsr451m6c392kea0
	4700	76*115	24	7.3	lsr451m6c472keb5
	5600	76*145	20	8.7	lsr451m6c562kee5
	6800	76*170	16	10.1	lsr451m6c682ke70
	8200	89*145	14	11.9	lsr451m6c822kfe5
	10000	76*225	11	13.9	lsr451m6c103ken0
	12000	89*170	9	15.1	lsr451m6c123kfh0
	15000	89*210	7	18.8	lsr451m6c153kfp0
	18000	89*230	5	19.1	lsr451m6c183kfm0
500v	390	35*55	286	1.3	lsr501m5b390ka55
	470	42*55	237	1.5	lsr501m5b470kv55
	560	35*70	199	1.7	lsr501m5b560ka70
	680	35*80	164	2	lsr501m5b680ka80
	680	42*60	164	1.9	lsr501m5b680kv60
	820	35*100	136	2.2	lsr501m5b820kaa0
	820	42*70	136	2.1	lsr501m5b820kv70
	1000	50*70	111	2.7	lsr501m5b102kc70
	1200	42*90	93	2.7	lsr501m5b122kv90
	1200	50*80	93	2.8	lsr501m5b122kc80
	1500	50*90	60	3.5	lsr501m5b152kc90
	2200	65*80	51	5	lsr501m6c222kd80
	2700	65*100	41	6.1	lsr501m6c272kda0
	3300	76*100	34	7.3	lsr501m6c332kea0
	3900	65*130	29	6.4	lsr501m6c392kdd0
	4700	76*115	24	7.3	lsr501m6c472keb5
	5600	76*145	20	8.7	lsr501m6c562kee5
	6800	76*170	16	10.1	lsr501m6c682ke70
	8200	89*145	14	11.9	lsr501m6c822kfe5
	10000	76*220	11	13.9	lsr501m6c103ken0
	12000	76*230	9	15.1	lsr501m6c123kem0
	15000	89*200	7	18.8	lsr501m6c153kfo0
	15000	89*230	7	19.1	lsr501m6c153kfm0
	18000	89*230	5	20.3	lsr501m6c183kfm0

◆ rted ripple current muiers
● frequency multipliers

frequency（hz）	50	120	300	1k	3k	10k	50k
16～50vdc	0.95	1.00	1.03	1.05	-	1.09	1.12
63～80vdc	0.90	1.00	1.06	1.10	-	1.18	1.22
100～250vdc	0.80	1.00	1.12	1.22	-	1.30	1.33
350～500vdc	0.80	1.00	1.20	1.50	1.60	-	-

※note : the endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime
with every 5 to 10℃ rise. when long life performance is required in actual use, the rms ripple current has to be reduced

prev standard aluminum electrolytic capacitor

standard aluminum electrolytic capacitor next
